Genuine VN Kawasaki Parts delivered quickly!


REAR BRAKE

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

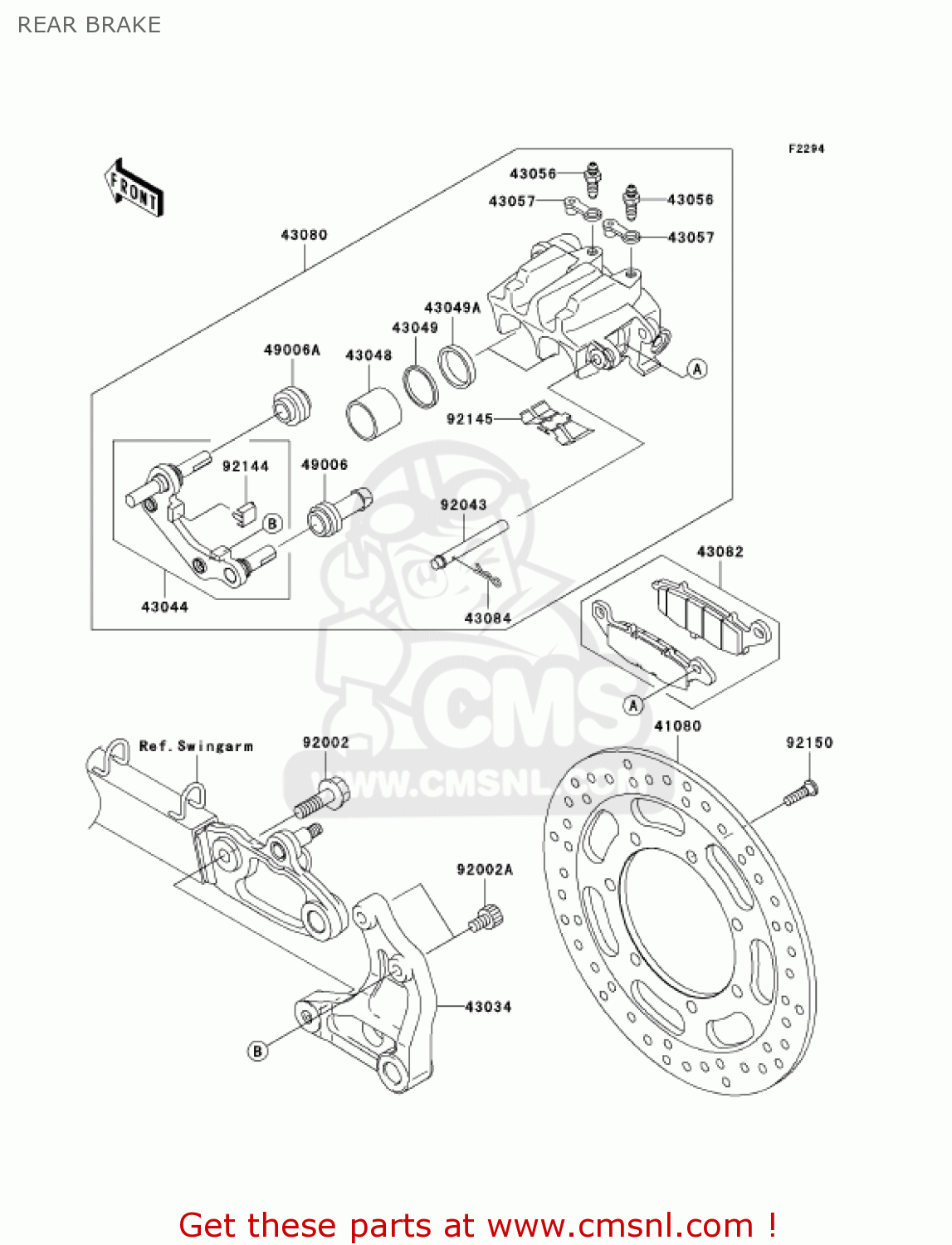

Rear brake diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

REAR BRAKE VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
REAR BRAKE VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
REAR BRAKE VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
41080
410801525CM
ref: 41080
DISC,RR,SILVER
€ 187.50
43034
430341178
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 101.00
43044
430441134
ref: 43044
HOLDER-COMP-CALIPER,R
430441134
€ 159.00
43048
430481094
ref: 43048
PISTON-CALIPER
430481094
€ 50.00
43049
430491068
ref: 43049
PACKING (NAS)
430491068
€ 6.50
43049A
430491092
ref: 43049A
PACKING (NAS)
430491092
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43080
430805098GN
ref: 43080
CALIPER-SUB-ASSY,RR,S
430805098GN
€ 354.50
43082
430821264
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821264
€ 57.50
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061094
ref: 49006
BOOT,CALIPER
490061094
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92002
920021510
ref: 92002
BOLT,FLANGED,12X40
920021510
€ 6.50
92002A
920021713
ref: 92002A
BOLT,SOCKET,10X17
920021713
€ 4.50
92043
920431640
ref: 92043
PIN,PAD
920431640
€ 4.50
92144
921441831
ref: 92144
SPRING,STOPPER
921441831
€ 3.50
92145
921451382
ref: 92145
SPRING,PAD
921451382
€ 12.50
92150
921501771
ref: 92150
BOLT
921501771
€ 3.00
