MUFFLER(S)(JKBVNKA1 4A010964-)

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

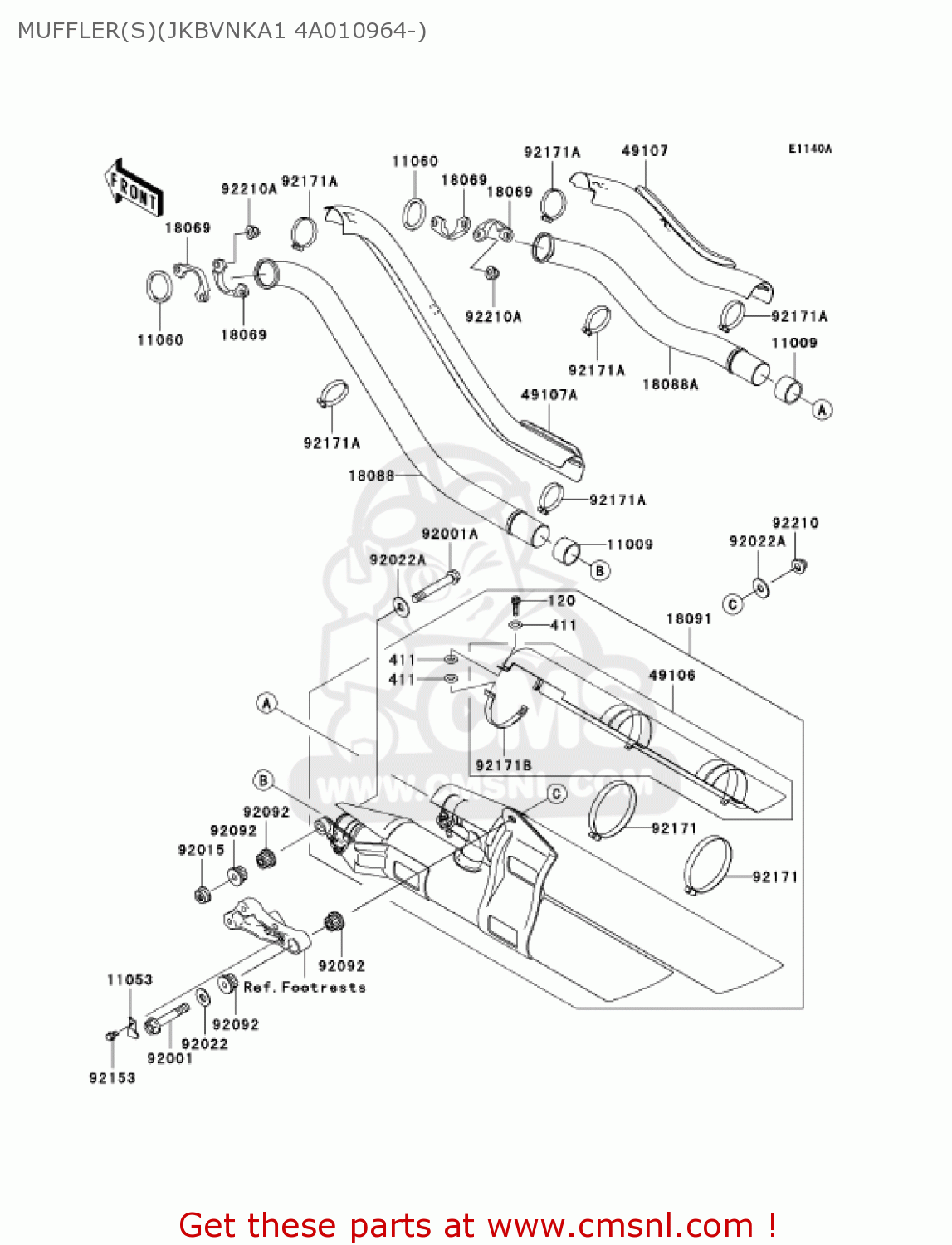

Muffler(s)(jkbvnka1 4a010964-) diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

MUFFLER(S)(JKBVNKA1 4A010964-) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
MUFFLER(S)(JKBVNKA1 4A010964-) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
MUFFLER(S)(JKBVNKA1 4A010964-) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120R0620
ref: 120
BOLT-SOCKET,6X20
120R0620
€ 2.50
411
411S0600
ref: 411
WASHER
411S0600
€ 1.00
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11053
110530267
ref: 11053
BRACKET
€ 1.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
18069
180691161
ref: 18069
HOLDER-EXHAUST PIPE
180691161
€ 27.00
18088
180881246
ref: 18088
PIPE-EXHAUST,FR
€ 364.00
18088A
180881247
ref: 18088A
PIPE-EXHAUST,RR
€ 244.50
18091
180910192
ref: 18091
BODY-COMP-MUFFLER
€ 718.50
49106
491060007
ref: 49106
COVER-MUFFLER
€ 146.50
49107
491070010
ref: 49107
COVER-EXHAUST PIPE,RR
€ 134.50
49107A
491070016
ref: 49107A
COVER-EXHAUST PIPE,FR
€ 189.00
92001
920011617
ref: 92001
BOLT,FLANGED,10X60
920011617
€ 6.50
92001A
920011618
ref: 92001A
BOLT,FLANGED,10X70
920011618
€ 7.00
92015
920151356
ref: 92015
NUT,10MM
920151356
€ 2.00
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
920221302
ref: 92022A
WASHER,10.5X30X2.3,BL
920221302
€ 4.50
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92153
921530381
ref: 92153
BOLT,6X10
€ 2.00
92171
921710048
ref: 92171
CLAMP
€ 12.00
92171A
921710072
ref: 92171A
CLAMP
921710072
€ 6.50
92171B
921710373
ref: 92171B
CLAMP
€ 12.00
92210
922101121
ref: 92210
NUT,CAP,10MM
922101121
€ 2.50
92210A
922101132
ref: 92210A
NUT,CAP,8MM
922101132
€ 2.50
