FENDERS (A3)

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

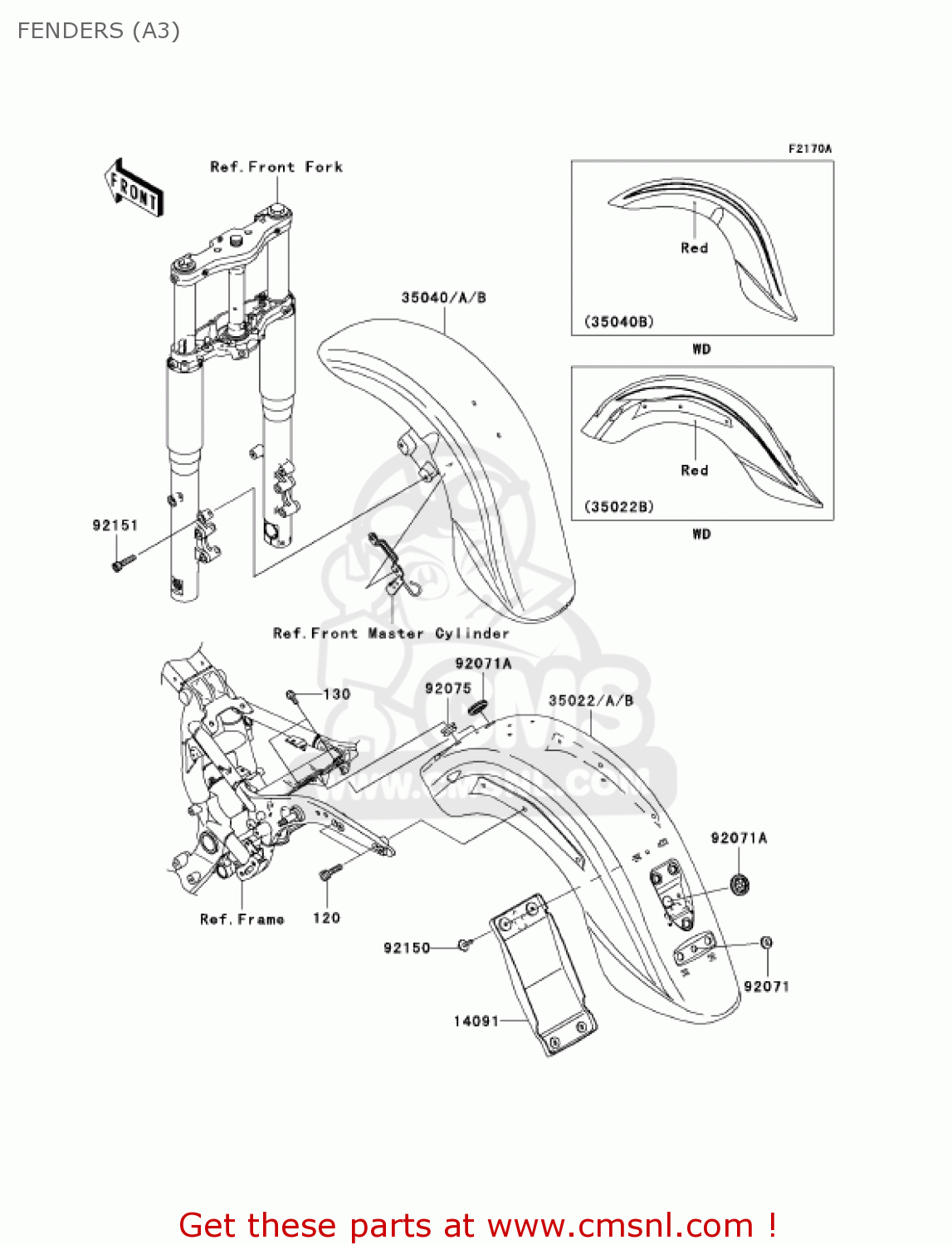

Fenders (a3) diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0830
ref: 120

BOLT-SOCKET,8X30,BLAC

€ 3.00

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

14091

140910370
ref: 14091

COVER,TAIL LAMP

€ 17.00

35022

350220022H8
ref: 35022

FENDER-COMP-REAR,EBONY

€ 835.50

35022A

350220022X8
ref: 35022A

FENDER-COMP-REAR,P.B.BEIGE

€ 549.00

35022B

350225160665
ref: 35022B

FENDER-COMP-REAR,M.M.RED

€ 617.00

35040

350400002H8
ref: 35040

FENDER-COMP-FRONT,EBO

€ 359.50

35040A

350400002X8
ref: 35040A

FENDER-COMP-FRONT,P.B

€ 359.50

35040B

350405004665
ref: 35040B

FENDER-COMP-FRONT,M.M

€ 394.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

920711265
ref: 92071A

GROMMET

€ 3.00

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 3.00

92150

921501689
ref: 92150

BOLT,FLANGED,6X14

€ 2.00

92151

921511535
ref: 92151

BOLT,SOCKET,8X35

€ 2.00

FENDERS (A3)

all assemblies
