SEAT

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

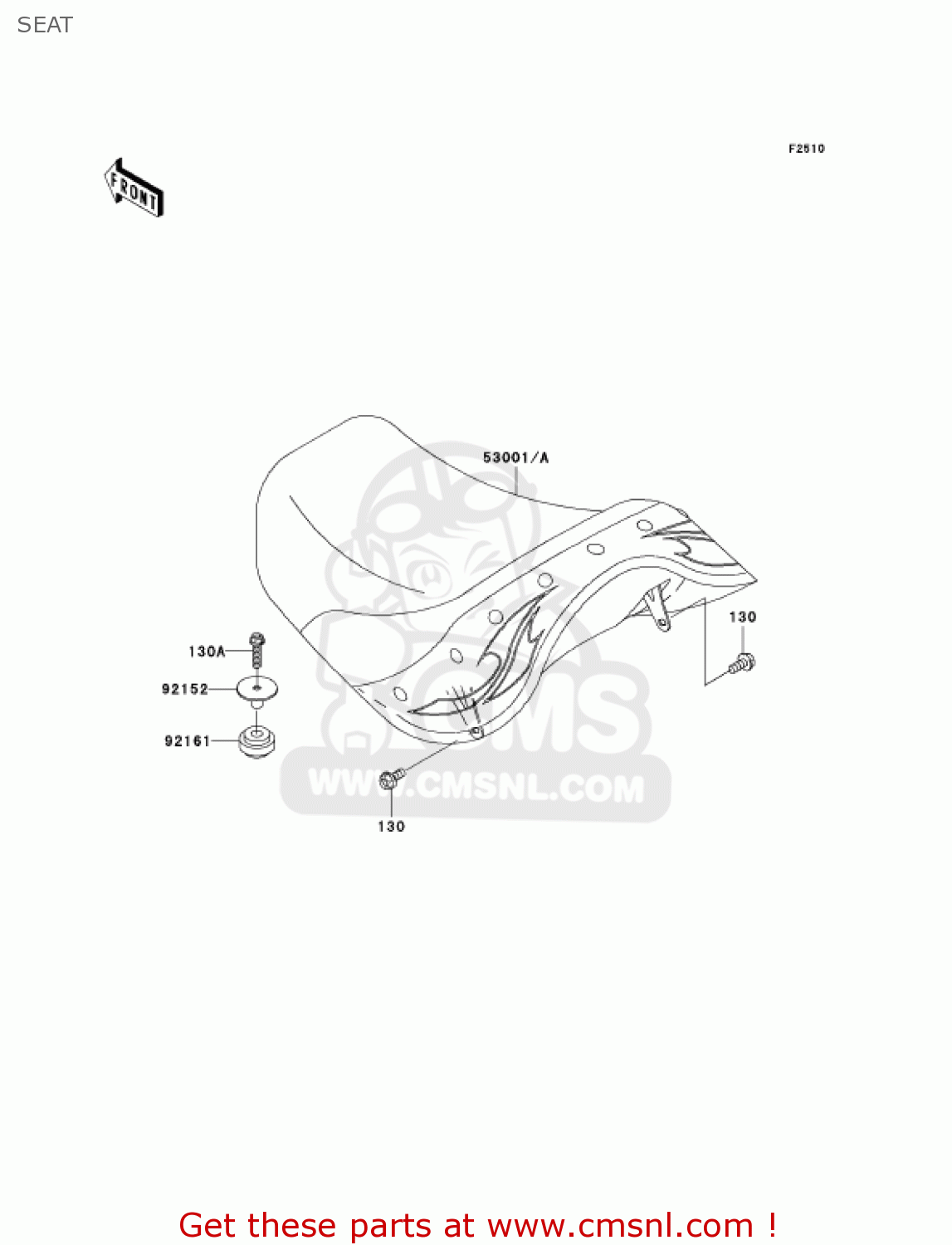

Seat diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

SEAT VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

SEAT VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

130A

130J0835
ref: 130A

BOLT-FLANGED,8X35,BLA

€ 2.50

53001

530011942MA
ref: 53001

SEAT-ASSY,BLACK

€ 584.00

92152

921521100
ref: 92152

COLLAR

€ 6.00

92161

921611157
ref: 92161

DAMPER

€ 4.00
