FUEL TANK (R2-R5)

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

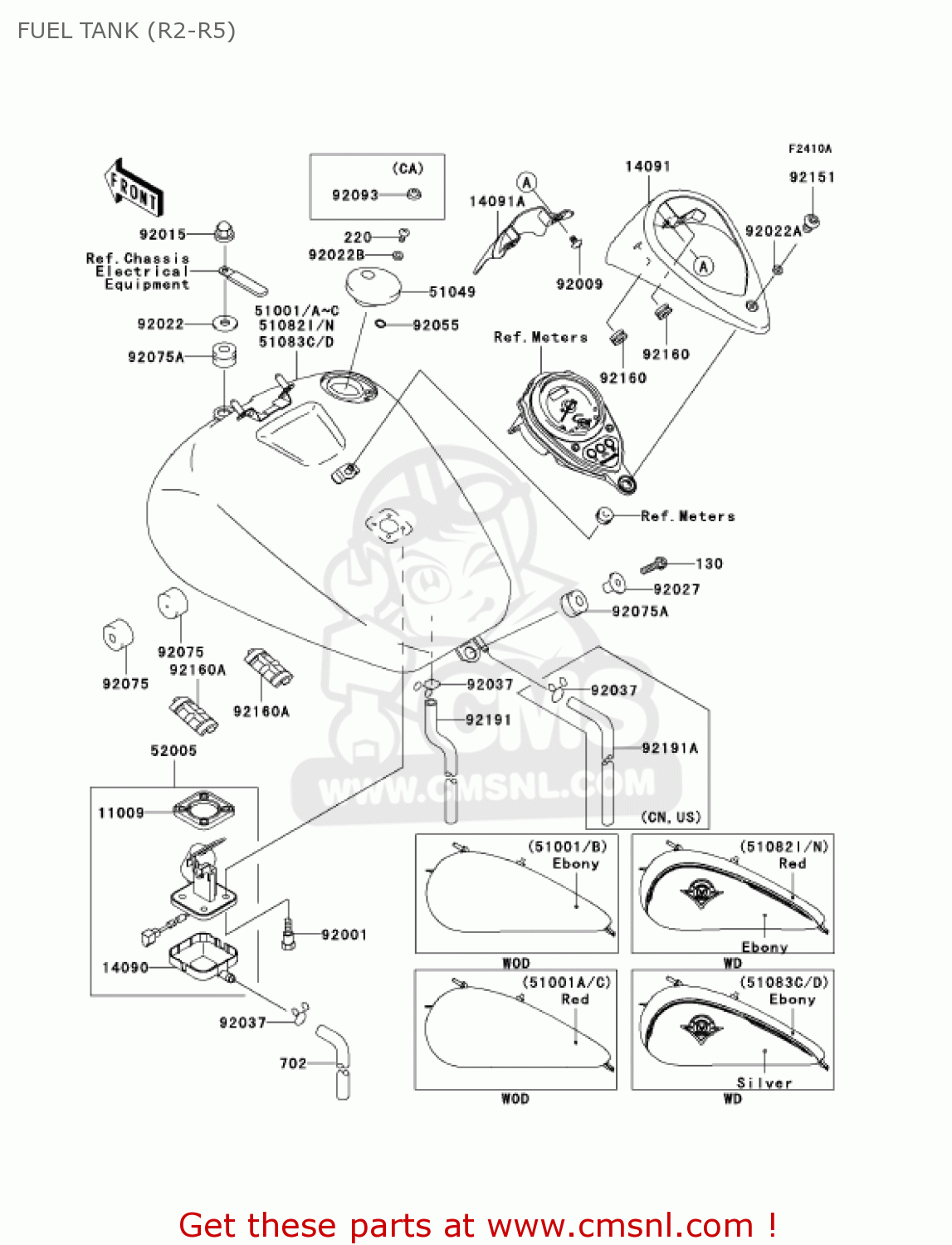

Fuel tank (r2-r5) diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

FUEL TANK (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
FUEL TANK (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
FUEL TANK (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091656
ref: 11009
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14090
140901624
ref: 14090
COVER,FUEL GAUGE
140901624
€ 11.50
14091
140911208
ref: 14091
COVER,METER
€ 140.50
14091A
140911301
ref: 14091A
COVER,METER,FR
140911301
€ 32.50
51001
510011570H8
ref: 51001
[CA]
TANK-COMP-FUEL,EBONY
€ 654.00
51001B
510011586H8
ref: 51001B
[CN,US
TANK-COMP-FUEL,EBONY
€ 654.00
51049
510490003
ref: 51049
CAP-TANK,FUEL
510490003
€ 98.50
51082I
510825088225
ref: 51082I
[CN,US
TANK-COMP-FUEL,EBONY/
€ 793.50
51082N
510825117225
ref: 51082N
[CA]
TANK-COMP-FUEL,EBONY/
€ 793.50
52005
520051138
ref: 52005
GAUGE,FUEL
€ 125.50
92001
920011705
ref: 92001
BOLT,FUEL GAGE
920011705
€ 2.50
130
130H0830
ref: 130
BOLT-FLANGED,8X30
130H0830
€ 1.00
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
702
702A07860
ref: 702
TUBE-RUBBER
702A07860
€ 9.50
92009
920091877
ref: 92009
SCREW,6X12
920091877
€ 1.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92022
920221345
ref: 92022
WASHER,8X26X2.3
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92022B
920221977
ref: 92022B
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037147
ref: 92037
[CA]
CLAMP,CHAIN OILER
92037147
€ 4.50
92037
92037147
ref: 92037
[CN,US
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551552
ref: 92055
RING-O
920551552
€ 2.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
920751736
€ 4.00
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
92151
921511449
ref: 92151
BOLT,SOCKET,6X10
921511449
€ 1.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92160A
921601907
ref: 92160A
DAMPER,FUEL TANK
921601907
€ 13.50
92191
921911272
ref: 92191
TUBE,DRAIN
€ 16.00
92191A
921911529
ref: 92191A
[CN,US
TUBE,5X10X650
€ 9.00
