FUEL INJECTION

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

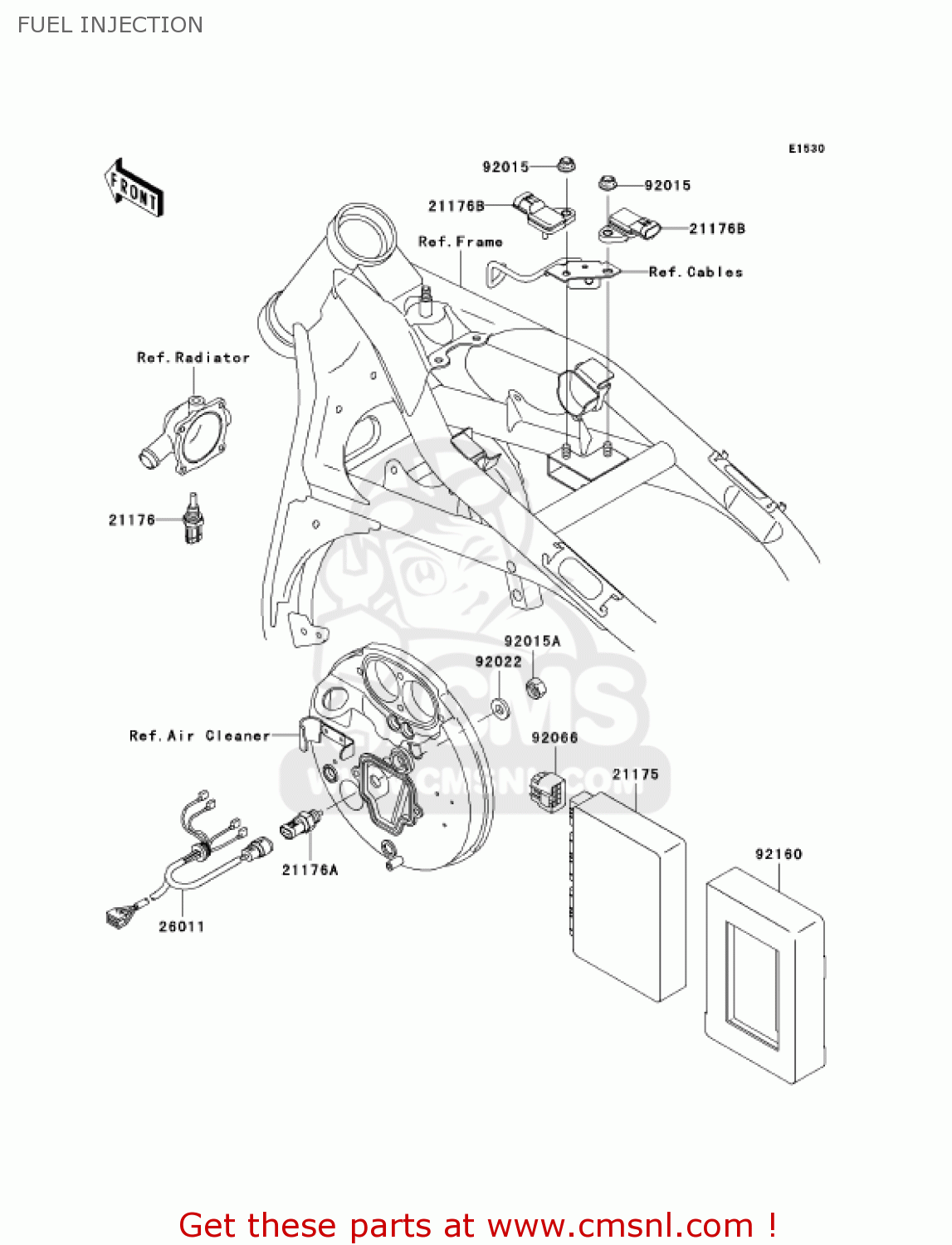

Fuel injection diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

21175

211751064
ref: 21175

CONTROL UNIT-ELECTRON

€ 1,282.50

21176

211761085
ref: 21176

SENSOR,WATER TEMPERAT

€ 52.50

21176A

211761086
ref: 21176A

SENSOR,AIR TEMPERATUR

€ 49.00

21176B

211761118
ref: 21176B

SENSOR IAPS

€ 123.50

26011

260111776
ref: 26011

WIRE-LEAD

€ 66.00

92015

920151386
ref: 92015

NUT,6MM

€ 3.00

92015A

920151395
ref: 92015A

NUT,12MM

€ 3.00

92022

92022269
ref: 92022

WASHER,PLAIN

€ 1.00

92066

920661521
ref: 92066

PLUG

€ 11.00

92160

921601965
ref: 92160

DAMPER

€ 17.50
