Genuine VN Kawasaki Parts delivered quickly!


MUFFLER(S)

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

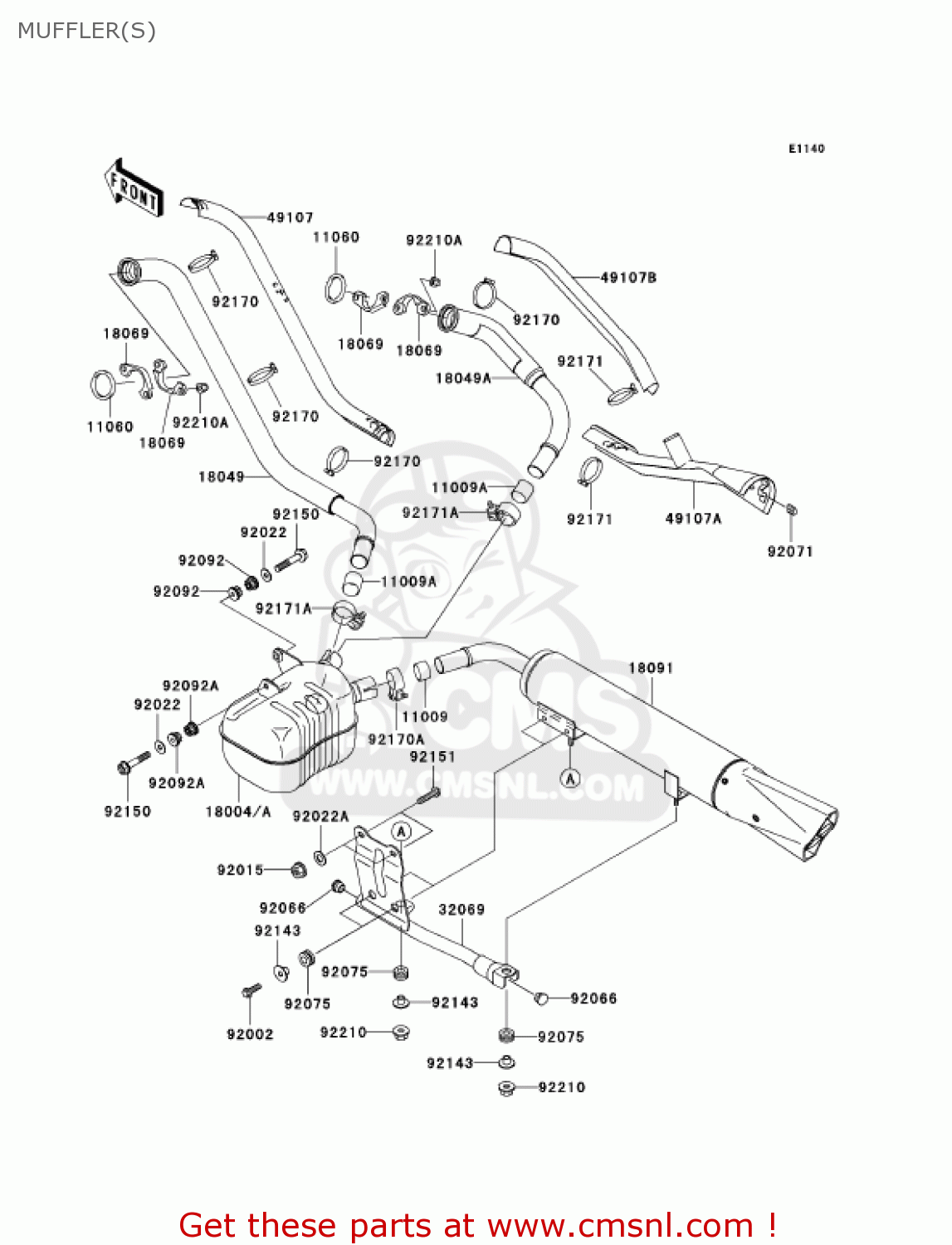

Muffler(s) diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

MUFFLER(S) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
MUFFLER(S) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
MUFFLER(S) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11009A
110091667
ref: 11009A
GASKET,EXHAUST PIPE C (NAS)
110091667
€ 15.00
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
18004
180041082
ref: 18004
[CA]
CHAMBER-PREMUFFLER
€ 1,001.00
18004A
180041084
ref: 18004A
[CN,US
PREMUFFLER CHAMBER
€ 401.00
18049
180491906
ref: 18049
PIPE-EXHAUST,FR
€ 308.50
18049A
180491907
ref: 18049A
PIPE-EXHAUST,RR
€ 214.50
18069
180691161
ref: 18069
HOLDER-EXHAUST PIPE
180691161
€ 27.00
18091
180910063
ref: 18091
BODY-COMP-MUFFLER
€ 475.00
32069
320691590
ref: 32069
BRACKET-MUFFLER
€ 65.00
49107
491071169
ref: 49107
COVER-EXHAUST PIPE,FR
€ 149.50
49107A
491071170
ref: 49107A
COVER-EXHAUST PIPE,FR
€ 267.00
49107B
491071171
ref: 49107B
COVER-EXHAUST PIPE,RR
€ 188.50
92002
920021591
ref: 92002
BOLT,FLANGED,8X25
920021591
€ 2.00
92015
920151397
ref: 92015
NUT,FLANGED,8MM
920151397
€ 2.50
92022
920221302
ref: 92022
WASHER,10.5X30X2.3,BL
920221302
€ 4.50
92022A
920221964
ref: 92022A
WASHER,8.2X18X1.5
920221964
€ 2.50
92066
920661520
ref: 92066
PLUG
920661520
€ 3.00
92071
920711270
ref: 92071
GROMMET
920711270
€ 5.00
92075
920751898
ref: 92075
DAMPER
920751898
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92092A
920921081
ref: 92092A
BUSHING-RUBBER
920921081
€ 17.50
92143
921431753
ref: 92143
COLLAR
921431753
€ 6.00
92150
921501749
ref: 92150
BOLT,10X55
921501749
€ 4.50
92151
921511580
ref: 92151
BOLT
€ 1.50
92170
921701964
ref: 92170
CLAMP
€ 7.00
92170A
921701994
ref: 92170A
CLAMP
€ 17.50
92171
921710059
ref: 92171
CLAMP
921710059
€ 5.50
92171A
921711152
ref: 92171A
CLAMP
€ 17.00
92210
922100076
ref: 92210
NUT,8MM
922100076
€ 3.50
92210A
922101132
ref: 92210A
NUT,CAP,8MM
922101132
€ 2.50
