CYLINDER/PISTON(S)

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

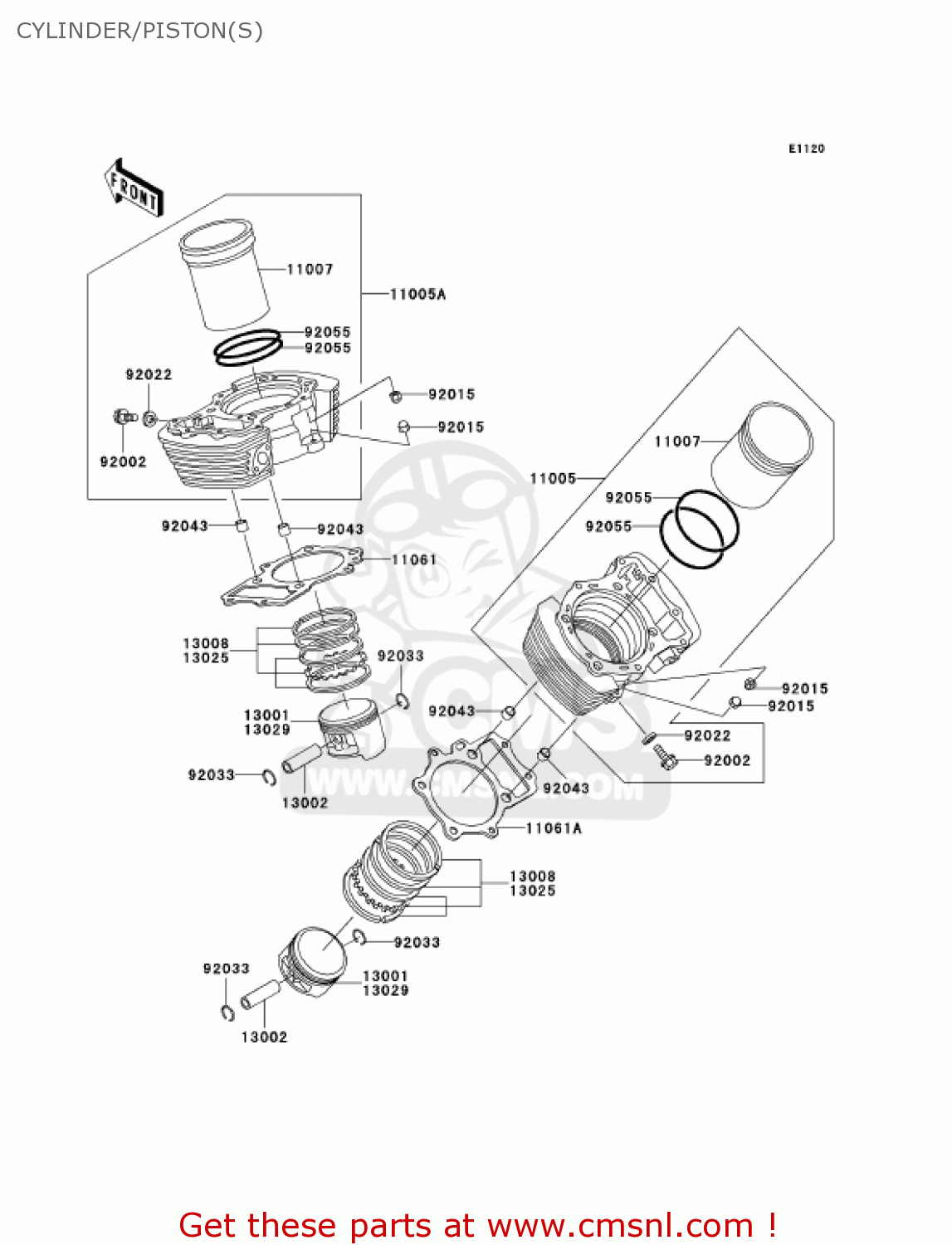

Cylinder/piston(s) diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110050008
ref: 11005

CYLINDER-ENGINE,RR

€ 837.50

11005A

110051863
ref: 11005A

CYLINDER-ENGINE,FR

€ 837.50

11007

110071176
ref: 11007

LINER-CYLINDER

€ 176.00

11061

110611083
ref: 11061

GASKET,CYLINDER BASE, (NAS)

€ 11.00

11061A

110611084
ref: 11061A

GASKET,CYLINDER BASE, (NAS)

€ 12.00

13001

130011617
ref: 13001

PISTON-ENGINE,STD

€ 173.00

13002

130021107
ref: 13002

PIN-PISTON

€ 26.50

13008

130081172
ref: 13008

RING-SET-PISTON,STD

€ 85.50

13025

130251081
ref: 13025

RING-SET-PISTON L,O/S

€ 101.50

13029

130291286
ref: 13029

PISTON-ENGINE L,O/S 0

€ 189.00

92002

920021569
ref: 92002

BOLT,6X12

€ 2.50

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92033

920331226
ref: 92033

RING-SNAP

€ 2.50

92043

920431608
ref: 92043

PIN

€ 3.00

92055

920551371
ref: 92055

RING-O,110.5X2.5

€ 7.00

CYLINDER/PISTON(S)
