OPTIONAL PARTS

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

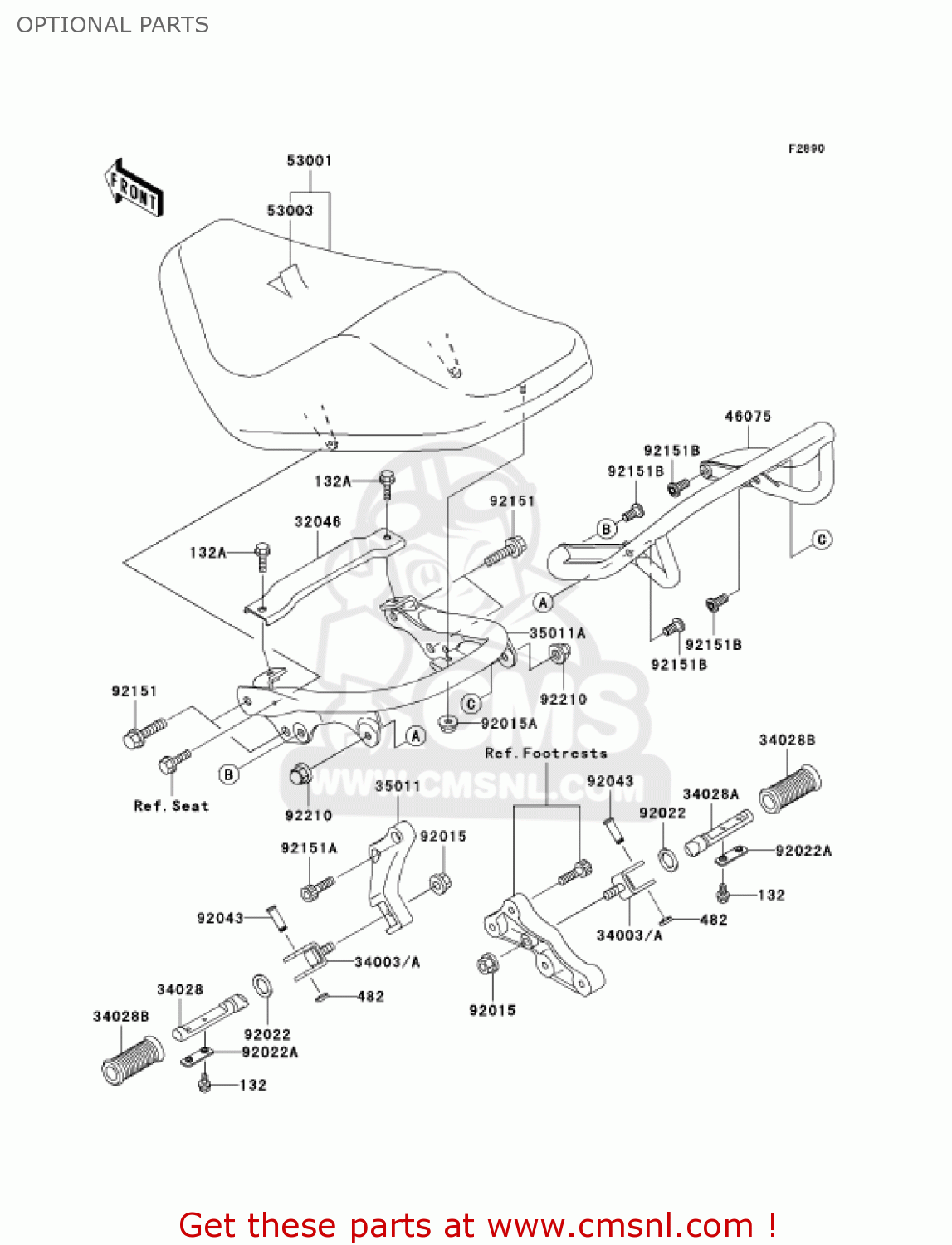

Optional parts diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

OPTIONAL PARTS VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
OPTIONAL PARTS VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
OPTIONAL PARTS VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0510
ref: 132
BOLT-FLANGED-SMALL
132J0510
€ 2.00
132A
132J0816
ref: 132A
BOLT-FLANGED-SMALL,8X
132J0816
€ 2.00
482
482L7000
ref: 482
CIRCLIP-TYPE-E
482L7000
€ 2.50
32046
320461478
ref: 32046
BRACKET-SEAT
€ 14.50
34003A
340031292
ref: 34003A
HOLDER-STEP,RR
340031292
€ 22.00
34028
340281219
ref: 34028
STEP,RR,LH
340281219
€ 78.00
34028A
340281220
ref: 34028A
STEP,RR,RH
340281220
€ 84.00
34028B
340281221
ref: 34028B
STEP,RR,RUBBER
340281221
€ 10.00
35011
350111770
ref: 35011
STAY,REAR STEP,LH
350111770
€ 71.00
35011A
350111968
ref: 35011A
STAY,SEAT
€ 184.50
46075
460751186
ref: 46075
GRIP
460751186
€ 134.00
53001
530011886MA
ref: 53001
SEAT-ASSY,DUAL,BLACK
€ 553.50
53003
530031431MA
ref: 53003
LEATHER,SEAT,BLACK
€ 196.00
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92015A
920151603
ref: 92015A
NUT
920151603
€ 3.00
92022
920221568
ref: 92022
WASHER,20X30X2.3
920221568
€ 2.50
92022A
920221874
ref: 92022A
WASHER,STEP
920221874
€ 4.00
92043
920431339
ref: 92043
PIN
920431339
€ 5.00
92151
921511440
ref: 92151
BOLT,FLANGED,10X18
921511440
€ 2.50
92151A
921511525
ref: 92151A
BOLT, SOCKET, 8X25
921511525
€ 2.00
92151B
921511577
ref: 92151B
BOLT
921511577
€ 2.00
92210
922101189
ref: 92210
NUT,CAP,10MM
922101189
€ 7.50
