GEAR CHANGE MECHANISM (R1-R3)

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

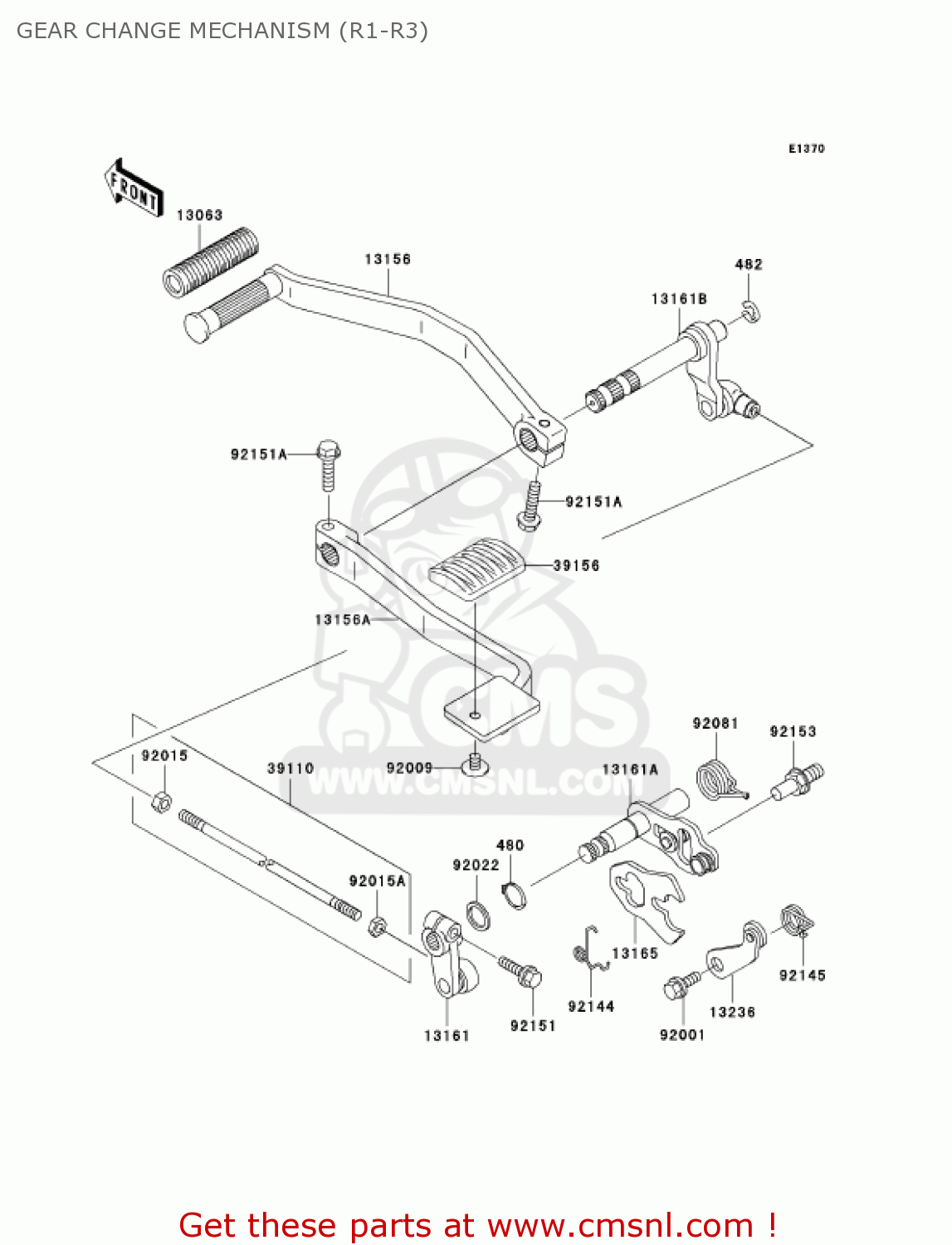

Gear change mechanism (r1-r3) diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM (R1-R3) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM (R1-R3) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM (R1-R3) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
482
482L0100
ref: 482
CIRCLIP-TYPE-E,10MM
482L0100
€ 0.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13156
131561456
ref: 13156
LEVER-CHANGE
€ 78.50
13156A
131561467
ref: 13156A
LEVER-CHANGE
131561467
€ 79.00
13161
131611253
ref: 13161
LEVER-COMP-CHANGE SHA
131611253
€ 53.50
13161A
131611254
ref: 13161A
LEVER-COMP-CHANGE SHA
€ 52.00
13161B
131611266
ref: 13161B
LEVER-COMP-CHANGE SHA
131611266
€ 55.00
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
132361126
€ 9.00
39110
391101119
ref: 39110
ROD-ASSY-TIE
391101119
€ 9.50
39156
391561641
ref: 39156
PAD
391561641
€ 9.50
92001
920011715
ref: 92001
BOLT
920011715
€ 7.00
92009
920091677
ref: 92009
SCREW,6X8,BLACK
920091677
€ 2.50
92015
920151443
ref: 92015
NUT
920151443
€ 2.50
92015A
920151444
ref: 92015A
NUT
920151444
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92145
921450008
ref: 92145
SPRING,RETURN
921450008
€ 5.50
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92151A
921511898
ref: 92151A
BOLT
921511898
€ 1.50
92153
921531076
ref: 92153
BOLT
€ 6.50
