FENDERS (R2-R5)

VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

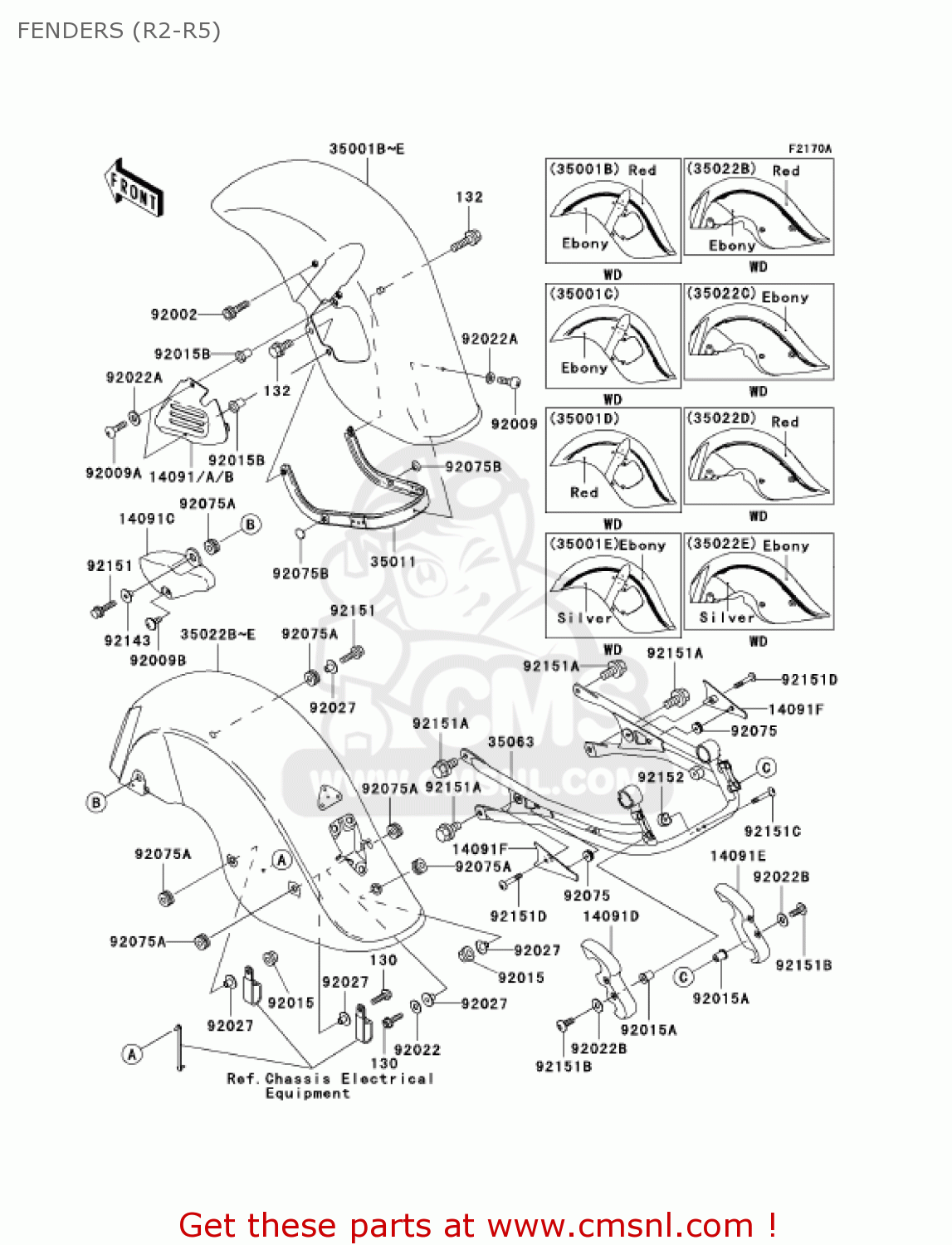

Fenders (r2-r5) diagram VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA

FENDERS (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
FENDERS (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
FENDERS (R2-R5) VN1500R2 VULCAN 1500 DRIFTER 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14091
140911059H8
ref: 14091
COVER,FRONT CALIPER,E
€ 69.50
14091C
140911071
ref: 14091C
COVER,COUPLER
€ 7.00
14091D
140911289
ref: 14091D
COVER,RR FENDER STAY,
140911289
€ 29.00
14091E
140911291
ref: 14091E
COVER,RR FENDER STAY,
€ 34.50
14091F
140911293
ref: 14091F
COVER,RR FENDER STAY(
€ 50.50
35001B
350015057225
ref: 35001B
FENDER-ASSY-FRONT,EBO
€ 722.00
35001C
350015058H8
ref: 35001C
FENDER-ASSY-FRONT,EBO
€ 477.50
35011
350111962
ref: 35011
STAY,FRONT FENDER
€ 56.00
35022B
350225112225
ref: 35022B
FENDER-COMP-REAR,EBON
€ 865.00
35022C
350225113H8
ref: 35022C
FENDER-COMP-REAR,EBON
€ 547.50
35063
350631147
ref: 35063
STAY,RR FENDER
€ 282.00
92002
920021179
ref: 92002
BOLT,SOCKET,8X30
€ 4.50
92009
920091652
ref: 92009
SCREW
920091652
€ 2.50
92009A
920091654
ref: 92009A
SCREW
920091654
€ 0.50
92009B
920091877
ref: 92009B
SCREW,6X12
920091877
€ 1.50
92015
920151386
ref: 92015
NUT,6MM
920151386
€ 3.00
92015A
920151700A
ref: 92015A
NUT
920151700A
€ 5.50
92015B
920151757A
ref: 92015B
NUT,5MM
920151757A
€ 5.00
92022
920221093
ref: 92022
WASHER,6.5X16X1.0
920221093
€ 1.00
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92022B
920221654
ref: 92022B
WASHER,6.5X16X1.0
920221654
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92075B
92075261
ref: 92075B
DAMPER,BATTERY CASE
92075261
€ 3.00
92143
921431960
ref: 92143
COLLAR
€ 3.50
92151
921511488
ref: 92151
BOLT,FLANGED,6X25
921511488
€ 2.00
92151A
921511511
ref: 92151A
BOLT,FLANGED,10X20
921511511
€ 2.50
92151B
921511750
ref: 92151B
BOLT
921511750
€ 1.50
92151C
921511902
ref: 92151C
BOLT,SOCKET,6X50
€ 5.00
130
130J0622
ref: 130
BOLT 6X22
€ 2.50
132
132E0820
ref: 132
BOLT-FLANGED-SMALL
132E0820
€ 2.50
92151D
921511921
ref: 92151D
BOLT,SOCKET,6X40
921511921
€ 3.50
92152
921521283
ref: 92152
COLLAR
€ 6.00
