TRANSMISSION
VN1500B3 VN15SE 1989 CANADA

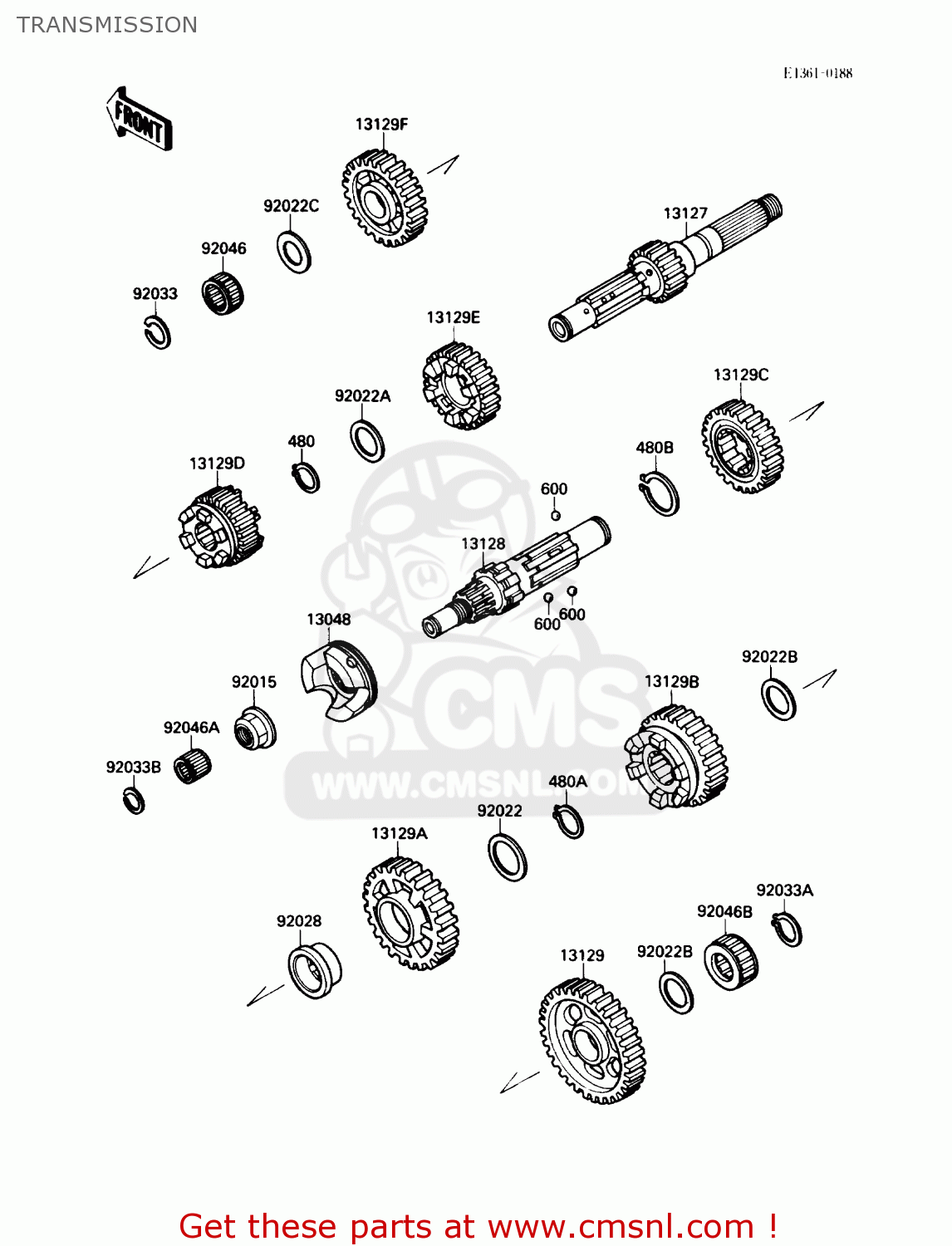

Transmission diagram VN1500B3 VN15SE 1989 CANADA
TRANSMISSION VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J3200
ref: 480A
CIRCLIP-TYPE-C,32MM
€ 1.00
480B
480J4000
ref: 480B
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13048
130481073
ref: 13048
CAM-DAMPER
€ 92.00
13127
131271155
ref: 13127
SHAFT-TRANSMISSION IN
€ 280.50
13128
131281144
ref: 13128
SHAFT-TRANSMISSION OU
€ 235.50
13129
131291842
ref: 13129
GEAR,OUTPUT LOW,40T
€ 171.50
13129A
131291843
ref: 13129A
GEAR,OUTPUT 2ND,35T
€ 119.50
13129B
131291844
ref: 13129B
GEAR,OUTPUT 3RD,31T
€ 136.00
13129C
131291845
ref: 13129C
GEAR,OUTPUT 4TH,28T
€ 81.00
13129D
131291905
ref: 13129D
GEAR,INPUT 2ND,22T
€ 127.50
13129E
131291906
ref: 13129E
GEAR,INPUT 3RD,26T
€ 102.00
13129F
131291907
ref: 13129F
GEAR,INPUT 4TH,29T
€ 102.00
92015
920151610
ref: 92015
NUT,20MM
€ 9.00
92022
920221693
ref: 92022
WASHER,32X40X1.6
€ 4.50
92022A
920221854
ref: 92022A
WASHER,INPUT,3RD,LH
€ 5.50
92022B
920221855
ref: 92022B
WASHER,25.5X36X1.0
€ 6.50
92022C
92022212
ref: 92022C
WASHER-PLAIN,22MM
€ 6.50
92028
920281478
ref: 92028
BUSHING,OUTPUT,2ND
€ 22.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
920331172
ref: 92033A
RING-SNAP,25MM
€ 3.50
92033B
920331208
ref: 92033B
RING-SNAP
€ 3.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92046A
920461154
ref: 92046A
BEARING-NEEDLE,K18242
€ 20.50
92046B
920461166
ref: 92046B
BEARING-NEEDLE,RS25/1
€ 18.50
