CYLINDER/PISTON(S)
VN1500B3 VN15SE 1989 CANADA

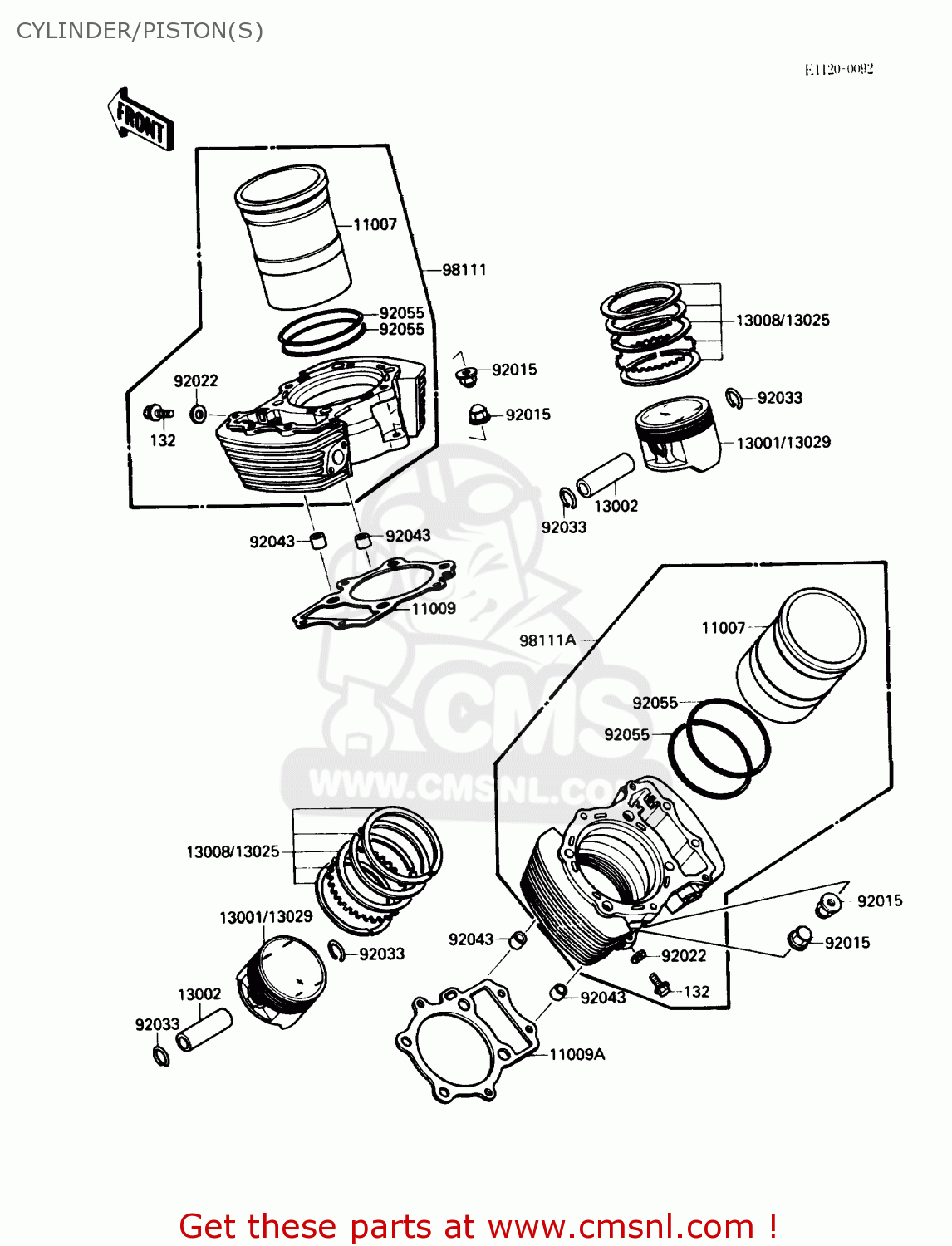

Cylinder/piston(s) diagram VN1500B3 VN15SE 1989 CANADA
CYLINDER/PISTON(S) VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
11007
110071097
ref: 11007
LINER-CYLINDER
€ 176.00
11009
110091642
ref: 11009
GASKET,CYLINDER BASE, (MCA)
€ 11.00
11009A
110091643
ref: 11009A
GASKET,CYLINDER BASE,
€ 12.00
13001
130011276
ref: 13001
PISTON-ENGINE,STD
€ 108.50
13002
130021070
ref: 13002
PIN-PISTON
€ 22.50
13008
130081086
ref: 13008
RING-SET-PISTON,STD
€ 85.50
13025
130251081
ref: 13025
RING-SET-PISTON L,O/S
€ 101.50
13029
130291173
ref: 13029
PISTON-ENGINE L,O/S 0
€ 155.50
92015
920151371
ref: 92015
NUT,CAP,8MM
€ 3.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92033
920331226
ref: 92033
RING-SNAP
€ 2.50
92043
920431349
ref: 92043
PIN,DOWEL,13X16X14
€ 3.00
92055
920551371
ref: 92055
RING-O,110.5X2.5
€ 7.00
98111
981111052
ref: 98111
CYLINDER-COMP-ENGINE,
€ 784.00
98111A
981111053
ref: 98111A
CYLINDER-COMP-ENGINE,
€ 784.00
