BRAKE PEDAL/TORQUE LINK
VN1500B3 VN15SE 1989 CANADA

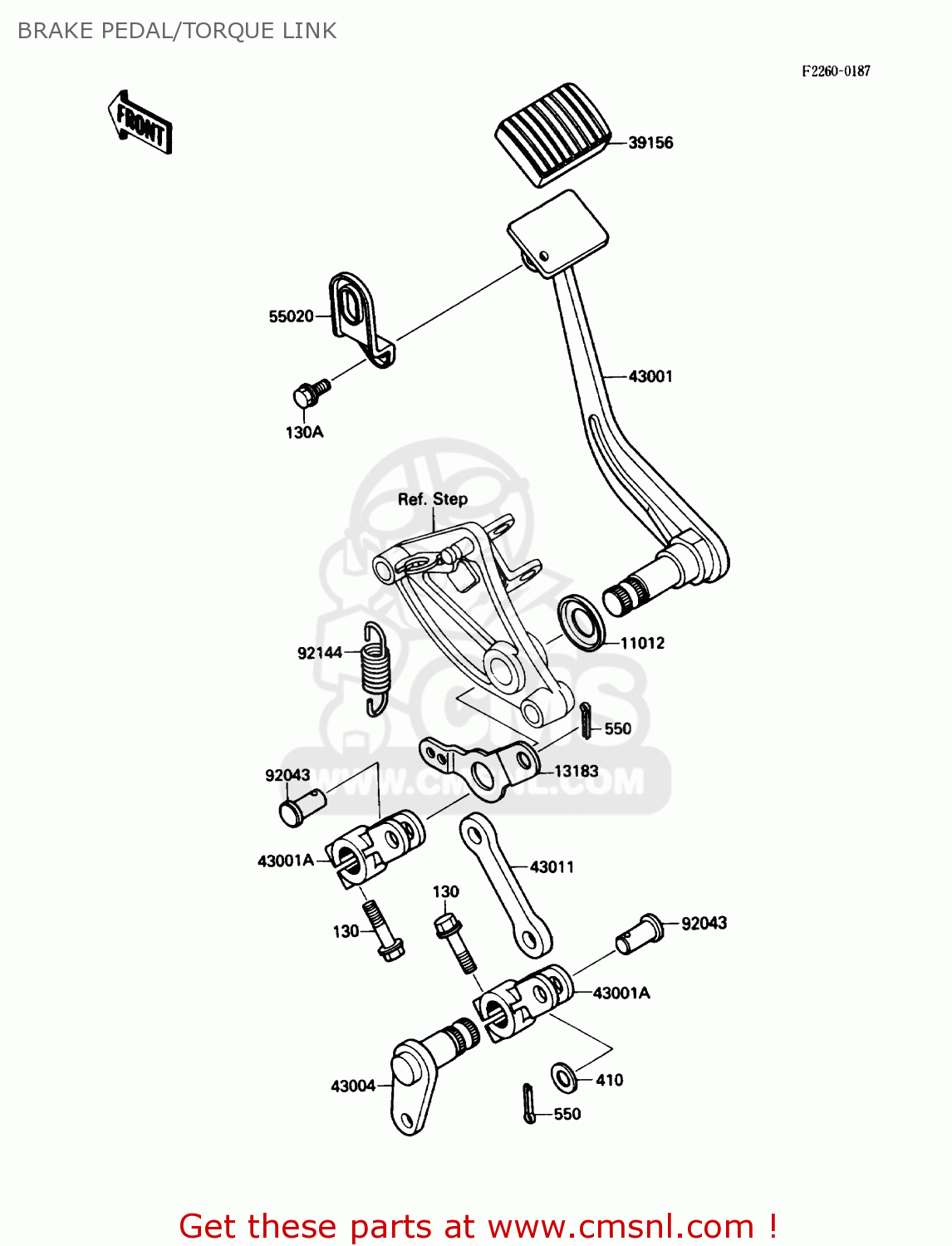

Brake pedal/torque link diagram VN1500B3 VN15SE 1989 CANADA
BRAKE PEDAL/TORQUE LINK VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
130A
130N0608
ref: 130A
BOLT,FLANGED,6X8
€ 2.00
410
410F1000
ref: 410
WASHER-PLAIN-SMALL,10
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
11012
110121582
ref: 11012
CAP,BRAKE PEDAL
€ 4.50
13183
131831099
ref: 13183
PLATE,BRAKE PEDAL RET
€ 6.00
39156
391561071
ref: 39156
PAD,BRAKE PEDAL
€ 7.50
43001
430011222
ref: 43001
LEVER-BRAKE,PEDAL
€ 83.50
43001A
430011223
ref: 43001A
LEVER-BRAKE,LINK
€ 23.00
43004
430041121
ref: 43004
SHAFT-BRAKE
€ 37.00
43011
430111137
ref: 43011
ROD-BRAKE
€ 7.00
55020
550201268
ref: 55020
GUARD,BRAKE PEDAL
€ 9.00
92043
920431352
ref: 92043
PIN,10X20.5
€ 4.00
92144
921441169
ref: 92144
SPRING,BRAKE PEDAL RE
€ 6.50
