CLUTCH MASTER CYLINDER
VN1500B3 VN15SE 1989 CANADA

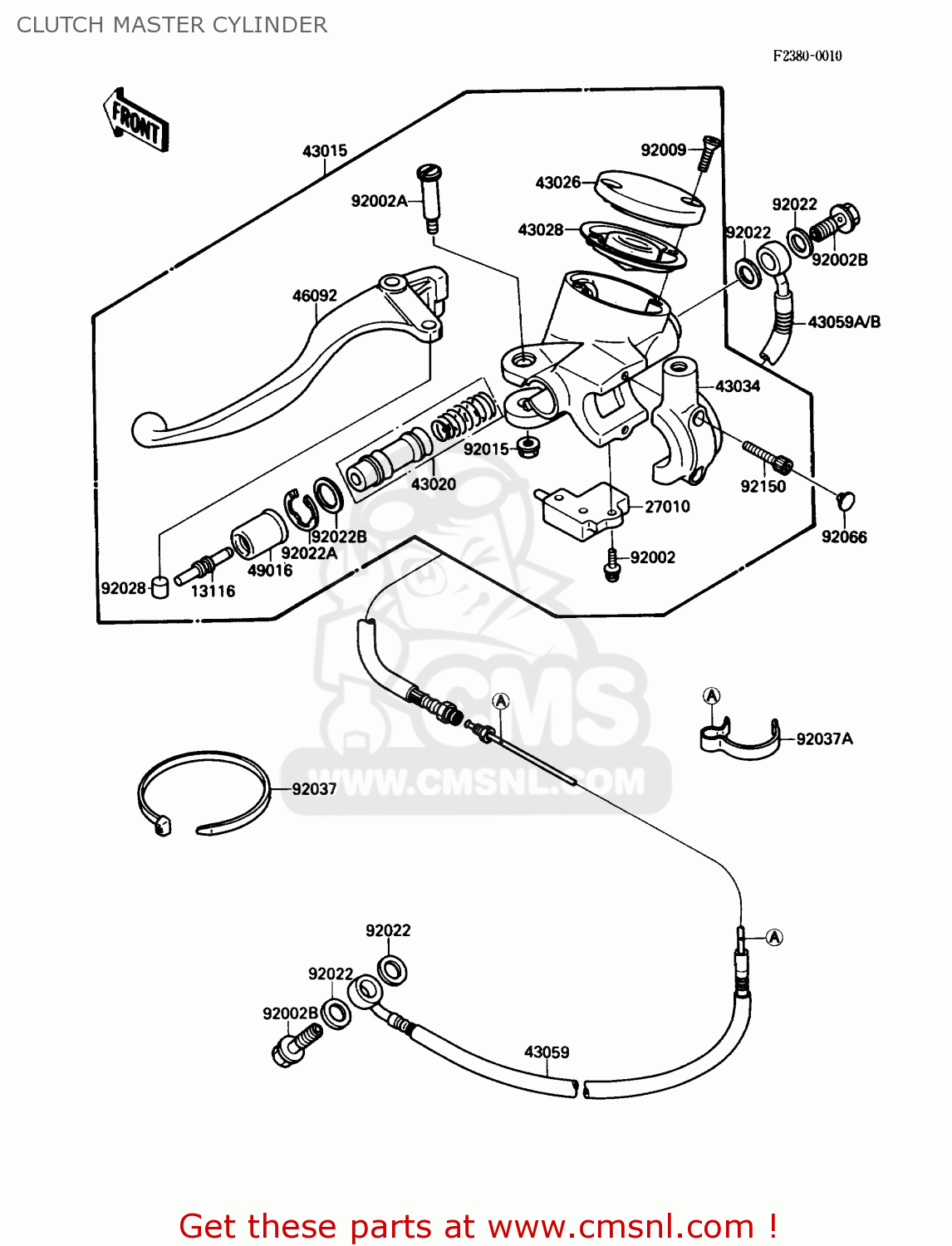

Clutch master cylinder diagram VN1500B3 VN15SE 1989 CANADA
CLUTCH MASTER CYLINDER VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
€ 24.00
27010
270101171
ref: 27010
SWITCH,CLUTCH
€ 25.00
43015
430151371
ref: 43015
CYLINDER-ASSY-MASTER,
€ 519.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
€ 47.50
43026
430261066
ref: 43026
CAP-BRAKE
€ 46.50
43028
430281071
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341086
ref: 43034
HOLDER-BRAKE
€ 68.00
43059
430591393
ref: 43059
HOSE-BRAKE,CLUTCH
€ 127.50
43059B
430591440
ref: 43059B
HOSE-BRAKE,CLUTCH
€ 86.00
46092
460921152
ref: 46092
LEVER-GRIP,CLUTCH
€ 17.00
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92002
920021325
ref: 92002
BOLT
€ 4.00
92002A
920021561
ref: 92002A
BOLT,LEVER SET
€ 8.00
92002B
920021975
ref: 92002B
BOLT,OIL,L=23
€ 10.00
92009
920091440
ref: 92009
SCREW
€ 2.50
92015
920151528
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221605
ref: 92022A
WASHER,PISTON
€ 3.00
92022B
920221606
ref: 92022B
WASHER,PISTON
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
€ 10.00
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
€ 1.00
92037A
920371552
ref: 92037A
CLAMP
€ 6.50
92066
920661301
ref: 92066
PLUG
€ 4.00
92150
921501025
ref: 92150
BOLT,SOCKET,6MM
€ 4.50
