CHASSIS ELECTRICAL EQUIPMENT
VN1500B3 VN15SE 1989 CANADA

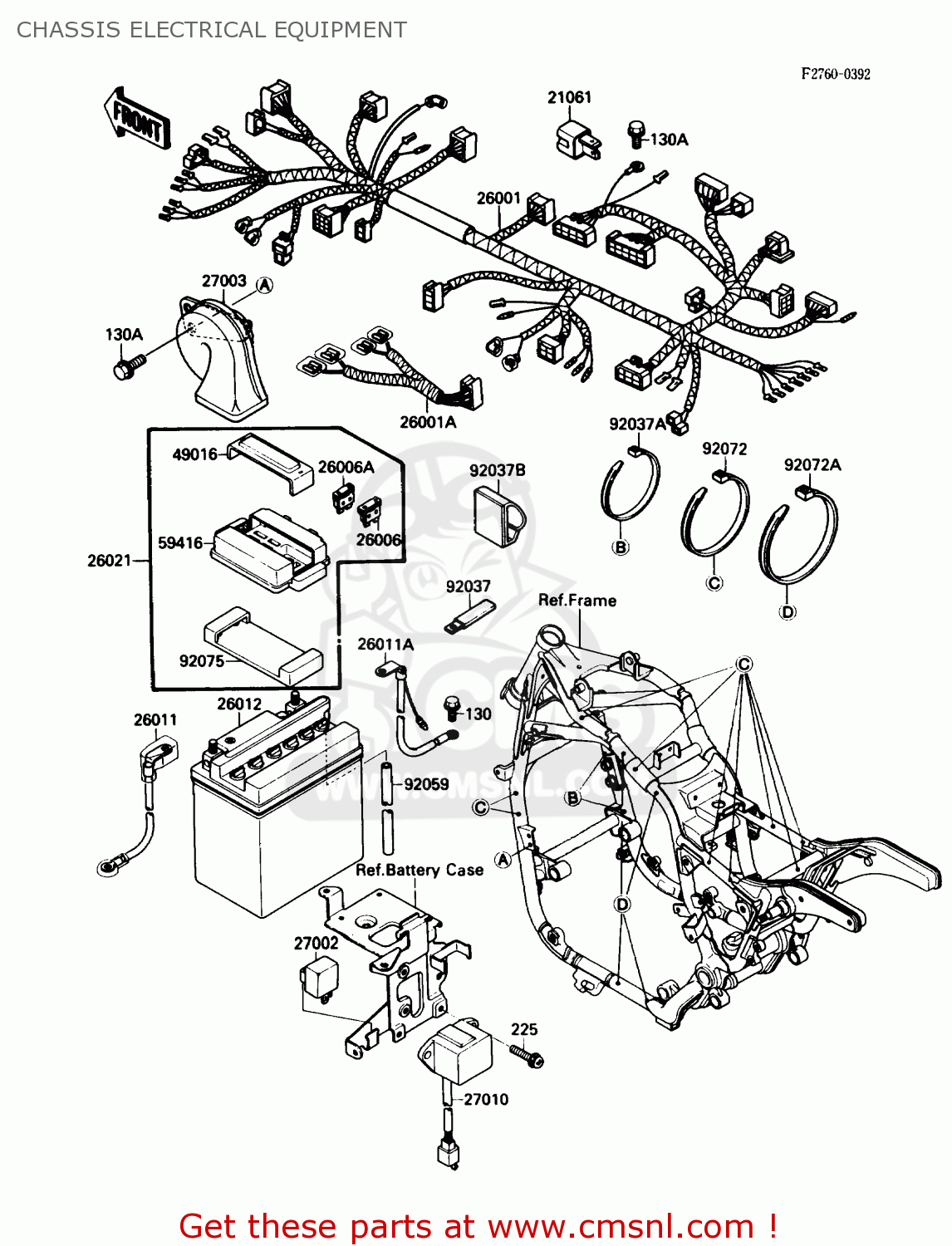

Chassis electrical equipment diagram VN1500B3 VN15SE 1989 CANADA
CHASSIS ELECTRICAL EQUIPMENT VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
€ 1.50
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
26001
260011857
ref: 26001
HARNESS,MAIN
€ 238.00
26001A
260011862
ref: 26001A
HARNESS,IGNITION
€ 13.50
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111391
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 21.00
26011A
260111392
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 21.00
26012
260121187
ref: 26012
BATTERY,12V 20AH,Y50-
€ 79.50
26021
260211068
ref: 26021
JUNCTION BOX
€ 133.50
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031264
ref: 27003
HORN,LOW TONE
€ 75.50
27010
270101069
ref: 27010
SWITCH,RESERVE LIGTIN
€ 149.00
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
59416
594161065
ref: 59416
JUNCTION BOX
€ 63.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371817
ref: 92037A
CLAMP,BAND,L=137
€ 8.50
92037B
920371954
ref: 92037B
CLAMP,WIRING HARNESS
€ 4.00
92059
920591840
ref: 92059
TUBE,5X8X570
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92072A
920721197
ref: 92072A
BAND
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
€ 9.50
