DRIVE SHAFT/FINAL GEAR
VN1500B3 VN15SE 1989 CANADA

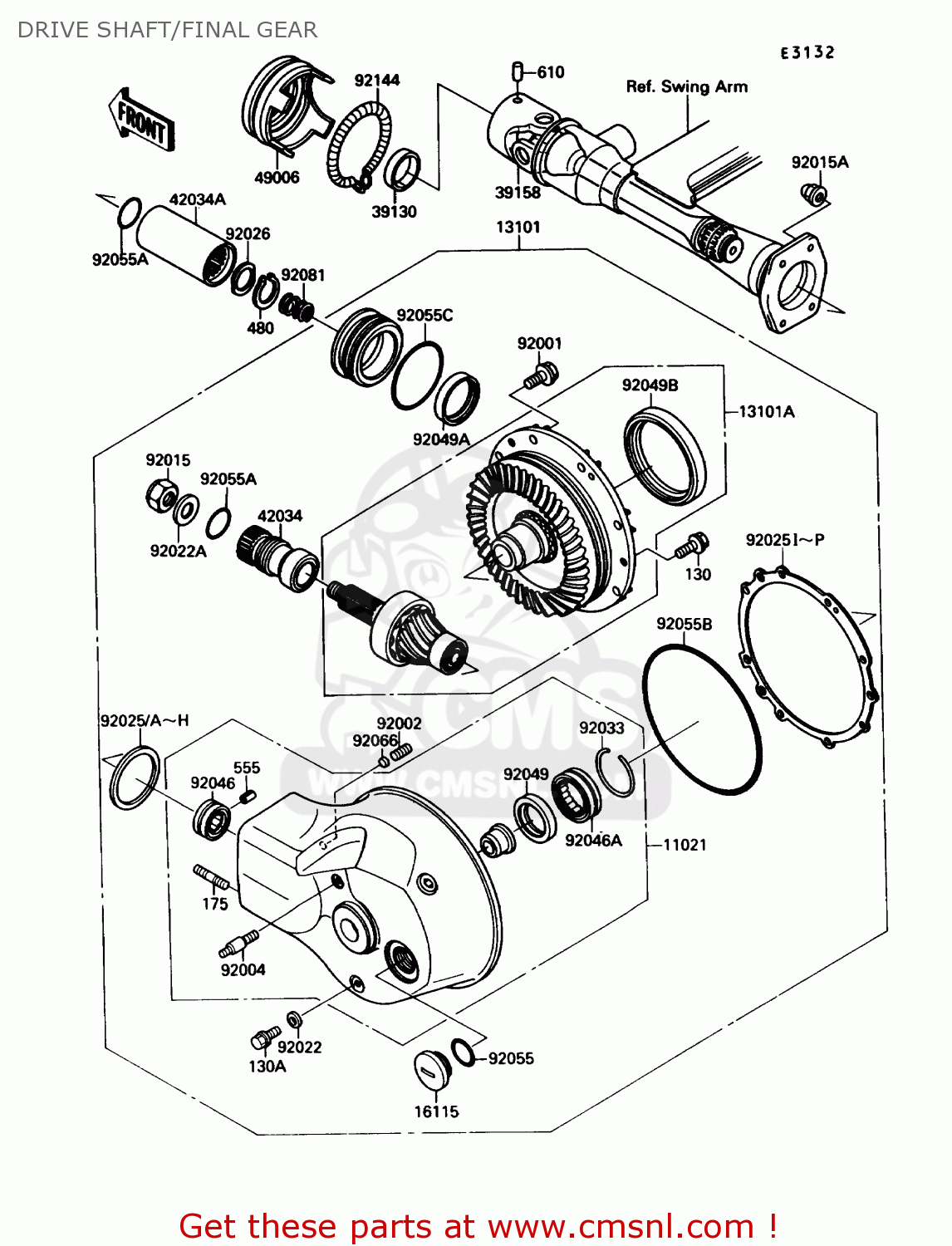

Drive shaft/final gear diagram VN1500B3 VN15SE 1989 CANADA
DRIVE SHAFT/FINAL GEAR VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
11021
110211065
ref: 11021
CASE-ASSY,FINAL GEAR
€ 854.00
13101
131011116
ref: 13101
GEAR-ASSY,FINAL
€ 3,604.50
13101A
131015066
ref: 13101A
GEAR-ASSY,BEVEL,RR
€ 1,671.00
16115
161151056
ref: 16115
CAP-OIL FILLER
€ 19.50
39130
391301002
ref: 39130
SPRING,LEAF
€ 3.00
39158
391581062
ref: 39158
SHAFT-ASSY-DRIVE
€ 464.50
42034
420341085
ref: 42034
COUPLING
€ 58.50
42034A
420341092
ref: 42034A
COUPLING,PROPELLER SH
€ 78.00
49006
490061226
ref: 49006
BOOT,DRIVE SHAFT
€ 19.00
92001
920011778
ref: 92001
BOLT,FLANGED,10X23
€ 3.50
92002
920021836
ref: 92002
BOLT
€ 2.50
92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
€ 10.00
92015
920151059
ref: 92015
NUT,16MM
€ 7.50
92015A
920151649
ref: 92015A
NUT,10MM
€ 3.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92022A
920221105
ref: 92022A
WASHER,16X32X3.2
€ 7.00
92025
920251733
ref: 92025
SHIM,T=0.10
€ 14.00
92025A
920251734
ref: 92025A
SHIM,T=0.15
€ 10.50
92025B
920251735
ref: 92025B
SHIM,T=0.50
€ 8.50
92025C
920251736
ref: 92025C
SHIM,T=0.60
€ 6.00
92025D
920251737
ref: 92025D
SHIM,T=0.70
€ 7.50
92025E
920251738
ref: 92025E
SHIM,T=0.80
€ 6.00
92025F
920251739
ref: 92025F
SHIM,T=0.90
€ 6.00
92025G
920251740
ref: 92025G
SHIM,T=1.00
€ 6.00
92025H
920251741
ref: 92025H
SHIM,T=1.20
€ 6.00
92025I
920251783
ref: 92025I
SHIM,T=0.15
€ 8.00
92025J
920251784
ref: 92025J
SHIM,T=0.50
€ 7.00
92025K
920251785
ref: 92025K
SHIM,T=0.60
€ 7.00
92025L
920251786
ref: 92025L
SHIM,T=0.70
€ 7.00
92025M
920251787
ref: 92025M
SHIM,T=0.80
€ 9.50
92025N
920251788
ref: 92025N
SHIM,T=0.90
€ 9.50
92025O
920251789
ref: 92025O
SHIM,T=1.00
€ 9.50
92025P
920251790
ref: 92025P
SHIM,T=1.20
€ 10.00
92026
920261085
ref: 92026
SPACER,26.2X36X2
€ 5.00
92033
920331074
ref: 92033
RING-SNAP,52MM
€ 3.00
92046
920461168
ref: 92046
BEARING-NEEDLE,RNA490
€ 50.00
92046A
920461169
ref: 92046A
BEARING-NEEDLE,38NQ50
€ 60.50
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
€ 10.00
92049A
920491248
ref: 92049A
SEAL-OIL
€ 15.50
92049B
920491280
ref: 92049B
SEAL-OIL
€ 22.50
130
130G0825
ref: 130
BOLT,FLANGED,8X25
€ 0.50
130A
130N0812
ref: 130A
BOLT-FLANGED
€ 3.00
175
175G1025
ref: 175
BOLT-STUD-FINE
€ 4.00
480
480J2600
ref: 480
CIRCLIP-TYPE-C,26MM
€ 1.50
555
555A0428
ref: 555
PIN-SPRING
€ 1.00
610
610A0406
ref: 610
ROLLER,4X6
€ 2.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551037
ref: 92055A
RING-O,ID=32.7
€ 2.50
92055B
920551165
ref: 92055B
RING-O,154X3
€ 7.50
92055C
920551327
ref: 92055C
RING-O,67.6X3.5
€ 4.00
92066
920661272
ref: 92066
PLUG
€ 2.00
92081
920811183
ref: 92081
SPRING,PROPELLER SHFT
€ 4.00
92144
921441194
ref: 92144
SPRING
€ 7.50
