FRONT BEVEL GEAR
VN1500B3 VN15SE 1989 CANADA

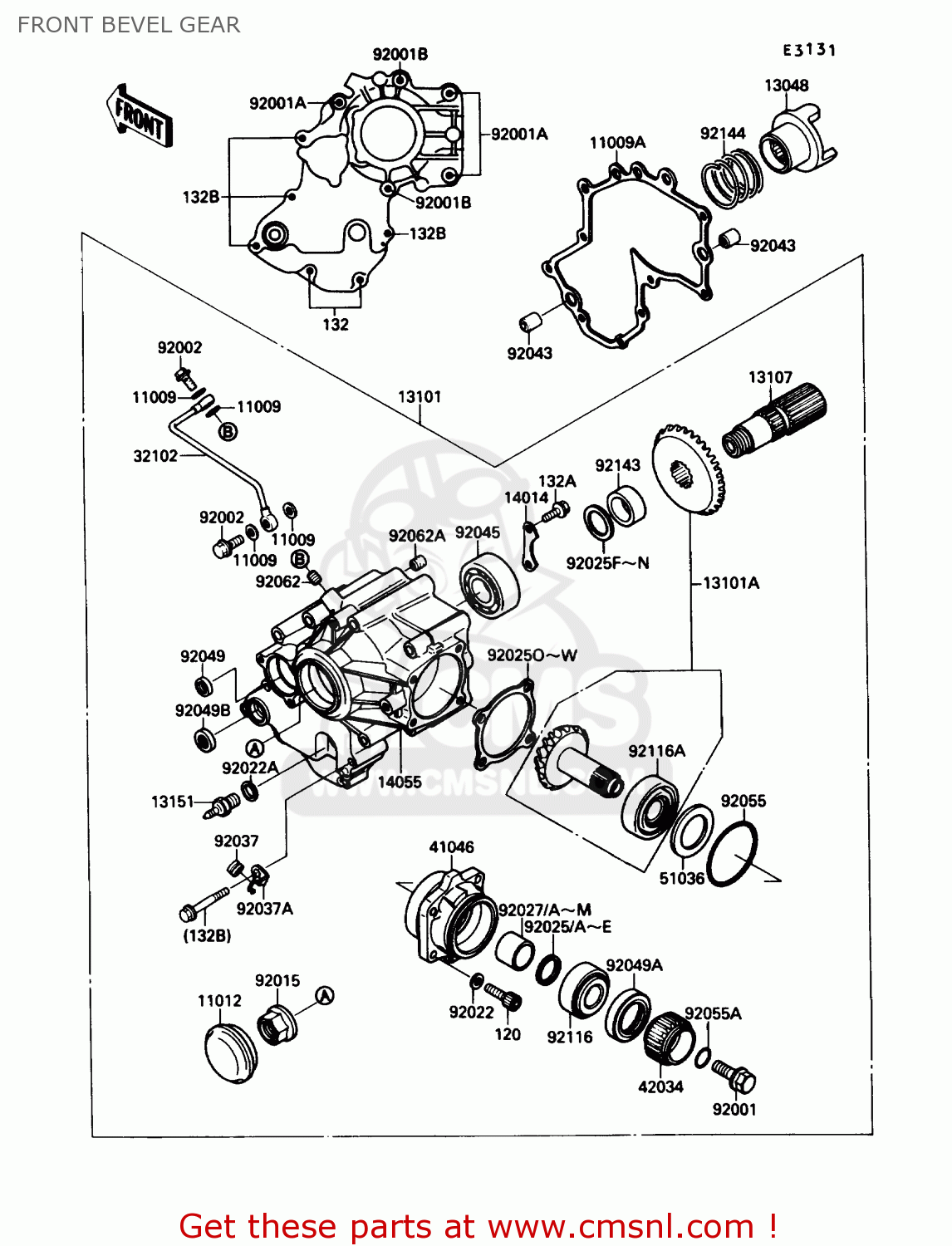

Front bevel gear diagram VN1500B3 VN15SE 1989 CANADA
FRONT BEVEL GEAR VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11009A
110091648
ref: 11009A
GASKET,GEAR CASE
€ 19.50
11012
110121071
ref: 11012
CAP
€ 21.50
13048
130481074
ref: 13048
CAM-DAMPER
€ 75.50
13101
131011118
ref: 13101
GEAR-ASSY,BEVEL,FR
€ 1,659.00
13101A
131015065
ref: 13101A
GEAR-ASSY,BEVEL,FR
€ 753.50
13107
131071197
ref: 13107
SHAFT,BEVEL,FR
€ 132.50
13151
131511010
ref: 13151
SWITCH-COMP,NEUTRAL
€ 17.50
14014
140141084
ref: 14014
PLATE-POSITION
€ 4.00
14055
140551074
ref: 14055
CASE-GEAR
€ 549.50
32102
321021411
ref: 32102
PIPE
€ 32.50
41046
410461085
ref: 41046
HOUSING-BEARING
€ 96.00
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
€ 96.00
51036
510361002
ref: 51036
CAP
€ 3.50
92001
920011169
ref: 92001
BOLT,12X42
€ 15.50
92001A
920011480
ref: 92001A
BOLT,8X90
€ 5.50
92001B
920011597
ref: 92001B
BOLT,FLANGED,8X110
€ 3.50
92002
920021429
ref: 92002
BOLT,8X20
€ 7.00
92015
920151554
ref: 92015
NUT,24MM
€ 16.50
92022
920221028
ref: 92022
WASHER,8.5X13X1
€ 2.50
92022A
920221211
ref: 92022A
WASHER,12X18X1.0
€ 2.50
92025
920251072
ref: 92025
SHIM,1.70T
€ 6.50
92025A
920251073
ref: 92025A
SHIM,1.72T
€ 6.50
92025B
920251074
ref: 92025B
SHIM,1.74T
€ 6.50
92025C
920251075
ref: 92025C
SHIM,1.76T
€ 6.50
92025D
920251076
ref: 92025D
SHIM,1.78T
€ 6.50
92025E
920251077
ref: 92025E
SHIM,1.80T
€ 6.50
92025F
920251688
ref: 92025F
SHIM,25.3X36X0.15
€ 5.50
92025G
920251689
ref: 92025G
SHIM,25.3X36X0.50
€ 5.50
92025H
920251690
ref: 92025H
SHIM,25.3X36X0.60
€ 5.50
92025I
920251691
ref: 92025I
SHIM,25.3X36X0.70
€ 5.50
92025J
920251692
ref: 92025J
SHIM,25.3X36X0.80
€ 5.50
92025K
920251693
ref: 92025K
SHIM,25.3X36X0.90
€ 5.50
92025L
920251694
ref: 92025L
SHIM,25.3X36X1.0
€ 5.50
92025M
920251695
ref: 92025M
SHIM,25.3X36X1.1
€ 5.50
92025N
920251696
ref: 92025N
SHIM,25.3X36X1.2
€ 5.50
92025O
920251818
ref: 92025O
SHIM,T=0.15
€ 8.00
92025P
920251819
ref: 92025P
SHIM,T=0.50
€ 8.00
92025Q
920251820
ref: 92025Q
SHIM,T=0.60
€ 7.50
92025R
920251821
ref: 92025R
SHIM,T=0.70
€ 7.50
120
120P0830
ref: 120
BOLT,SOCKET,8X30
€ 2.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
€ 1.00
132B
132G0655
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
92025S
920251822
ref: 92025S
SHIM,T=0.80
€ 7.50
92025T
920251823
ref: 92025T
SHIM,T=0.90
€ 8.00
92025U
920251824
ref: 92025U
SHIM,T=1.00
€ 7.00
92025V
920251825
ref: 92025V
SHIM,T=1.20
€ 8.00
92025W
920251826
ref: 92025W
SHIM,T=0.10
€ 7.00
92027
920271152
ref: 92027
COLLAR,25.2X29.8X22.8
€ 12.00
92027A
920271153
ref: 92027A
COLLAR,25.2X29.8X22.9
€ 12.00
92027B
920271154
ref: 92027B
COLLAR,25.2X29.8X23
€ 12.00
92027C
920271155
ref: 92027C
COLLAR,25.2X29.8X23.1
€ 12.50
92027D
920271156
ref: 92027D
COLLAR,25.2X29.8X23.2
€ 13.00
92027E
920271157
ref: 92027E
COLLAR,25.2X29.8X23.3
€ 12.00
92027F
920271158
ref: 92027F
COLLAR,25.2X29.8X23.4
€ 12.00
92027G
920271159
ref: 92027G
COLLAR,25.2X29.8X23.5
€ 12.00
92027H
920271160
ref: 92027H
COLLAR,25.2X29.8X23.6
€ 12.00
92027I
920271161
ref: 92027I
COLLAR,25.2X29.8X23.7
€ 12.00
92027J
920271162
ref: 92027J
COLLAR,25.2X29.8X23.8
€ 12.00
92027K
920271163
ref: 92027K
COLLAR,25.2X29.8X23.9
€ 12.00
92027L
920271164
ref: 92027L
COLLAR,25.2X29.8X24
€ 12.00
92027M
920271165
ref: 92027M
COLLAR,25.2X29.8X24.1
€ 12.00
92037
43064006
ref: 92037
GROMMET,BRAKE HOSE
€ 2.50
92037A
920371873
ref: 92037A
CLAMP
€ 6.00
92043
92042032
ref: 92043
PIN,DOWEL,14MM
€ 3.00
92045
920451165
ref: 92045
BEARING-BALL,6305C2
€ 44.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
€ 12.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92055
920551043
ref: 92055
0RING,I.D=64.4M/M
€ 6.00
92055A
920551044
ref: 92055A
RING-O,ID=18.64
€ 3.00
92062
920621066
ref: 92062
NOZZLE,6X8
€ 2.50
92062A
920621067
ref: 92062A
NOZZLE,10X10
€ 4.00
92116
921161062
ref: 92116
BEARING-ROLLER,HI-CAP
€ 41.00
92116A
921161063
ref: 92116A
BEARING-ROLLER,HI-CAP
€ 49.50
92143
920271968
ref: 92143
COLLAR,25.3X36X10
€ 15.50
92144
921441193
ref: 92144
SPRING,CAM DAMPER
€ 52.00
