IGNITION SYSTEM
VN1500B3 VN15SE 1989 CANADA

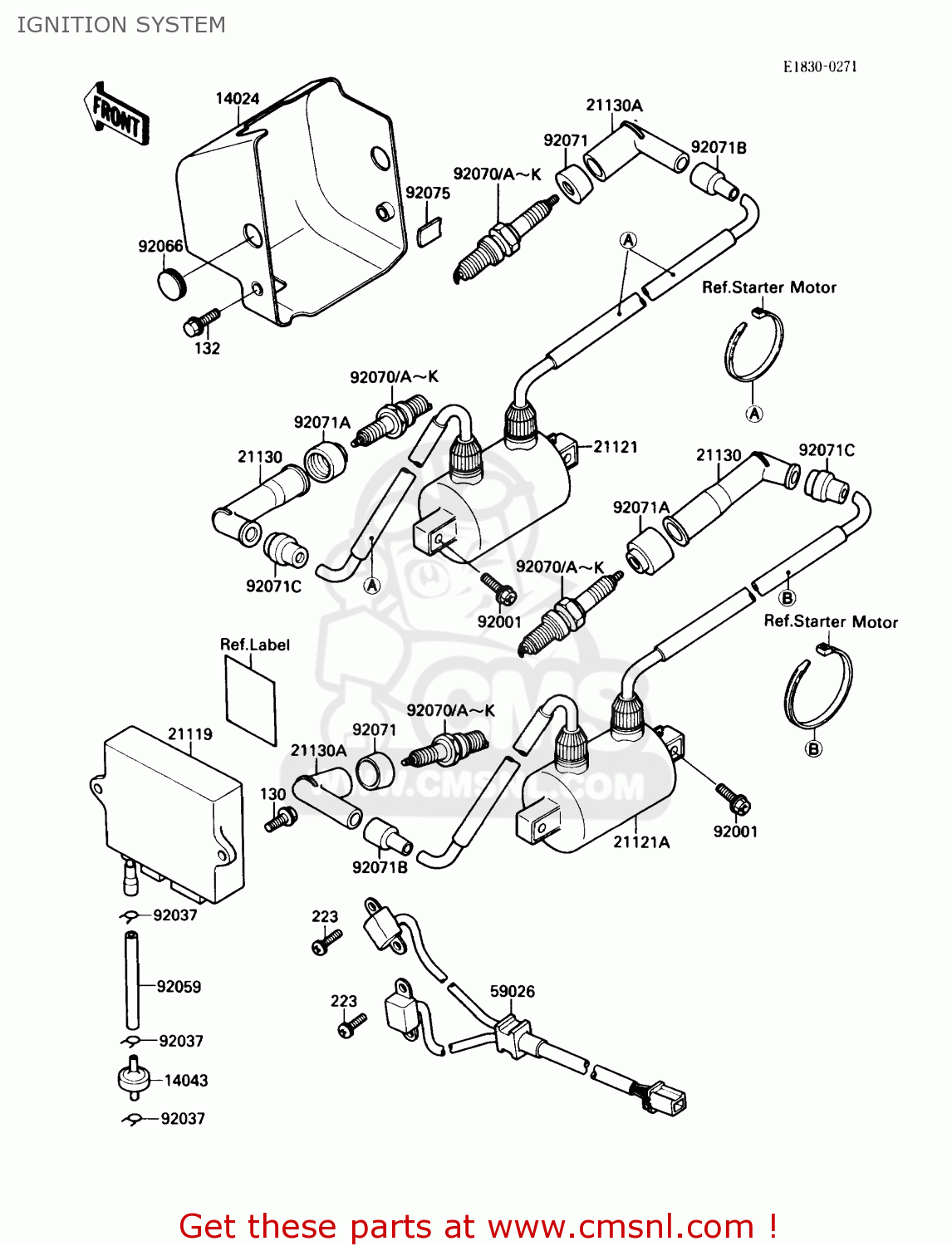

Ignition system diagram VN1500B3 VN15SE 1989 CANADA
IGNITION SYSTEM VN1500B3 VN15SE 1989 CANADA
×
prices are in EUR
ref
part #
description
quantity
14024
140241527
ref: 14024
COVER,IGNITION COIL
€ 24.50
14043
140431060
ref: 14043
FILTER
€ 29.00
21119
211191217
ref: 21119
IGNITER
€ 841.50
21121
211211154
ref: 21121
COIL-IGNITION,FR
€ 146.00
21121A
211211155
ref: 21121A
COIL-IGNITION,RR
€ 168.50
21130
211301002
ref: 21130
CAP,SPARK PLUG
€ 38.50
21130A
211301003
ref: 21130A
CAP,SPARK PLUG"LD05F"
€ 20.00
59026
590261085
ref: 59026
COIL-PULSING
€ 142.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92037
920371482
ref: 92037
CLAMP,TUBE
€ 6.00
92059
920591687
ref: 92059
TUBE,3X7X140
€ 2.50
92066
920661286
ref: 92066
PLUG
€ 3.00
92070
920701065
ref: 92070
DPR8EA-9 (NGK SPARKPL
€ 4.00
92070B
ref: 92070B
92070E
ref: 92070E
92070G
920701125
ref: 92070G
DPR7EA-9 (NGK SPARKPL
€ 4.00
130
130G0614
ref: 130
BOLT,FLANGED,6X14
€ 0.50
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
223
223B0516
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92070J
920701138
ref: 92070J
DPR6EA-9 (NGK SPARKPL
€ 4.00
92070K
ref: 92070K
92071
920711015
ref: 92071
GROMMET,SPARK PLUG CA
€ 2.50
92071A
920711124
ref: 92071A
GROMMET,PLUG CAP
€ 6.50
92071B
920711154
ref: 92071B
GROMMET,HIGH TENSION
€ 6.50
92071C
920711155
ref: 92071C
GROMMET,HIGH TENSION
€ 6.00
92075
920751982
ref: 92075
DAMPER,IGNITION
€ 2.50
