STANDS ('83 H3)

KZ650H3 CSR 1983 USA CANADA

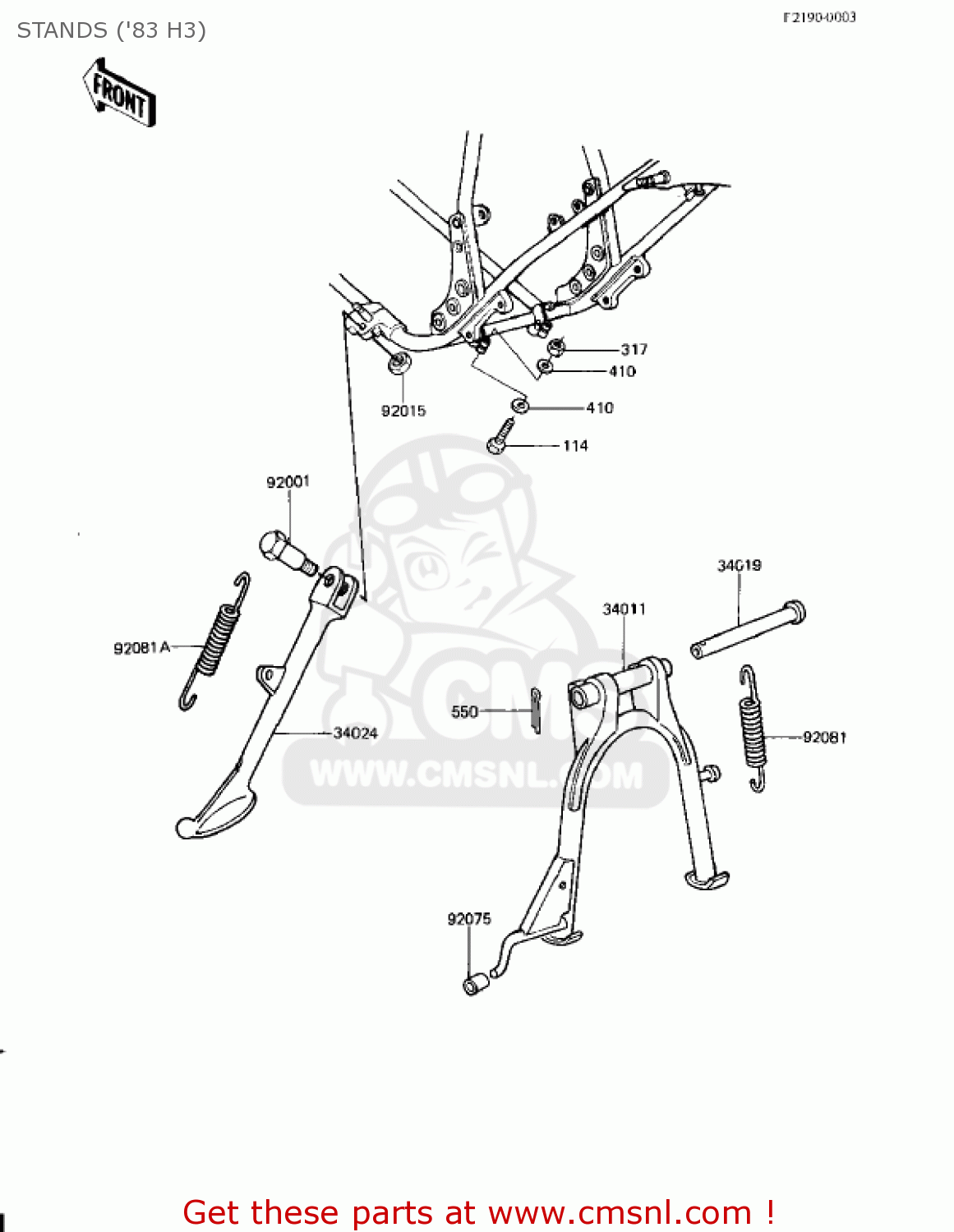

Stands ('83 h3) diagram KZ650H3 CSR 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

34011

340111003
ref: 34011

STAND,MAIN

€ 114.00

34019

34019015
ref: 34019

SHAFT-STAND,CNT

€ 9.50

34024

340241103
ref: 34024

STAND, SIDE

€ 45.50

92001

92003079
ref: 92001

BOLT-SIDE STAND

€ 7.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92075

920751142
ref: 92075

DAMPER,STAND,CNT

€ 4.00

92081

34023016
ref: 92081

SPRING,MAIN STAND

€ 11.00

92081A

34025005
ref: 92081A

SPRING-SIDE STAND

€ 5.00

114

115G0840
ref: 114

115G0840

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D3030
ref: 550

PIN-COTTER,3.0X30

€ 1.50
