FRONT HUB ('81-'82 H1/H2)
KZ650H3 CSR 1983 USA CANADA

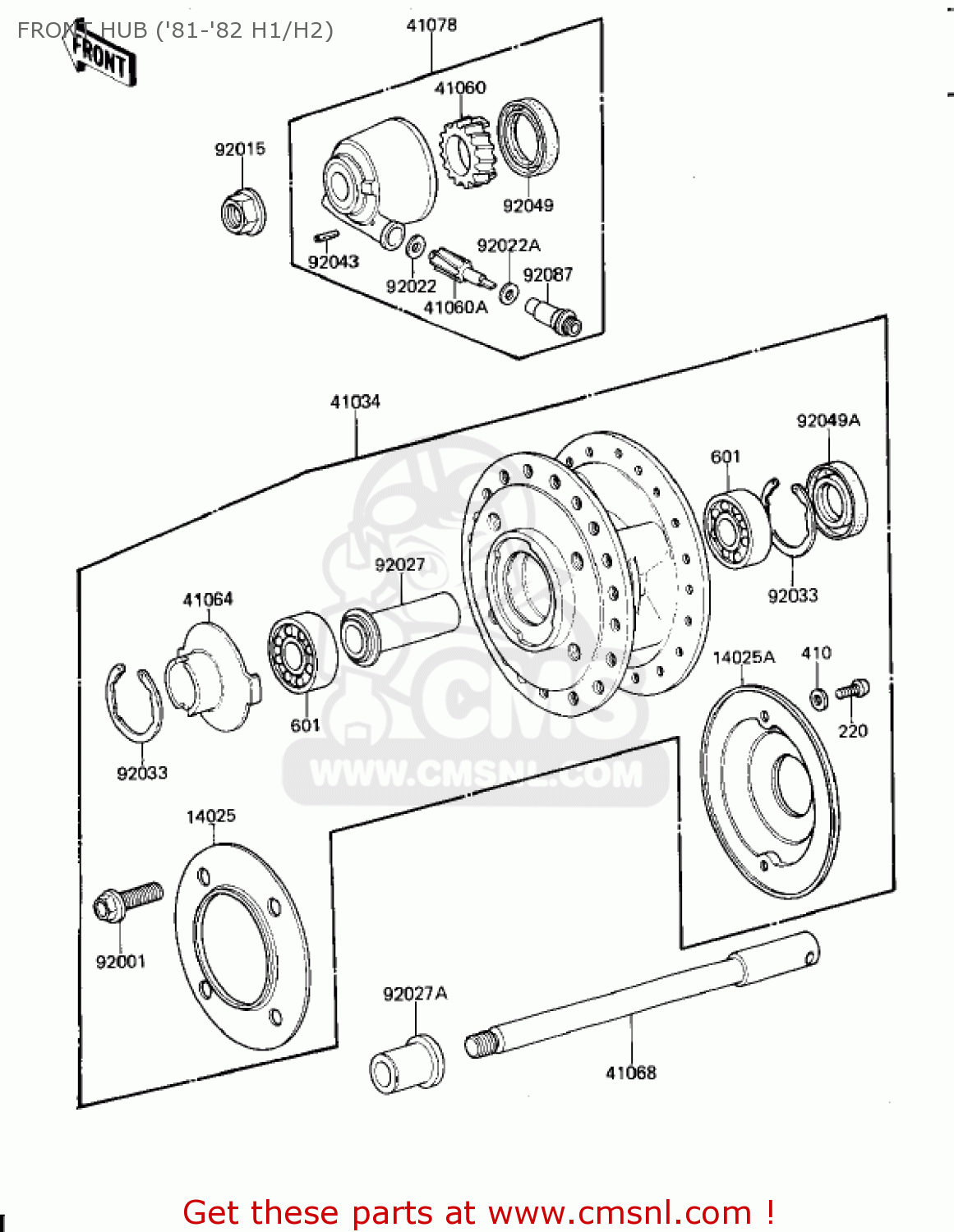

Front hub ('81-'82 h1/h2) diagram KZ650H3 CSR 1983 USA CANADA
FRONT HUB ('81-'82 H1/H2) KZ650H3 CSR 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
14025
140251277
ref: 14025
COVER,DUST,LH
€ 12.50
14025A
140251341
ref: 14025A
COVER,DUST,RH
€ 15.50
41034
410341041
ref: 41034
FRONT BRAKE DRUM ASSEMBLY
€ 167.50
41060
41059026
ref: 41060
GEAR,SPEEDOMETER
€ 27.00
41060A
410601016
ref: 41060A
PINION,SPEEDOMETER,9T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
€ 44.50
41078
410781013
ref: 41078
CASE-ASSY-METER GEAR
€ 120.00
92001
920011173
ref: 92001
BOLT,HEX HEAD,10X30
€ 6.00
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92022A
41063001
ref: 92022A
WASHER-THRST SPD PINI
€ 3.00
92027
920271223
ref: 92027
COLLAR,FR HUB L=55M/M
€ 5.50
92027A
920271225
ref: 92027A
COLLAR,FR AXLE L=30MM
€ 11.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
220
220B0514
ref: 220
ACREW-PAN HEAD,5X14
€ 2.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
601
601B6302Z
ref: 601
BEARING-BALL,#6302ZC3
€ 22.50
