FENDERS ('81-'82 H1/H2)

KZ650H3 CSR 1983 USA CANADA

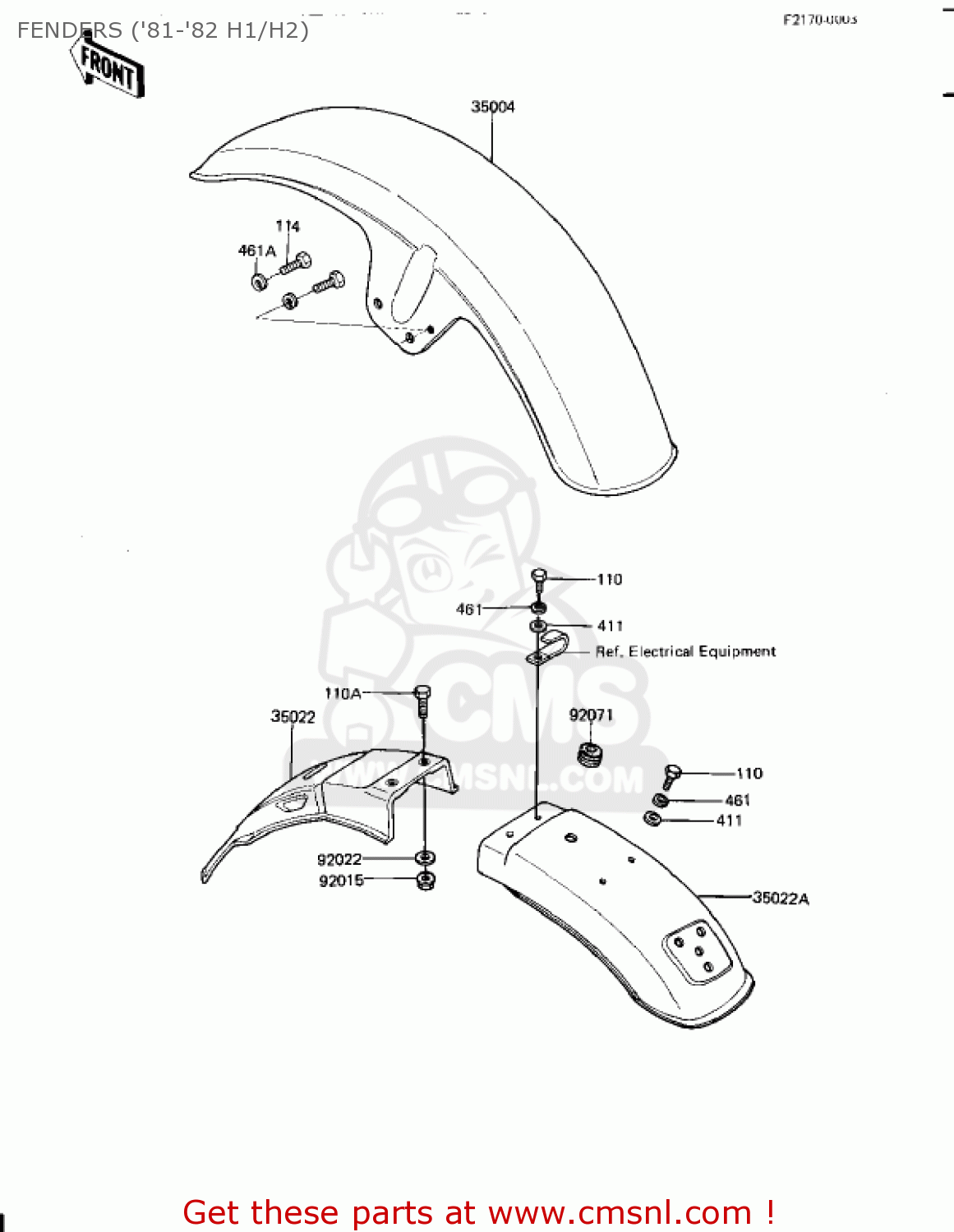

Fenders ('81-'82 h1/h2) diagram KZ650H3 CSR 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

35004

350041047
ref: 35004

FENDER-FRONT,CR PLATE

€ 249.50

35022

350221046
ref: 35022

FENDER-COMP-REAR,FR

€ 46.50

35022A

350221059
ref: 35022A

FENDER-COMP-REAR,RR,C

€ 146.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
