BREATHER COVER/OIL PAN ('83 H3)

KZ650H3 CSR 1983 USA CANADA

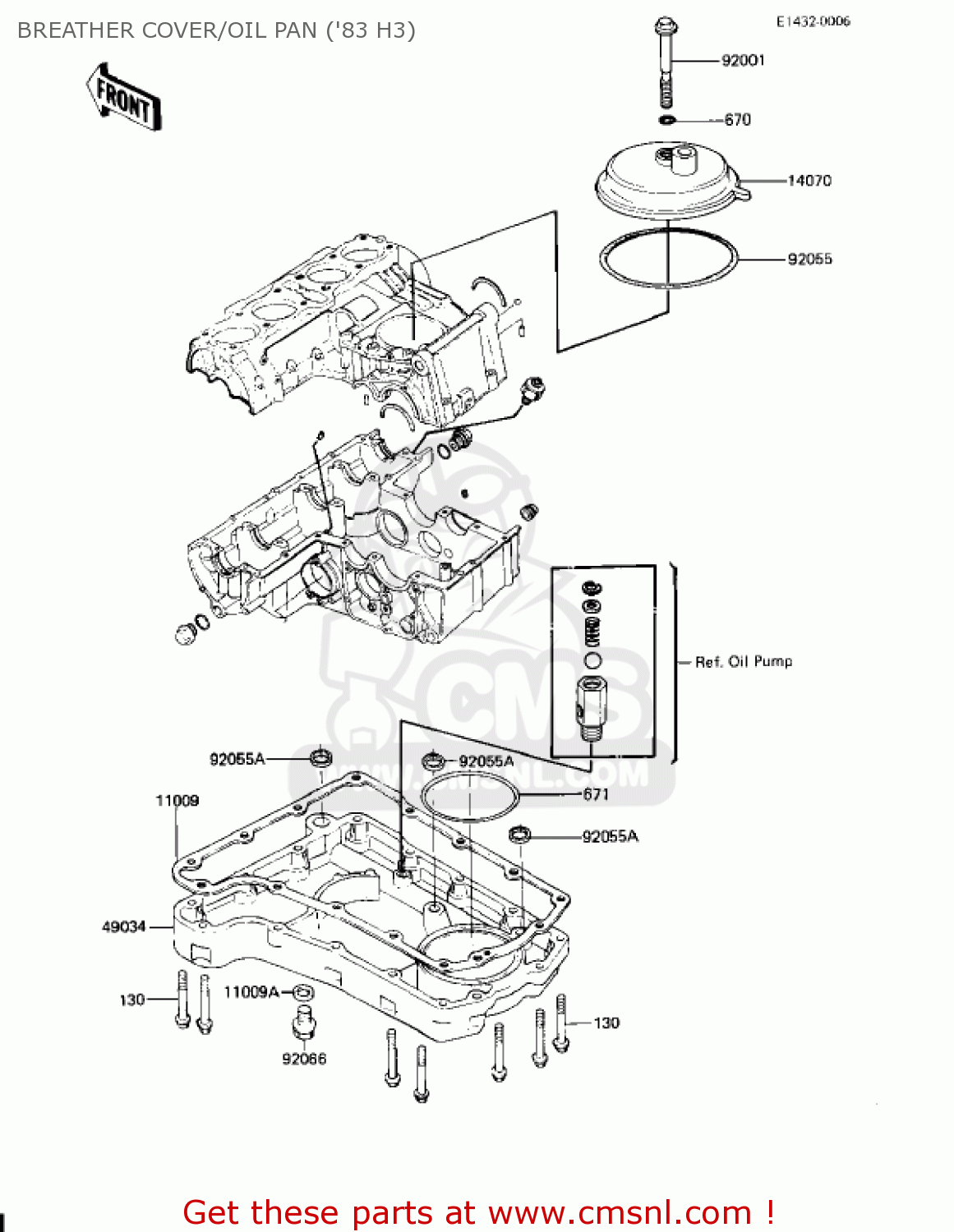

Breather cover/oil pan ('83 h3) diagram KZ650H3 CSR 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091983
ref: 11009

GASKET,OIL PAN (NAS)

€ 20.50

11009A

92065097
ref: 11009A

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

14070

140701008
ref: 14070

BODY-BREATHER

€ 25.50

49034

490345011
ref: 49034

PAN-OIL

€ 125.00

92001

92003107
ref: 92001

BOLT-HEX HEAD,8X72

€ 10.00

92055

92055052
ref: 92055

RING-O,91.6X3.4

€ 6.00

92055A

92055077
ref: 92055A

O RING

€ 4.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

670

670B1508
ref: 670

O RING,8MM

€ 1.00

671

671B2590
ref: 671

O RING,90MM

€ 6.50
