FRAME ('81-'82 H1/H2)

KZ650H3 CSR 1983 USA CANADA

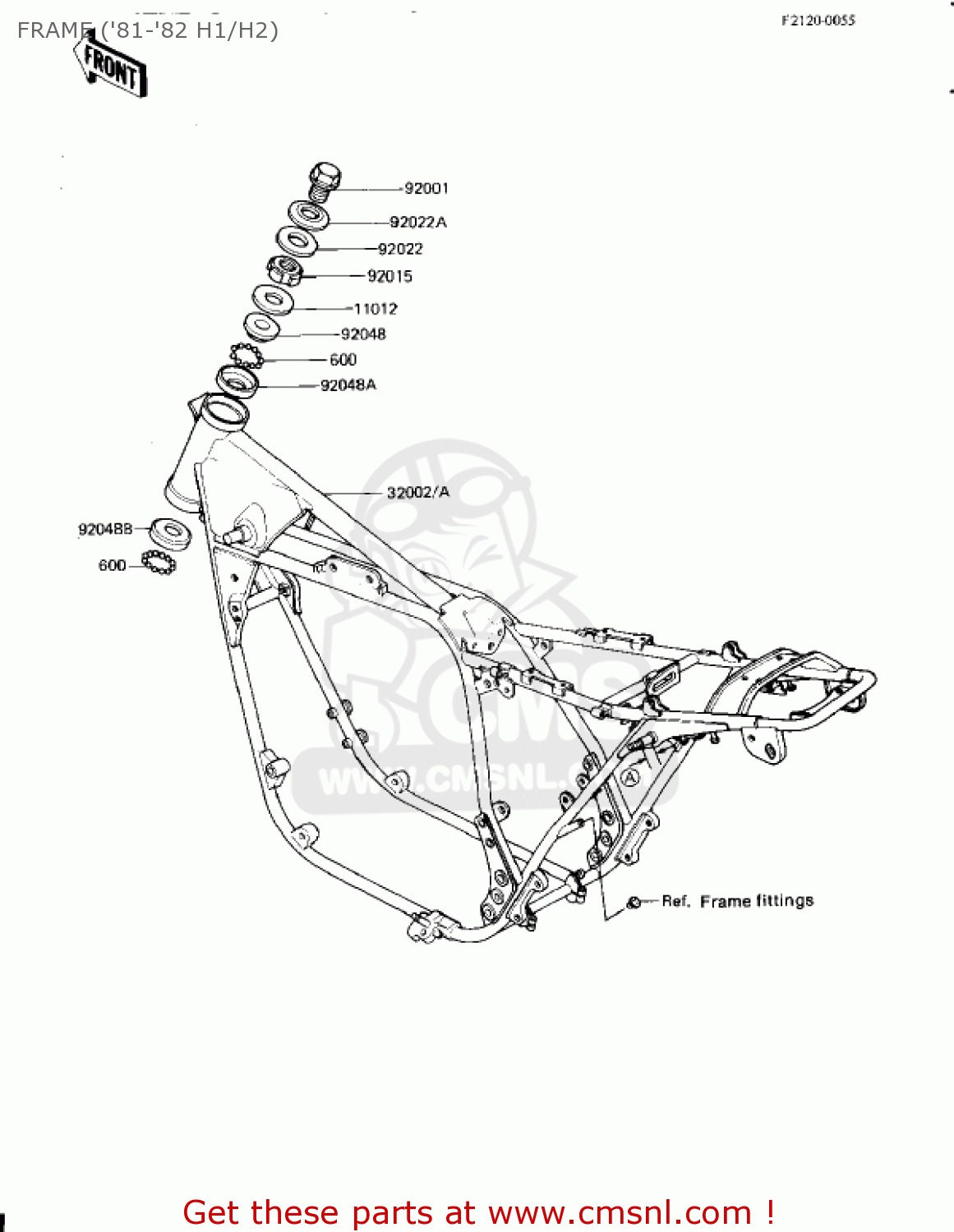

Frame ('81-'82 h1/h2) diagram KZ650H3 CSR 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

46098016
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021380
ref: 32002

FRAME-COMP

€ 1,210.00

32002A

320021504
ref: 32002A

FRAME-COMP

€ 1,133.00

92001

92007031
ref: 92001

BOLT-STEERG STEM HEAD

€ 17.50

92015

92090007
ref: 92015

NUT-STEERING STEM LCK

€ 8.00

92022

46100003
ref: 92022

WASHER,WAVE

€ 6.50

92022A

92022230
ref: 92022A

WASHER-STEERG STM HD

€ 7.50

92048

92047011
ref: 92048

CONE-STRNG STM BRNG

€ 14.50

92048A

92048006
ref: 92048A

RACE-STRNG BEARIN-STE

€ 11.50

92048B

92048008
ref: 92048B

RACE-STRNG STM BRNG

€ 16.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
