MUFFLERS ('81-'82 H1/H2)
KZ650H3 CSR 1983 USA CANADA

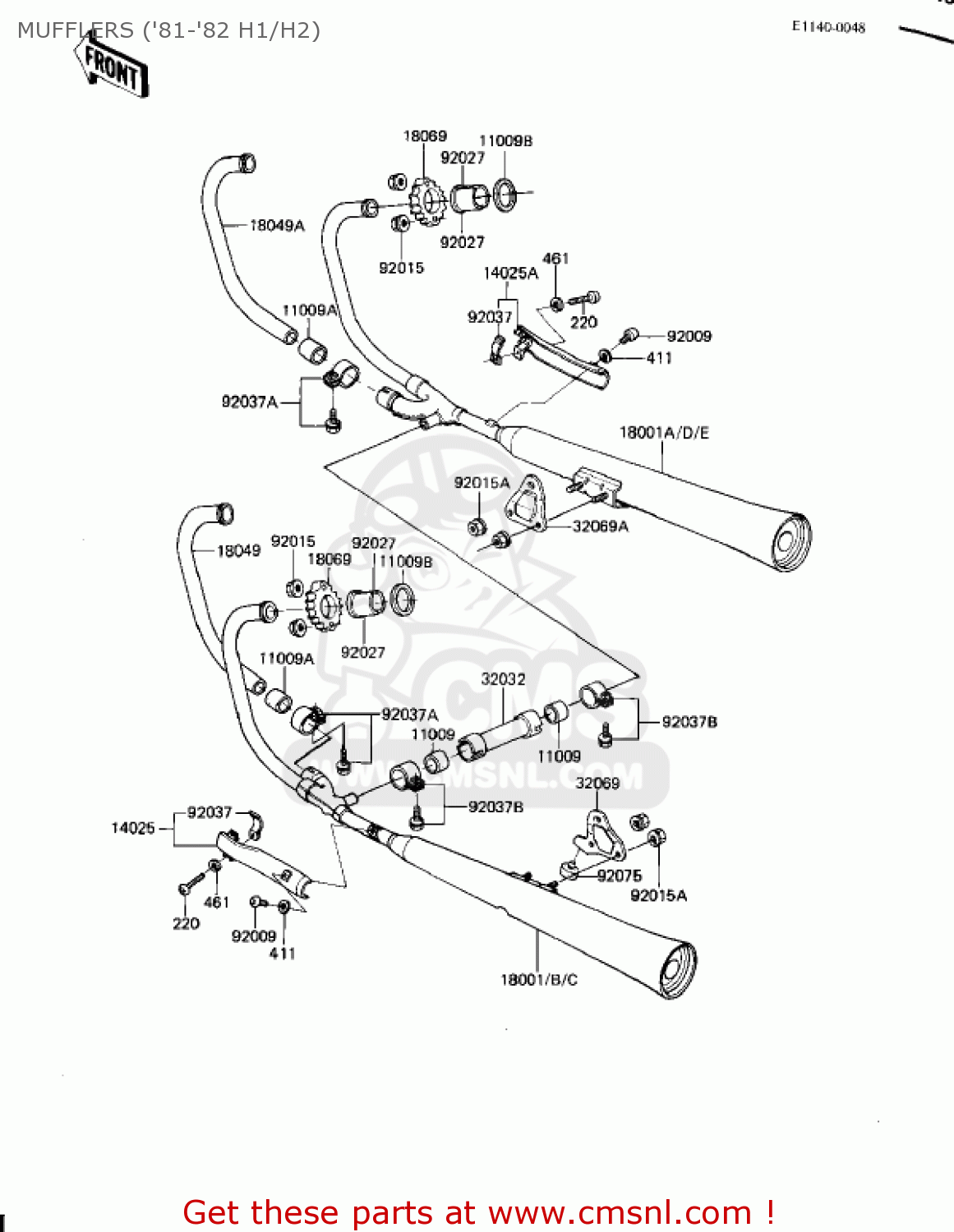

Mufflers ('81-'82 h1/h2) diagram KZ650H3 CSR 1983 USA CANADA
MUFFLERS ('81-'82 H1/H2) KZ650H3 CSR 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110601051
ref: 11009
GASKET,MUFFLER CONNEC (NAS)
€ 15.00
11009A
110091667
ref: 11009A
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009B
110091866
ref: 11009B
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
14025
140251518
ref: 14025
COVER,MUFFLER,LH
€ 21.00
14025A
140251519
ref: 14025A
COVER,MUFFLER,RH
€ 17.50
18001
180011256
ref: 18001
( - JKAKZEH1 CA01260
MUFFLER,LH
€ 617.50
18001A
180011257
ref: 18001A
( - JKAKZEH1 CA01260
MUFFLER,RH
€ 617.50
18001B
180011256
ref: 18001B
MUFFLER,LH
€ 617.50
18001C
180011256
ref: 18001C
(JKAKZEH1 CA012601 -
MUFFLER,LH
€ 617.50
18001D
180011257
ref: 18001D
MUFFLER,RH
€ 617.50
18001E
180011257
ref: 18001E
(JKAKZEH1 CA012601 -
MUFFLER,RH
€ 617.50
18049
180491162
ref: 18049
PIPE-EXHAUST,#2,CR PL
€ 102.00
18049A
180491163
ref: 18049A
PIPE-EXHAUST,#3,CR PL
€ 109.50
18069
180691006
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.00
32032
320321669
ref: 32032
PIPE,MUFFLER CONNECTI
€ 15.50
32069
320691072
ref: 32069
BRACKET,MUFFLER,L.H
€ 12.00
32069A
320691073
ref: 32069A
BRACKET,MUFFLER,R.H
€ 12.00
92009
92011039
ref: 92009
SCREW, PAN HEAD, 6X8
€ 2.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
92017013
ref: 92015A
NUT,LOCK,8MM
€ 5.50
92027
920271142
ref: 92027
COLLAR,L=14.5
€ 3.00
92037
920371205
ref: 92037
CLAMP,MUFFLER COVER
€ 5.50
92037A
920371349
ref: 92037A
CLAMP,42MM
€ 8.50
92037B
920371243
ref: 92037B
CLAMP,37MM
€ 18.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
411
411D0600
ref: 411
WASHER-PLAIN,6MM
€ 1.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
