FUEL TANK ('81-'82 H1/H2)
KZ650H3 CSR 1983 USA CANADA

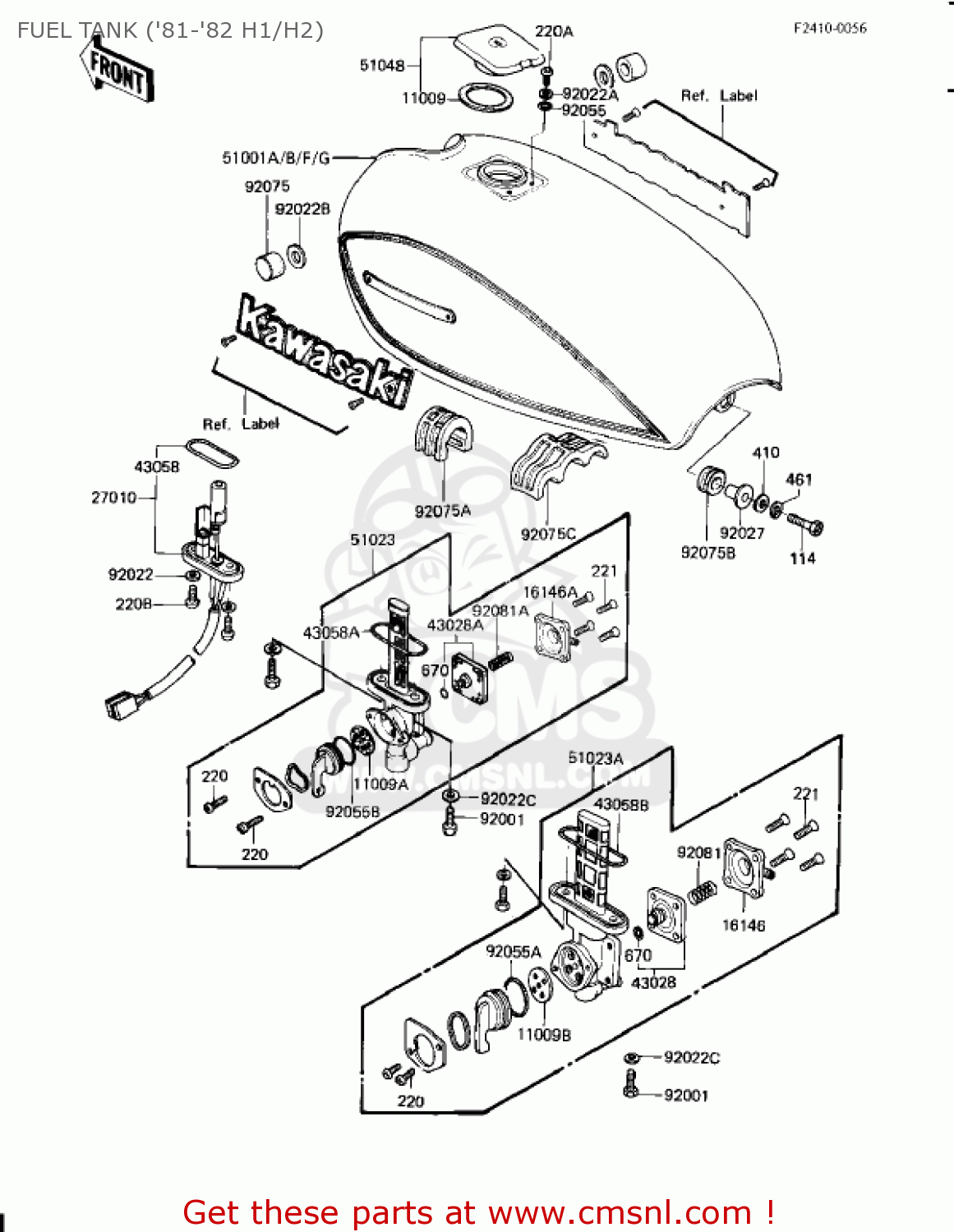

Fuel tank ('81-'82 h1/h2) diagram KZ650H3 CSR 1983 USA CANADA
FUEL TANK ('81-'82 H1/H2) KZ650H3 CSR 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091051
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 7.00
11009A
110091188
ref: 11009A
GASKET,TAP VALVE (NAS)
€ 4.00
11009B
110091194
ref: 11009B
GASKET,TAP VALVE (NAS)
€ 6.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
16146A
161461010
ref: 16146A
COVER-ASSY,TAP DIAPHR
€ 17.00
27010
270101055
ref: 27010
SWITCH,FUEL LEVEL
€ 104.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
43028A
430281021
ref: 43028A
DIAPHRAGM,TAP
€ 19.50
43058
430581004
ref: 43058
O RING,FUEL LEVL SW
€ 5.50
43058A
51039003
ref: 43058A
'O' RING
€ 4.00
43058B
51039010
ref: 43058B
RING,TAP FLANGED
€ 4.50
51001A
5100110578G
ref: 51001A
FUEL TANK,EBONY
€ 594.00
51001B
5100110578K
ref: 51001B
FUEL TANK,SUNDANCE BLUE
€ 593.00
51001F
510015137E2
ref: 51001F
FUEL TANK,LUMINOUS MIDNIGHT RED
€ 593.00
51001G
5100151378G
ref: 51001G
US
FUEL TANK,EBONY
€ 593.00
51023
510231157
ref: 51023
TAP-ASSY,FUEL
€ 75.50
51023A
510231039
ref: 51023A
TAP-ASSY,FUEL
€ 107.00
51048
510481018
ref: 51048
CAP-ASSY-TANK
€ 75.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
920221023
ref: 92022
WASHER,5.2X10X1.5
€ 2.50
92022A
920221038
ref: 92022A
WASHER,PLAIN
€ 2.50
92022B
92022137
ref: 92022B
WASHER,10.2X24X1
€ 2.50
92022C
92022183
ref: 92022C
WASHER,6.2X11X1.5
€ 2.50
92027
920271116
ref: 92027
COLLAR,L=16.3
€ 6.00
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551027
ref: 92055A
RING-O,TAP LEVER
€ 3.50
92055B
920551085
ref: 92055B
'O' RING,FUEL TAP LEV
€ 3.00
92075
92075044
ref: 92075
DAMPER,FUEL TANK
€ 3.00
92075A
920751065
ref: 92075A
DAMPER,FUEL TANK
€ 8.00
92075B
920751086
ref: 92075B
DAMPER
€ 3.50
92075C
920751245
ref: 92075C
DAMPER,FUEL TANK
€ 19.00
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
92081A
920811240
ref: 92081A
SPRING,DIAPHRAGM VLV
€ 2.50
114
115G0830
ref: 114
BOLT-SMALL-UPSET,8X30
€ 3.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
220B
220B0514
ref: 220B
ACREW-PAN HEAD,5X14
€ 2.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
