CHASSIS ELECTRICAL EQUIPMENT ('8
KZ650H3 CSR 1983 USA CANADA

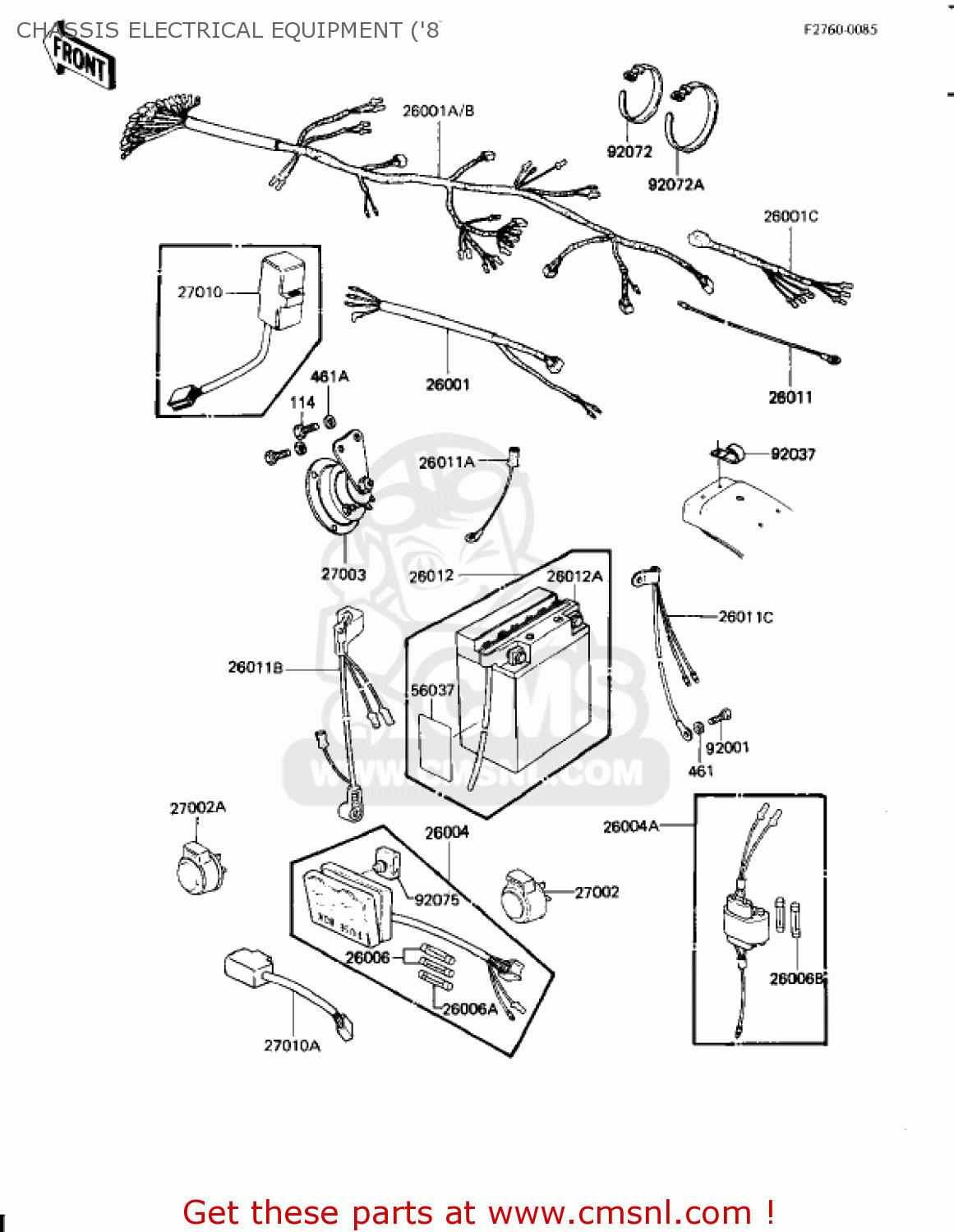

Chassis electrical equipment ('8 diagram KZ650H3 CSR 1983 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ650H3 CSR 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
26001
260011117
ref: 26001
WIRING HARNESS,CENTER
€ 25.00
26001A
260011198
ref: 26001A
HARNESS,MAIN
€ 169.50
26001B
260011301
ref: 26001B
HARNESS,MAIN
€ 194.00
26001C
26002063
ref: 26001C
WIRING HARNESS, REAR
€ 20.00
26004
260041006
ref: 26004
FUSE-ASSY
€ 57.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26006B
260061002
ref: 26006B
FUSE,10A,L=30M/M
€ 3.00
26011
26011063
ref: 26011
WIRE-LEAD,L=185
€ 5.00
26011A
260111100
ref: 26011A
WIRE-LEAD,ACCESSORY G
€ 7.00
26011B
260111101
ref: 26011B
BATTERY WIRE LEAD
€ 17.00
26011C
260111102
ref: 26011C
BATTERY WIRE LEAD,GROUND
€ 20.00
26012
260121004
ref: 26012
US
BATTERY 12V 12AH
€ 97.00
26012A
260121005
ref: 26012A
CN
BATTERY,12V 12AH
€ 97.00
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
27003076
ref: 27003
HORN
€ 84.00
27010
270101015
ref: 27010
SWITCH,FUEL CHECK
€ 47.00
27010A
28019001
ref: 27010A
SWITCH,OUTAGE INDICTR
€ 46.00
56037
560401036
ref: 56037
US
WARNING, BATTERY
€ 2.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072056
ref: 92072A
BAND,RUBBER
€ 3.00
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
