IGNITION SWITCH/LOCKS/REFLECTORS
KZ650H2 CSR 1982 USA CANADA

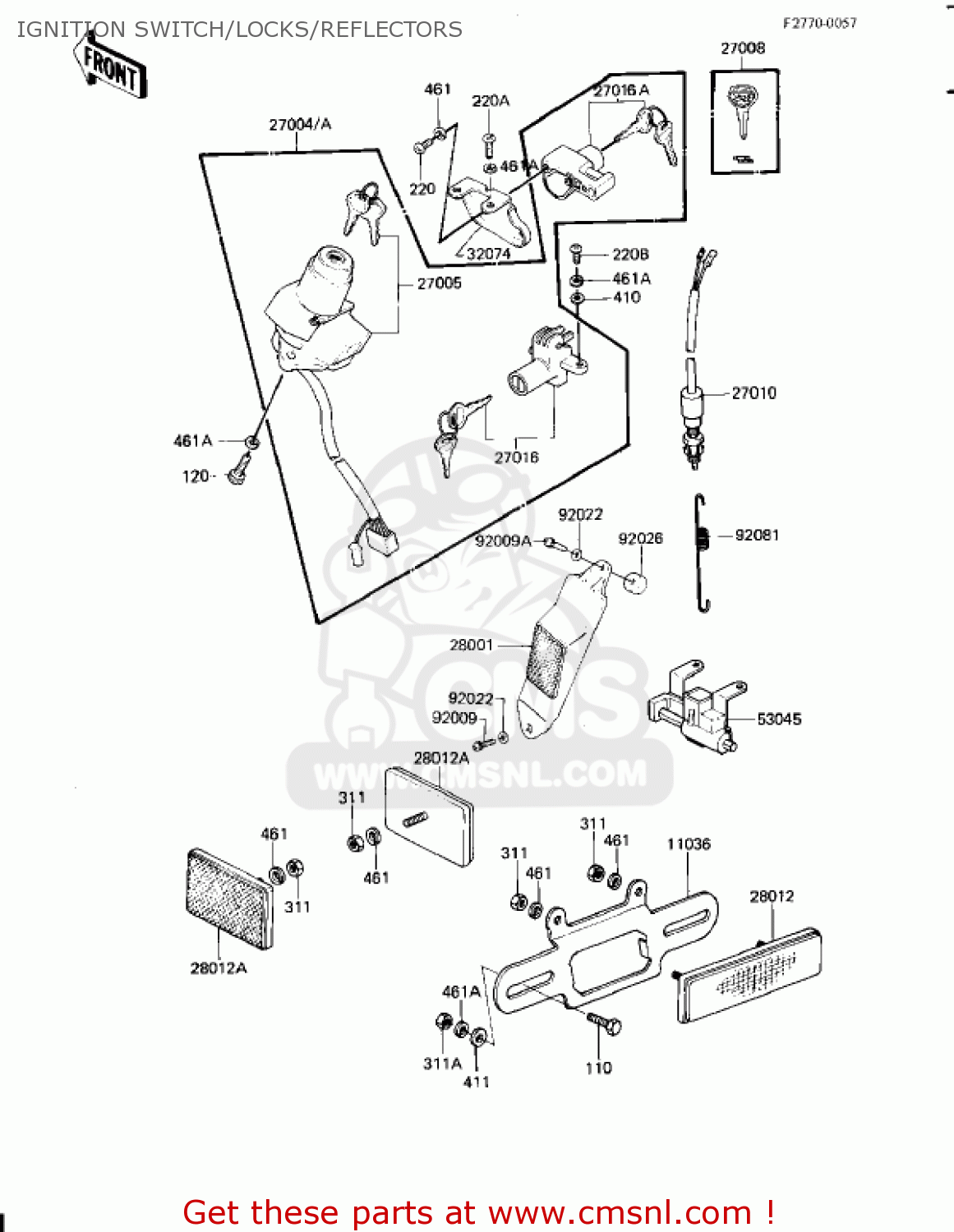

Ignition switch/locks/reflectors diagram KZ650H2 CSR 1982 USA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361150
ref: 11036
REFLECTOR BRACKET,REAR
€ 16.00
27004
270045150
ref: 27004
SWITCH-ASSY
€ 339.50
27004A
270045150
ref: 27004A
SWITCH-ASSY
€ 339.50
27005
270055024
ref: 27005
SWITCH ASSY IGNITION
€ 249.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27016
270165010
ref: 27016
LOCK-ASSY,SEAT
€ 72.50
27016A
270165038
ref: 27016A
LOCK-ASSY,HELMET
€ 67.50
28001
280011015
ref: 28001
REFLECTOR-ASSY-REFLEX
€ 31.50
28012
280121005
ref: 28012
REFLECTOR-REFLEX,RR
€ 16.50
28012A
280121009
ref: 28012A
REFLECTOR-REFLEX,FR
€ 16.00
32074
320741022
ref: 32074
BRACKET-LOCK,HELMET
€ 6.50
53045
530451001
ref: 53045
HOOK ASSY,HELMET
€ 31.00
92009
920091099
ref: 92009
SCREW,PAN HEAD,5X16
€ 2.50
92009A
920091100
ref: 92009A
SCREW,PAN HEAD,5X30
€ 0.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92026
920261077
ref: 92026
SPACER,5.2X23X10
€ 3.00
92081
27011015
ref: 92081
SPRING,BRAKE LAMP SW
€ 6.50
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
120
120S0616
ref: 120
BOLT-SOCKET,6X16
€ 1.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
€ 1.00
220B
220B0614
ref: 220B
SCREW-PAN HEAD,6X14
€ 2.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
311A
311B0600
ref: 311A
NUT,6MM
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
