FOOTRESTS ('83 H3)
KZ650H2 CSR 1982 USA CANADA

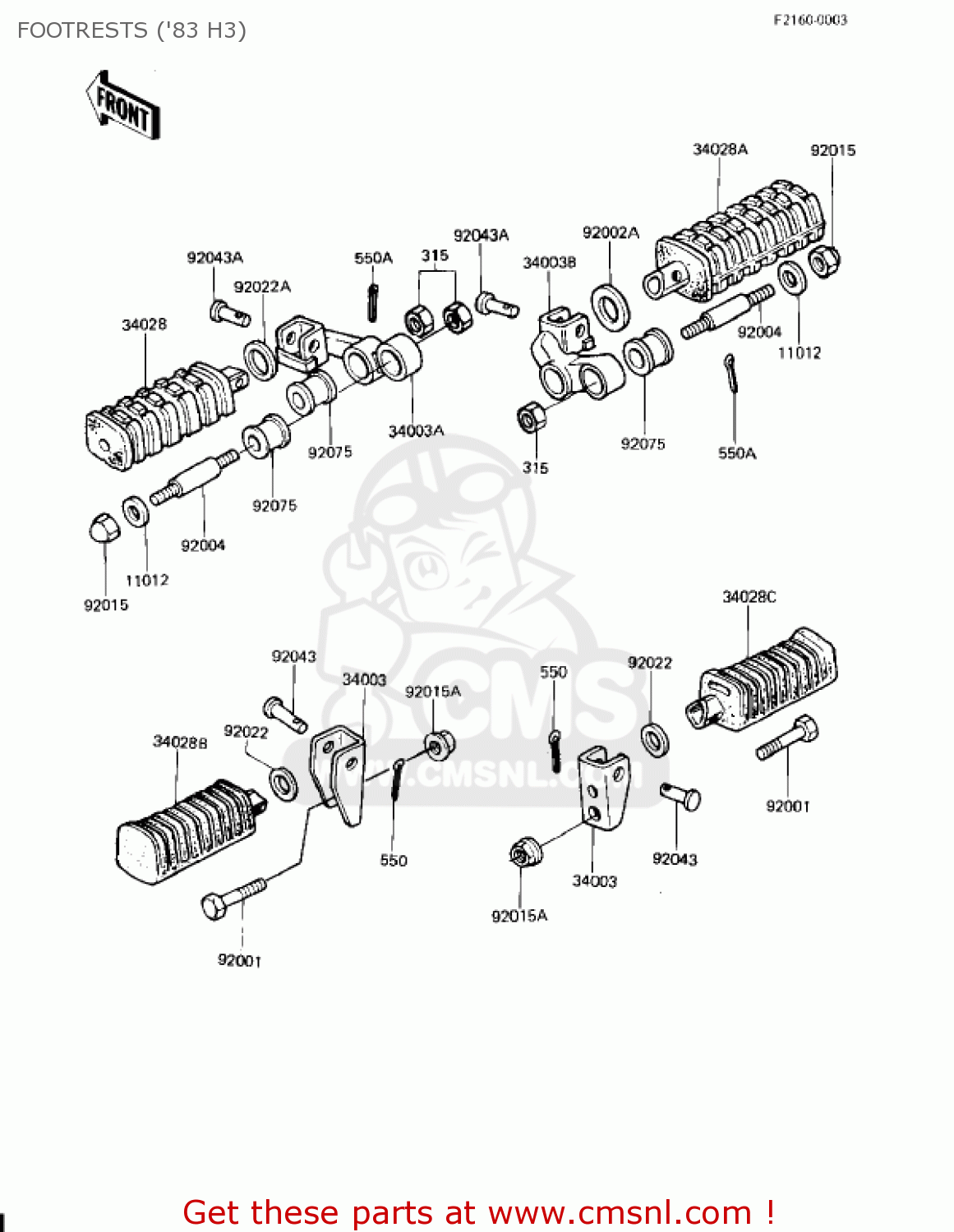

Footrests ('83 h3) diagram KZ650H2 CSR 1982 USA CANADA
FOOTRESTS ('83 H3) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
92102010
ref: 11012
CAP,STEP
€ 4.50
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031063
ref: 34003A
HOLDER-STEP,FR,LH
€ 40.00
34003B
340031064
ref: 34003B
BRACKET,FTRST STEP RH
€ 27.50
34028
340281018
ref: 34028
STEP,FR FOOTREST
€ 41.50
34028A
340281018
ref: 34028A
STEP,FR FOOTREST
€ 41.50
34028B
340281024
ref: 34028B
STEP,RR,LH
€ 65.50
34028C
340281025
ref: 34028C
STEP,RR,RH
€ 46.50
92001
920011252
ref: 92001
BOLT,HEX HEAD,10X35
€ 3.50
92004
92004048
ref: 92004
STUD-FOOTREST BAR FIT
€ 8.00
92015
920151133
ref: 92015
NUT,CAP,LOCK,8MM
€ 5.00
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022181
ref: 92022
WASHER,22.5X30X2.6
€ 3.50
92022A
92022250
ref: 92022A
WASHER,PLAIN
€ 3.00
92043
920431464
ref: 92043
PIN
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
92075
92075293
ref: 92075
DAMPER
€ 5.50
315
315B1000
ref: 315
NUT,10MM
€ 0.50
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
