FRAME FITTINGS ('81-'82 H1/H2)
KZ650H2 CSR 1982 USA CANADA

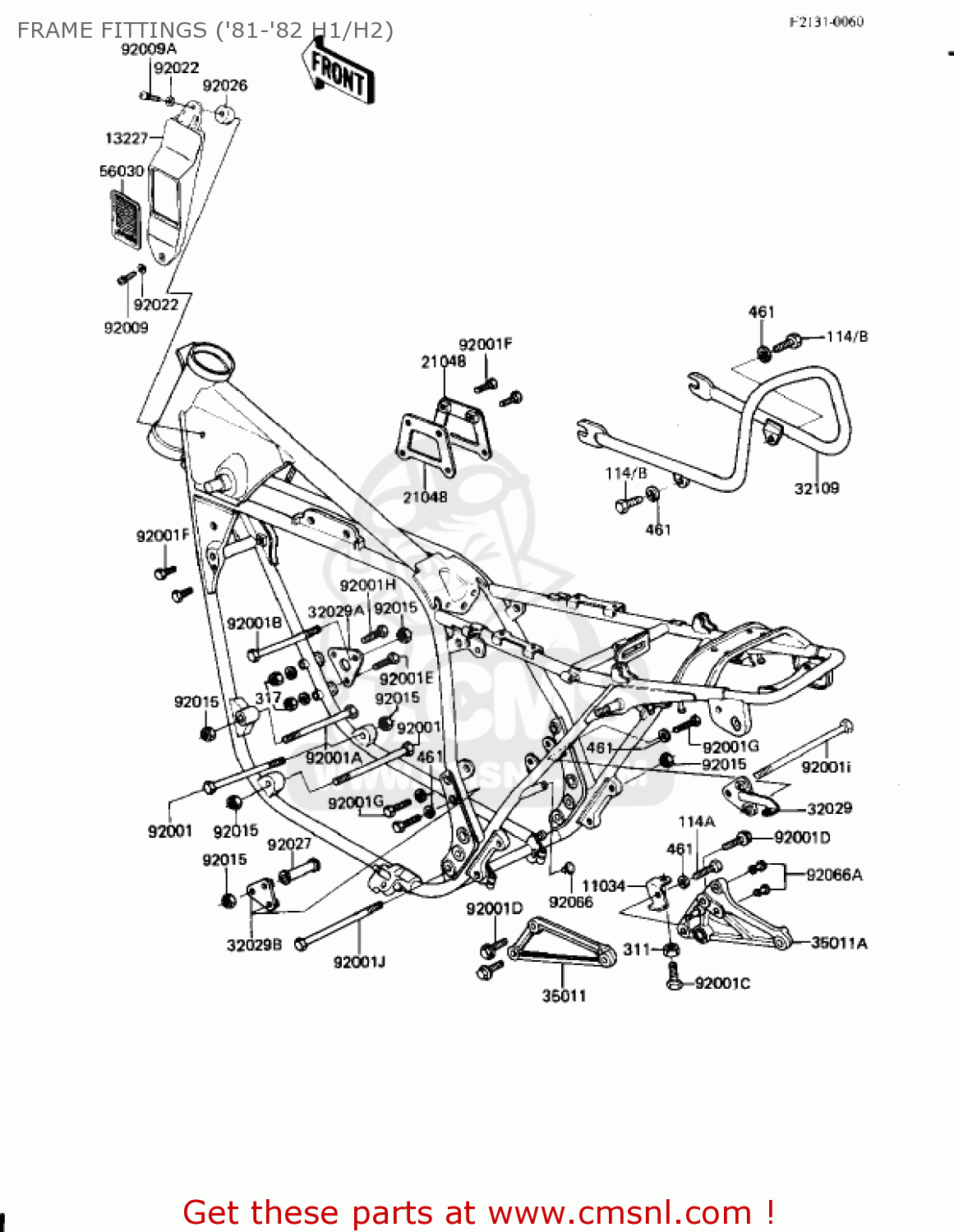

Frame fittings ('81-'82 h1/h2) diagram KZ650H2 CSR 1982 USA CANADA
FRAME FITTINGS ('81-'82 H1/H2) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341824
ref: 11034
BRACKET,BRAKE PEDAL
€ 7.50
13227
132271001
ref: 13227
HOUSING,LABEL
€ 12.00
21048
210481001
ref: 21048
PLATE-COIL
€ 14.00
32029
320291129
ref: 32029
BRACKET-ENGINE,RR,RH
€ 11.50
32029A
32030063
ref: 32029A
PLATE, FRONT ENG. MTY
€ 3.50
32029B
32030064
ref: 32029B
PLATE,REAR ENG.MTY,LH
€ 6.50
32109
321091016
ref: 32109
GRIP,FRAME
€ 50.50
35011
350111080
ref: 35011
STAY,MUFFLER,LH
€ 51.50
35011A
350111081
ref: 35011A
STAY,MUFFLER,RH
€ 47.50
56030
560301006
ref: 56030
LABEL
€ 7.00
92001
920011048
ref: 92001
BOLT, HEX HEAD, 10X84
€ 4.50
92001A
920011049
ref: 92001A
BOLT, HEX HEAD, 10X72
€ 4.00
92001B
920011050
ref: 92001B
BOLT, HEX HEAD, 10X46
€ 3.50
92001C
920011090
ref: 92001C
BOLT,HEX HEAD,6X25
€ 2.50
92001D
920011095
ref: 92001D
BOLT,8X28
€ 4.50
92001E
920011581
ref: 92001E
BOLT,FLANGED,8X60
€ 3.50
92001F
92001137
ref: 92001F
BOLT,HEX HEAD,6M/M
€ 4.00
92001G
920011578
ref: 92001G
BOLT,FLANGED,8X40
€ 4.00
92001H
920011397
ref: 92001H
BOLT,8X63
€ 1.50
92001I
92091023
ref: 92001I
BOLT-ENGINE MOUNTING
€ 15.50
92001J
92091032
ref: 92001J
BOLT,HEX HEAD,10X219
€ 14.50
92009
920091099
ref: 92009
SCREW,PAN HEAD,5X16
€ 2.50
92009A
920091100
ref: 92009A
SCREW,PAN HEAD,5X30
€ 0.50
92015
920151429
ref: 92015
NUT,10MM
€ 4.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92026
920261077
ref: 92026
SPACER,5.2X23X10
€ 3.00
92027
92027275
ref: 92027
COLLAR,L=54
€ 12.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92066A
920661080
ref: 92066A
PLUG,RUBBER
€ 2.50
114
115B0822
ref: 114
BOLT-SMALL-UPSET,8X22
€ 2.00
114A
115G0835
ref: 114A
BOLT HEX,HEAD,8X35
€ 3.00
114B
114N0818
ref: 114B
BOLT-SMALL,8X18
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
