CARBURETOR PARTS (KZ650-H1)
KZ650H2 CSR 1982 USA CANADA

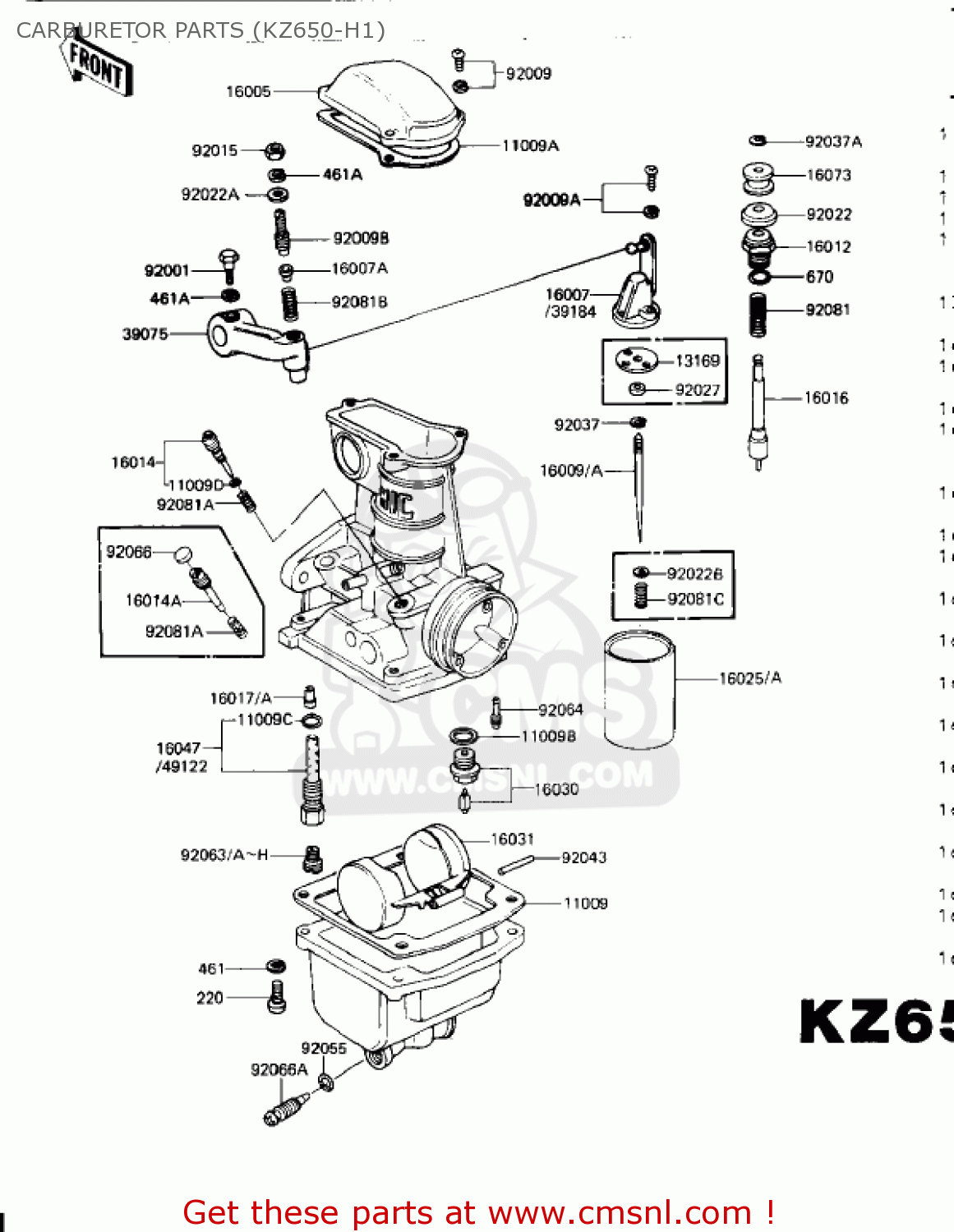

Carburetor parts (kz650-h1) diagram KZ650H2 CSR 1982 USA CANADA
CARBURETOR PARTS (KZ650-H1) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091563
ref: 11009
CN
GASKET,FLOAT CHAMBER (NAS)
€ 14.00
11009A
16019031
ref: 11009A
GASKET,CHAMBER,TOP (NAS)
€ 24.50
11009B
16029004
ref: 11009B
WASHER-FLOAT VLV SEAT
€ 2.50
11009C
16038016
ref: 11009C
GASKET,O-RING
€ 2.50
11009D
16038022
ref: 11009D
CN
GASKET,O-RING
€ 4.50
13169
131691107
ref: 13169
US
NEEDLE JET PLATE
€ 5.50
16005
16005027
ref: 16005
TOP,MIXING CHAMBER
€ 15.50
16007
16007028
ref: 16007
CN
BRACKET,THROTTLE VALV
€ 41.00
16007A
16057002
ref: 16007A
SEAT-SPRING
€ 6.00
16009
160091013
ref: 16009
CN
NEEDLE-JET,5CN15
€ 28.00
16009A
160091048
ref: 16009A
US
JET,NEEDLE,5CL30
€ 22.00
16012
16012015
ref: 16012
CAP-STARTER PLUNGER
€ 8.50
16014
160141006
ref: 16014
CN
SCREW-PILOT AIR
€ 18.00
16014A
160141020
ref: 16014A
PILOT ADJUSTING SCREW
€ 9.00
16016
16016021
ref: 16016
PLUNGER,STARTER
€ 26.00
16017
160171021
ref: 16017
CN
NEEDLE JET,O-4
€ 24.50
16017A
160171034
ref: 16017A
US
JET-NEEDLE,AO-5
€ 38.00
16025
160251006
ref: 16025
CN
VALVE, THROTTLE
€ 50.50
16025A
160251025
ref: 16025A
US
THROTTLE VALVE,CA1.75
€ 57.50
16030
160301001
ref: 16030
VALVE-FLOAT,2.0
€ 40.50
16031
16031031
ref: 16031
FLOAT
€ 114.50
16047
16047005
ref: 16047
CN
BLEED PIPE
€ 16.00
16073
16073014
ref: 16073
COLLAR,STARTER PLUNGE
€ 5.50
39075
390751001
ref: 39075
LEVER,THROTTLE
€ 25.00
39184
391841001
ref: 39184
US
THROTTLE VALVE BRACKET
€ 29.00
49122
491221006
ref: 49122
US
BLEED PIPE
€ 17.00
92001
16067006
ref: 92001
BOLT-HEX HEAD,5X14
€ 10.50
92009
223B0414
ref: 92009
SCREW PAN-WS-CROS
€ 2.50
92009A
16033031
ref: 92009A
SCREW, PAN HEAD, 3X14
€ 3.50
92009B
16046012
ref: 92009B
SCREW, SLOTTED
€ 13.50
92015
16003013
ref: 92015
NUT,5M/M
€ 6.00
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92022A
16039016
ref: 92022A
WASHER,PLAIN
€ 3.50
92022B
920221024
ref: 92022B
US
WASHER,THROTTLE VALVE
€ 4.50
92027
920271103
ref: 92027
US
RING,JET NEEDLE
€ 4.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16076003
ref: 92037A
CLAMP
€ 4.50
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92063
920631033
ref: 92063
CN
JET-MAIN,#A100R
€ 17.00
92063A
920631028
ref: 92063A
CN
JET-MAIN,#A102.5R
€ 10.00
92063B
920631042
ref: 92063B
CN
JET-MAIN,#A105R
€ 10.50
92063C
92063073
ref: 92063C
CN
JET-MAIN,#107.5R
€ 9.50
92063D
92063094
ref: 92063D
US
JET-MAIN,#87.5R
€ 11.00
92063E
920631029
ref: 92063E
US
JET-MAIN,#A90R
€ 10.50
92063F
920631031
ref: 92063F
US
MAIN JET,#95R
€ 10.00
92063G
920631035
ref: 92063G
(RACING USE ONLY)
MAIN JET,#97.5R
€ 10.00
92063H
920631085
ref: 92063H
US
JET,MAIN,#A92.5R
€ 8.00
92064
920641018
ref: 92064
JET-PILOT,#A15
€ 13.00
92066
920661051
ref: 92066
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066A
920661064
ref: 92066A
SCREW,DRAIN
€ 8.50
92081
16013008
ref: 92081
SPRING-STARTER PLUNG
€ 4.50
92081A
16022007
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
92081B
16040026
ref: 92081B
SPRING
€ 3.50
92081C
920811072
ref: 92081C
US
NEEDLE JET SPRING
€ 2.50
220
220B0416
ref: 220
SCREW-PAN-CROS
€ 2.00
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
