CRANKCASE BOLT & STUD PATTERN ('

KZ650H2 CSR 1982 USA CANADA

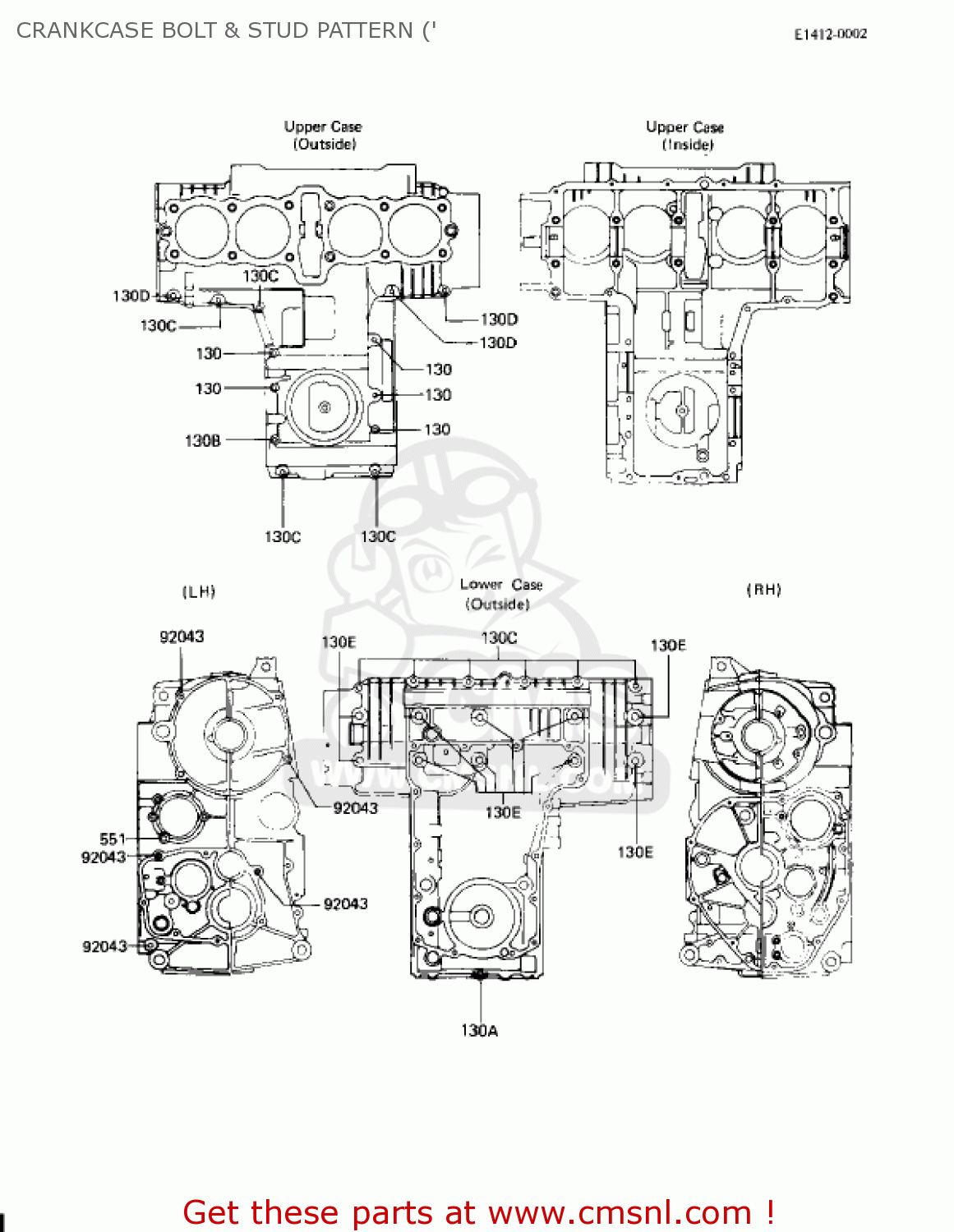

Crankcase bolt & stud pattern (' diagram KZ650H2 CSR 1982 USA CANADA

CRANKCASE BOLT & STUD PATTERN (' KZ650H2 CSR 1982 USA CANADA

CRANKCASE BOLT & STUD PATTERN (' KZ650H2 CSR 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

130

130G06100
ref: 130

BOLT-FLANGED,6X100

€ 2.50

130A

130G06105
ref: 130A

BOLT-FLANGED,6X105

€ 2.00

130B

130G06115
ref: 130B

BOLT-FLANGED,6X115

€ 2.50

130C

130G0640
ref: 130C

BOLT,FLANGED,6X40

€ 0.50

130D

130G0650
ref: 130D

BOLT-FLANGED,6X50

€ 1.00

130E

130P0895
ref: 130E

BOLT-FLANGED,8X95

€ 7.00

551

551A0614
ref: 551

PIN,DOWEL, 6X14

€ 2.50
