ENGINE COVERS ('81-'82 H1/H2)
KZ650H2 CSR 1982 USA CANADA

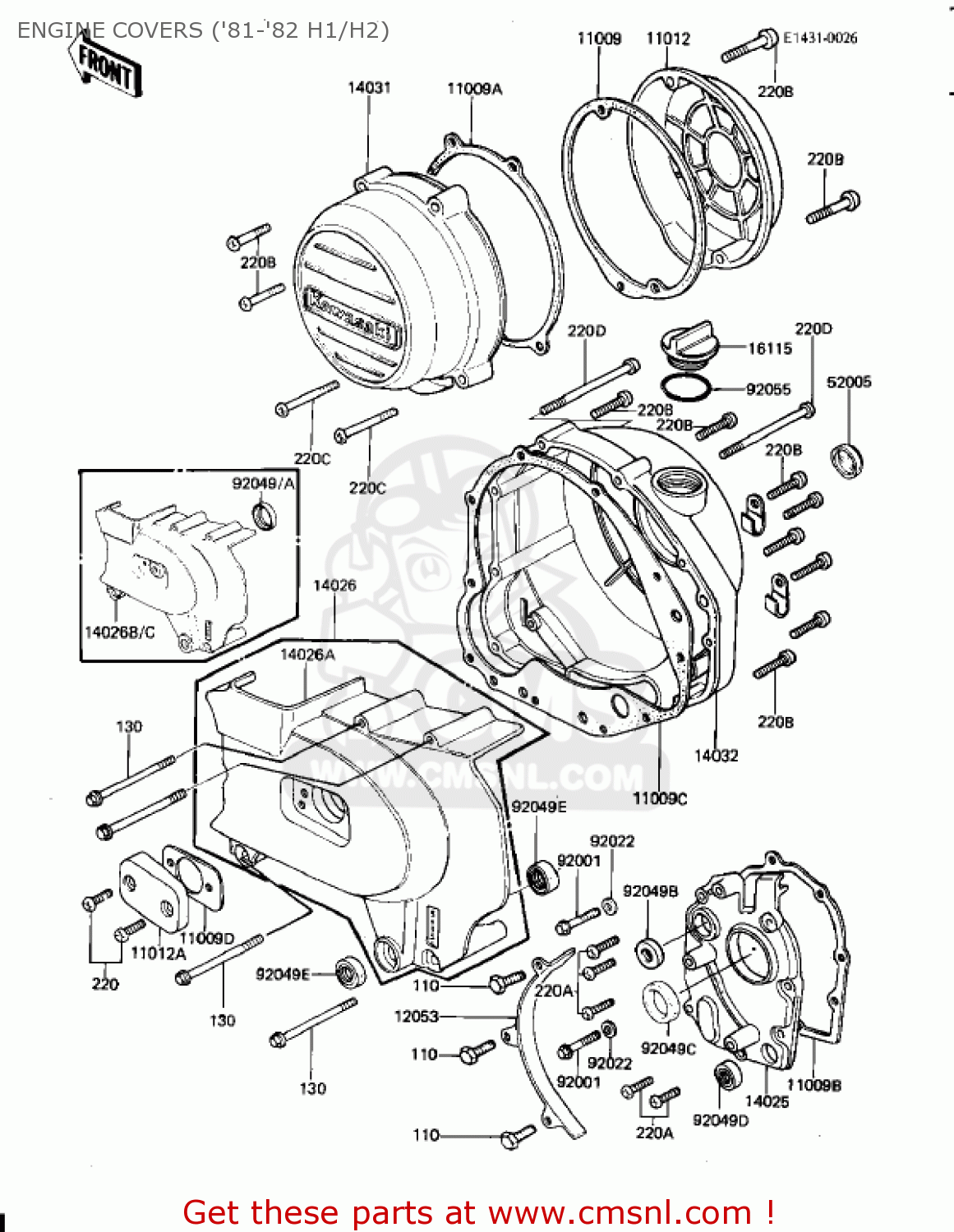

Engine covers ('81-'82 h1/h2) diagram KZ650H2 CSR 1982 USA CANADA
ENGINE COVERS ('81-'82 H1/H2) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110601053
ref: 11009
GASKET,PULSING COIL C (NAS)
€ 4.50
11009A
110091987
ref: 11009A
GASKET,GENERATOR COVE (NAS)
€ 7.50
11009B
110601056
ref: 11009B
GASKET,TRANSMISSION C (NAS)
€ 8.50
11009C
14046035
ref: 11009C
GASKET, R.H.ENG COVER (MCA)
€ 20.00
11009D
14049004
ref: 11009D
GASKET,CLUTCH ADJUST (MCA)
€ 4.00
11012
110121098
ref: 11012
CAP,PULSING COIL
€ 62.00
11012A
1402800680
ref: 11012A
CAP,CLUTCH ADJUSTING
€ 18.00
12053
120531006
ref: 12053
GUIDE-CHAIN
€ 6.50
14025
14024011
ref: 14025
COVER,MISSION
€ 85.00
14026A
1402603580
ref: 14026A
COVER,ENG SPROCKT,BUF
€ 160.50
14026B
140261053
ref: 14026B
COVER-CHAIN
€ 82.00
14026C
140261053
ref: 14026C
(JKAKZEH1 CA012601 -
COVER-CHAIN
€ 82.00
14031
140311040
ref: 14031
COVER-GENERATOR
€ 198.00
14032
140321037
ref: 14032
COVER,CLUTCH,BUFFING
€ 93.50
16115
16115013
ref: 16115
PLUG-OIL FILLER
€ 13.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92001
92001164
ref: 92001
BOLT,6X35
€ 3.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92049
920491003
ref: 92049
OIL SEAL,CLUTCH
€ 8.00
92049A
920491003
ref: 92049A
(JKAKZEH1 CA012601 -
OIL SEAL,CLUTCH
€ 8.00
92049B
920491017
ref: 92049B
SEAL-OIL,SD-8187
€ 6.50
92049C
92050024
ref: 92049C
OIL SEAL SC325210
€ 5.00
92049D
92051005A
ref: 92049D
OIL SEAL,TB13225.5
€ 5.50
92049E
92051005A
ref: 92049E
( - JKAKZEH1 CA01260
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
110
112B0614
ref: 110
BOLT-UPSET 6X14
€ 2.50
130
130G0670
ref: 130
BOLT-FLANGED,6X70
€ 0.50
220
220B0618
ref: 220
SCREW-PAN HEAD,6X18
€ 2.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
€ 2.50
220B
220B0630
ref: 220B
SCREW-PAN HEAD,6X30
€ 2.50
220C
220B0640
ref: 220C
SCREW-PAN HEAD,6X40
€ 2.00
220D
220B0680
ref: 220D
SCREW-PAN HEAD,6X80
€ 3.00
