HEADLIGHT ('81-'82 H1/H2)
KZ650H2 CSR 1982 USA CANADA

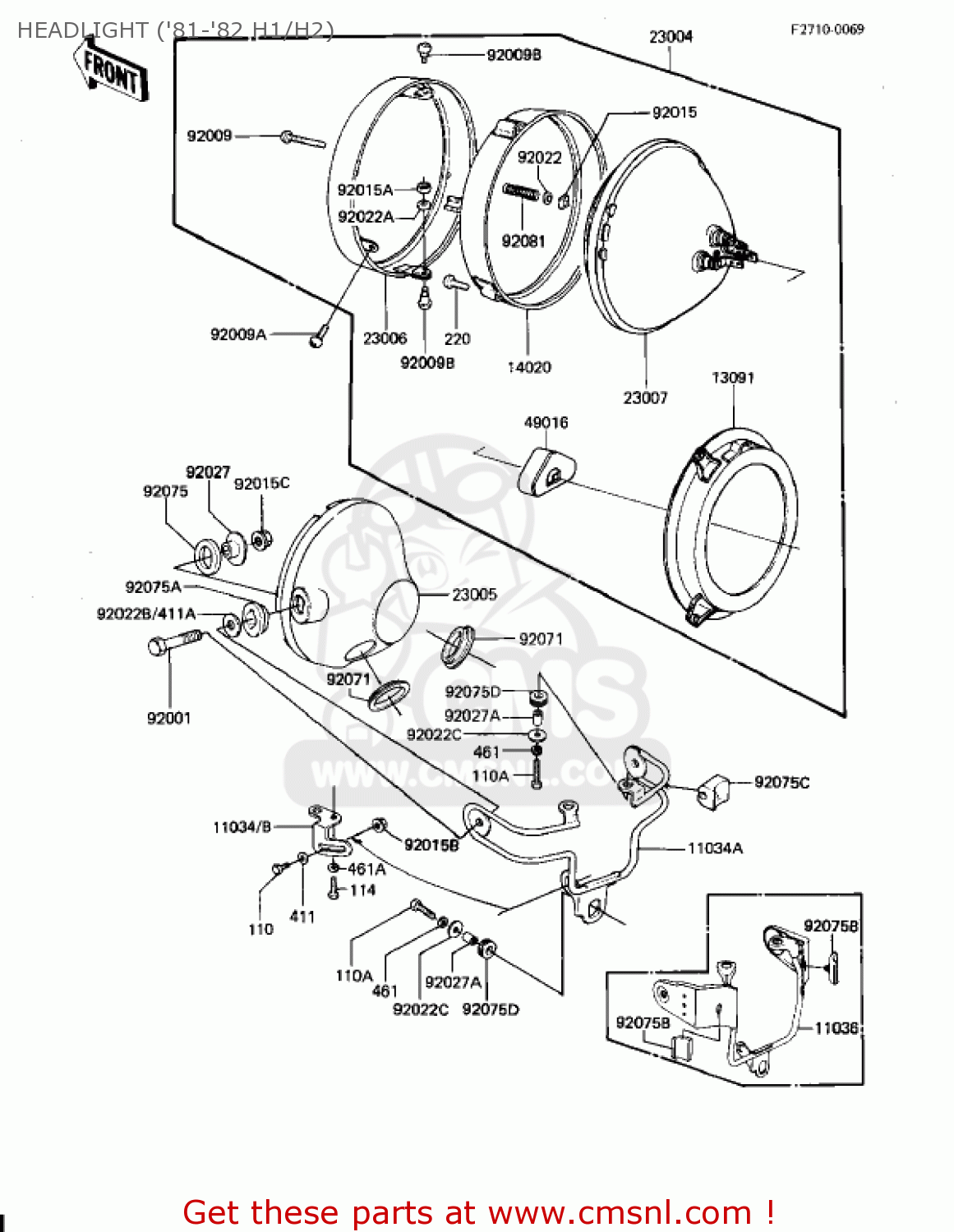

Headlight ('81-'82 h1/h2) diagram KZ650H2 CSR 1982 USA CANADA
HEADLIGHT ('81-'82 H1/H2) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341676
ref: 11034
BRACKET,HEAD LAMP
€ 8.00
11034A
110341751
ref: 11034A
HEADLAMP BRACKET
€ 32.50
11034B
110341792
ref: 11034B
BRACKET,HEAD LAMP
€ 7.00
11036
110361173
ref: 11036
HEADLAMP BRACKET,A
€ 67.00
13091
23074001
ref: 13091
HOLDER,HEAD LAMP
€ 28.00
14020
23072001
ref: 14020
RETAINER,HEAD LAMP
€ 26.00
23004
230041052
ref: 23004
HEADLAMP
€ 154.00
23005
230051016
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 136.50
23006
23006038
ref: 23006
RIM-LAMP
€ 56.50
23007
230071006
ref: 23007
SEALED BEAM UNIT
€ 74.50
49016
490161009
ref: 49016
HEADLAMP DUST COVER
€ 3.50
92001
92007024
ref: 92001
BOLT,10MM
€ 4.50
92009
23019021
ref: 92009
SCREW-FORCUS ADJUST
€ 3.00
92009A
23019022
ref: 92009A
SCREW-SPECIAL,5X14
€ 1.50
92009B
23019023
ref: 92009B
SCREW-PAN HEAD,5X12
€ 3.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151078
ref: 92015B
NUT,6M/M
€ 1.50
92015C
920151428
ref: 92015C
NUT,FLANGED,10MM
€ 3.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021012
ref: 92022A
WASHER
€ 3.00
92022B
920221054
ref: 92022B
HEADLAMP WASHER
€ 6.50
92022C
92022125
ref: 92022C
WASHER,6.5X20X1.6
€ 1.00
92027
23052011
ref: 92027
COLLAR,HEAD LAMP
€ 8.50
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92071
920711008
ref: 92071
GROMMET
€ 4.00
92075
23066021
ref: 92075
DAMPER
€ 6.00
92075A
23066022
ref: 92075A
DAMPER
€ 6.00
92075B
920751243
ref: 92075B
DAMPER
€ 3.50
92075C
920751257
ref: 92075C
DAMPER RUBBER,LAMP
€ 3.50
92075D
92075209
ref: 92075D
DAMPER RUBBER
€ 3.00
92081
23014005
ref: 92081
SPRING-FOCUS ADJUST
€ 2.50
110
112B0614
ref: 110
BOLT-UPSET 6X14
€ 2.50
110A
112G0625
ref: 110A
BOLT-UPSET,6X25
€ 4.00
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
220
220B0312
ref: 220
SCREW-PAN CROS,3X12
€ 2.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
411A
411D1000
ref: 411A
WASHER-PLAIN,10MM
€ 3.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
