BATTERY CASE/TOOL CASE ('83 H3)
KZ650H2 CSR 1982 USA CANADA

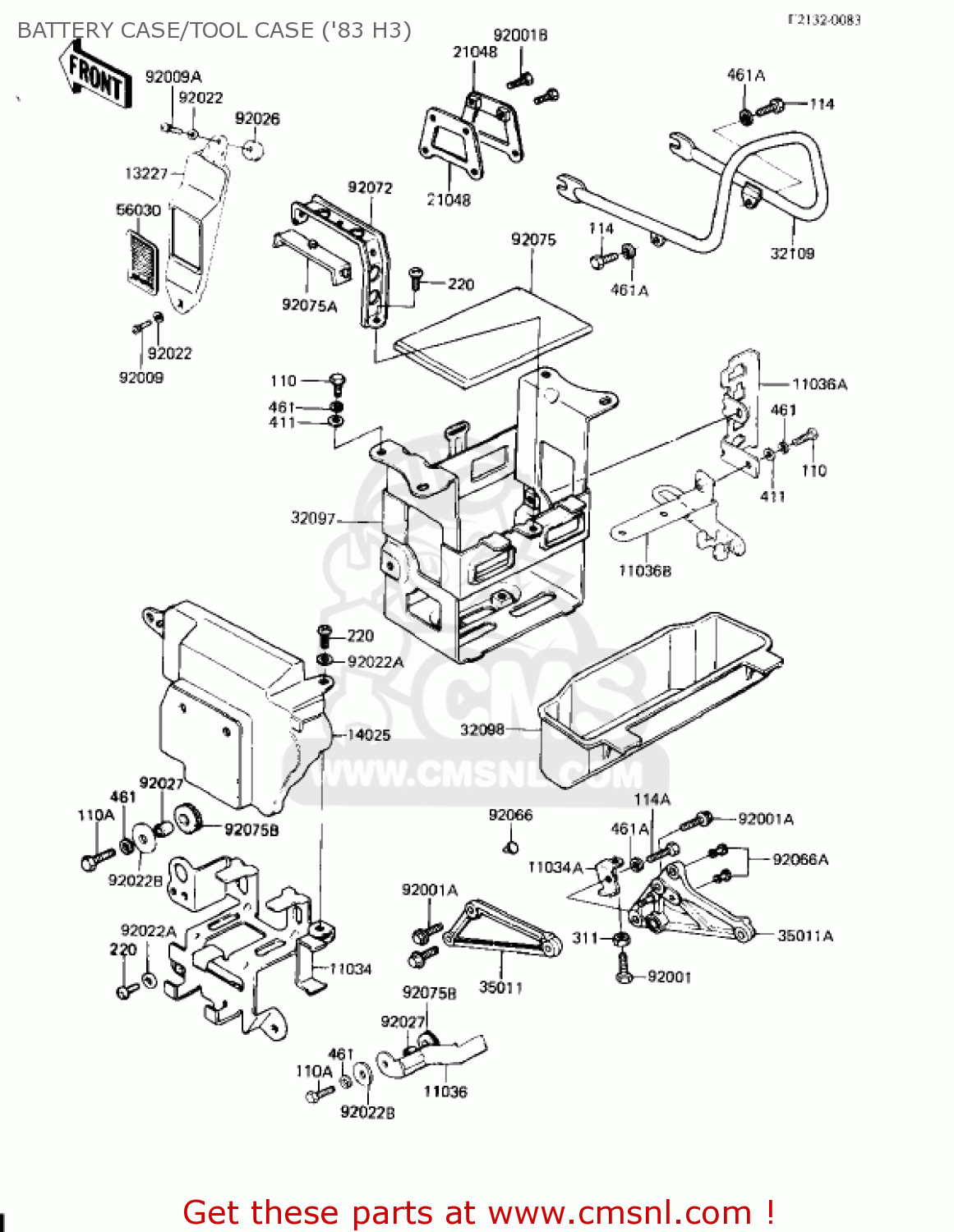

Battery case/tool case ('83 h3) diagram KZ650H2 CSR 1982 USA CANADA
BATTERY CASE/TOOL CASE ('83 H3) KZ650H2 CSR 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341669
ref: 11034
BRACKET,ELECTRO BASE
€ 34.00
11034A
110341824
ref: 11034A
BRACKET,BRAKE PEDAL
€ 7.50
11036
110361043
ref: 11036
BRACKET-A,FUSE
€ 2.50
11036A
110361475
ref: 11036A
BRACKET-A,COUPLER
€ 8.00
11036B
110361662
ref: 11036B
BRACKET-A,BATTERY CAS
€ 15.50
13227
132271001
ref: 13227
HOUSING,LABEL
€ 12.00
14025
140251191
ref: 14025
COVER,ELECTRO BASE
€ 7.00
21048
210481001
ref: 21048
PLATE-COIL
€ 14.00
32097
320971026
ref: 32097
CASE-BATTERY
€ 92.00
32098
320981011
ref: 32098
CASE-TOOL
€ 20.50
32109
321091016
ref: 32109
GRIP,FRAME
€ 50.50
35011
350111080
ref: 35011
STAY,MUFFLER,LH
€ 51.50
35011A
350111081
ref: 35011A
STAY,MUFFLER,RH
€ 47.50
56030
560301006
ref: 56030
LABEL
€ 7.00
92001
920011090
ref: 92001
BOLT,HEX HEAD,6X25
€ 2.50
92001A
920011095
ref: 92001A
BOLT,8X28
€ 4.50
92001B
92001137
ref: 92001B
BOLT,HEX HEAD,6M/M
€ 4.00
92009
920091099
ref: 92009
SCREW,PAN HEAD,5X16
€ 2.50
92009A
920091100
ref: 92009A
SCREW,PAN HEAD,5X30
€ 0.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
92022024
ref: 92022A
WASHER,7X16X1.2
€ 2.50
92022B
92022228
ref: 92022B
WASHER-PLAIN,7MM
€ 2.50
92026
920261077
ref: 92026
SPACER,5.2X23X10
€ 3.00
92027
92027291
ref: 92027
COLLAR,6.5X8.5X14
€ 2.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92066A
920661080
ref: 92066A
PLUG,RUBBER
€ 2.50
92072
920721019
ref: 92072
BAND,BATTERY
€ 6.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
€ 6.00
92075A
920751113
ref: 92075A
DAMPER,BATTERY BAND
€ 4.50
92075B
92075317
ref: 92075B
DAMPER
€ 2.50
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112G0625
ref: 110A
BOLT-UPSET,6X25
€ 4.00
114
115B0822
ref: 114
BOLT-SMALL-UPSET,8X22
€ 2.00
114A
115G0835
ref: 114A
BOLT HEX,HEAD,8X35
€ 3.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
114
411B0600
ref: 114
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
