TAILLIGHT

KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

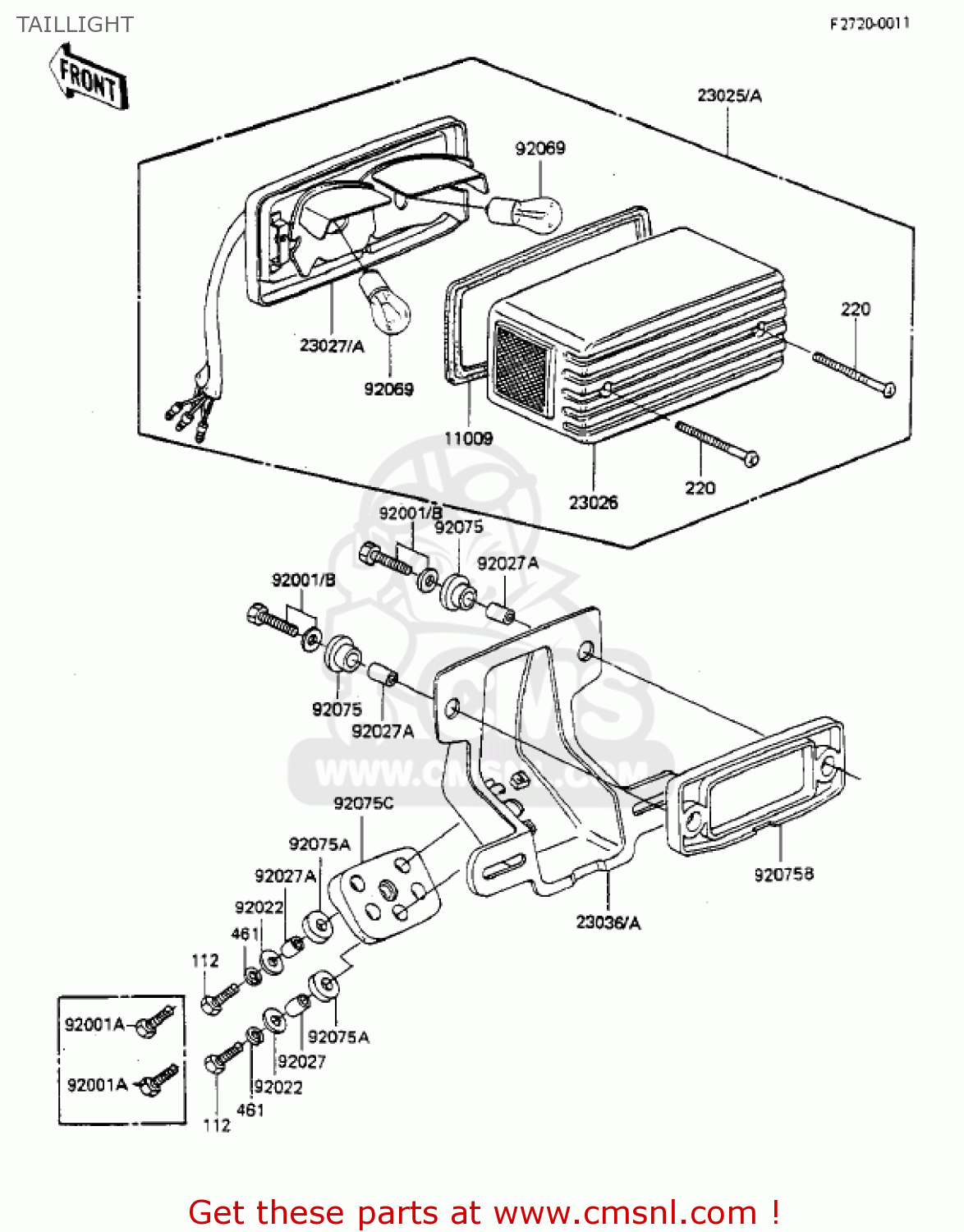

Taillight diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

TAILLIGHT KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
TAILLIGHT KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
TAILLIGHT KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
110091221
€ 8.50
23025
230251025
ref: 23025
TAIL LAMP
€ 187.00
23025A
230251038
ref: 23025A
LAMP-TAIL,220-40896
230251038
€ 187.00
23026
230261021
ref: 23026
LENS,TAIL LAMP,220-40
230261021
€ 125.50
23027
230271013
ref: 23027
TAIL LAMP BODY,COMPLETE
€ 82.00
23027A
230271025
ref: 23027A
BODY-COMP-TAIL LAMP
€ 187.00
23036
230361033
ref: 23036
TAIL LAMP BRACKET
230361033
€ 74.50
23036A
230361046
ref: 23036A
BRACKET-TAIL LAMP
€ 92.00
92001
920011568
ref: 92001
BOLT,6X22
920011568
€ 3.00
92001A
920021137
ref: 92001A
BOLT,6X25
920021137
€ 2.50
92001B
92132001
ref: 92001B
BOLT
€ 2.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92027A
92027169
ref: 92027A
COLLAR,6.8X10X16
92027169
€ 4.00
92069
92069059
ref: 92069
BULB,12V 32/3CP
92069059
€ 5.50
92075
920751092
ref: 92075
DAMPER
920751092
€ 7.50
92075A
92075121
ref: 92075A
DAMPER,FENDER
92075121
€ 2.50
92075B
920751282
ref: 92075B
DAMPER,TAIL LAMP
920751282
€ 13.00
92075C
920751283
ref: 92075C
DAMPER
920751283
€ 7.50
112
112G0625
ref: 112
BOLT-UPSET,6X25
112G0625
€ 4.00
220
220C0465
ref: 220
SCREW-PAN-CROS
220C0465
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
