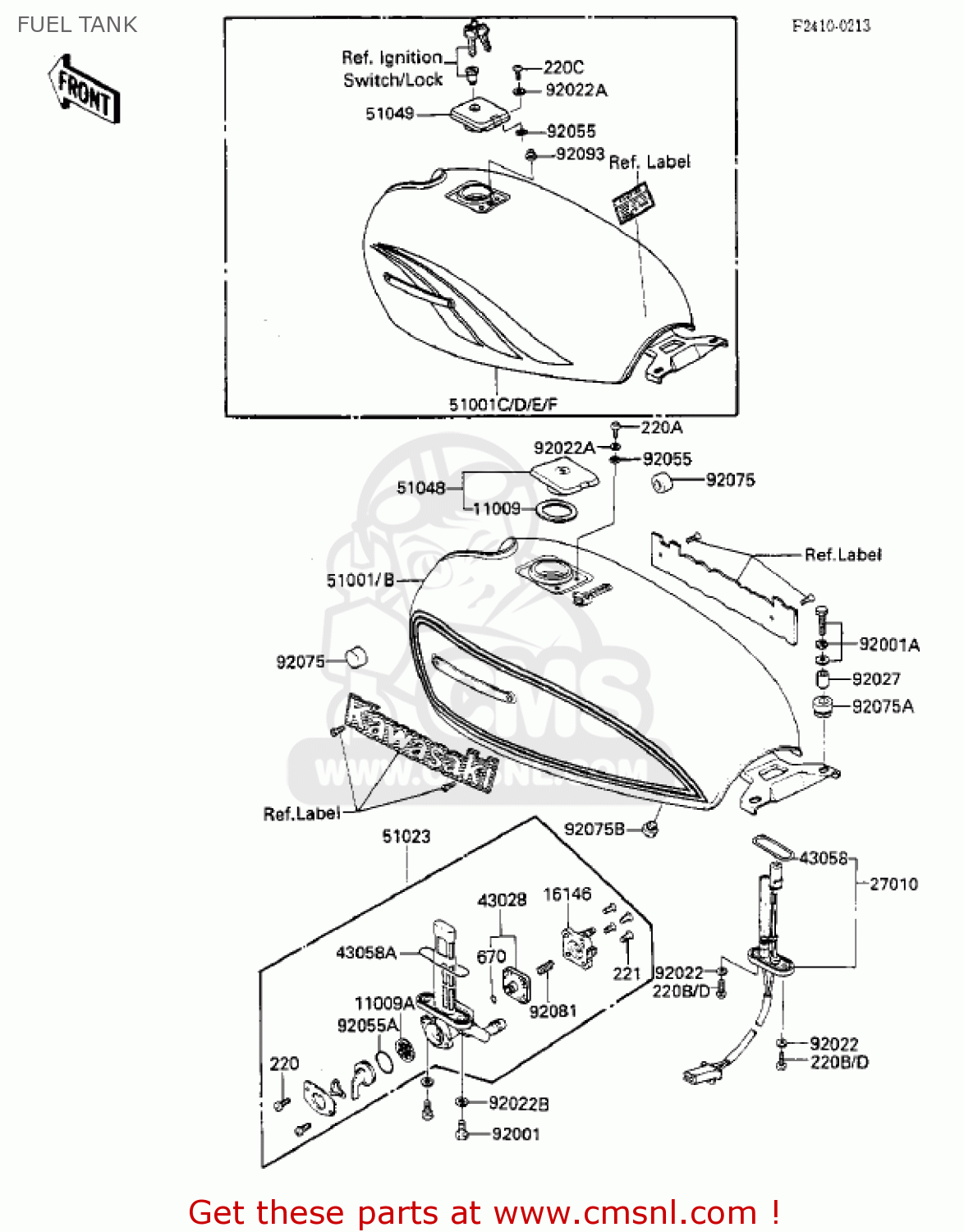

FUEL TANK

ref

part #

description

quantity

11009

110091051
ref: 11009

GASKET,FUEL TANK CAP (NAS)

€ 7.00

11009A

110091188
ref: 11009A

GASKET,TAP VALVE (NAS)

€ 4.00

16146

161461009
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 12.50

27010

270101073
ref: 27010

FUEL LEVEL SWITCH

€ 79.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

430581004
ref: 43058

O RING,FUEL LEVL SW

€ 5.50

43058A

51039003
ref: 43058A

'O' RING

€ 4.00

51001

510015218H7
ref: 51001

FUEL TANK,COMPLETE,EBONY/SONIC GOLD

€ 529.50

51001B

510015281J3
ref: 51001B

FUEL TANK,COMPLETE,EBONY/FIRECRACKER RED

€ 588.00

51001C

510015368H8
ref: 51001C
CN,US

FUEL TANK,COMPLETE,EBONY

€ 503.00

51001D

510015368L2
ref: 51001D
US

FUEL TANK,COMPLETE,LUMINOUS CRIMSON RED

€ 503.00

51001E

510015393H8
ref: 51001E
CA

FUEL TANK,COMPLETE,EBONY

€ 419.00

51001F

510015393L2
ref: 51001F
CA

FUEL TANK,COMPLETE,LUMINOUS CRIMSON RED

€ 419.00

51023

510231186
ref: 51023

TAP-ASSY,FUEL

€ 105.50

51048

510481015
ref: 51048

CAP-ASSY-TANK,FUEL

€ 115.00

51049

510491058
ref: 51049

CAP-TANK FUEL

€ 156.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92001A

920021137
ref: 92001A

BOLT,6X25

€ 2.50

92022

920221023
ref: 92022

WASHER,5.2X10X1.5

€ 2.50

92022A

920221038
ref: 92022A

WASHER,PLAIN

€ 2.50

92022B

92022183
ref: 92022B

WASHER,6.2X11X1.5

€ 2.50

92027

92027156
ref: 92027

COLLAR-BATTERY CASE

€ 3.00

92055

920551023
ref: 92055

ORING

€ 2.50

92055A

920551085
ref: 92055A

'O' RING,FUEL TAP LEV

€ 3.00

92075

92075101
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

92075167
ref: 92075A

DAMPER

€ 3.50

92075B

92075281
ref: 92075B

DAMPER,9X24X14

€ 4.00

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

92093

920931030
ref: 92093

OIL SEAL,FUEL TANK CA

€ 5.00

92093

920931030
ref: 92093

OIL SEAL,FUEL TANK CA

€ 5.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0510
ref: 220A

SCREW-PAN-CROS,5X10

€ 0.50

220B

220B0514
ref: 220B

ACREW-PAN HEAD,5X14

€ 2.50

220C

220D0510
ref: 220C

SCREW-PAN-CROS

€ 0.50

220D

220D0514
ref: 220D

SCREW-PAN-CROS

€ 2.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

all assemblies
