METERS
KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

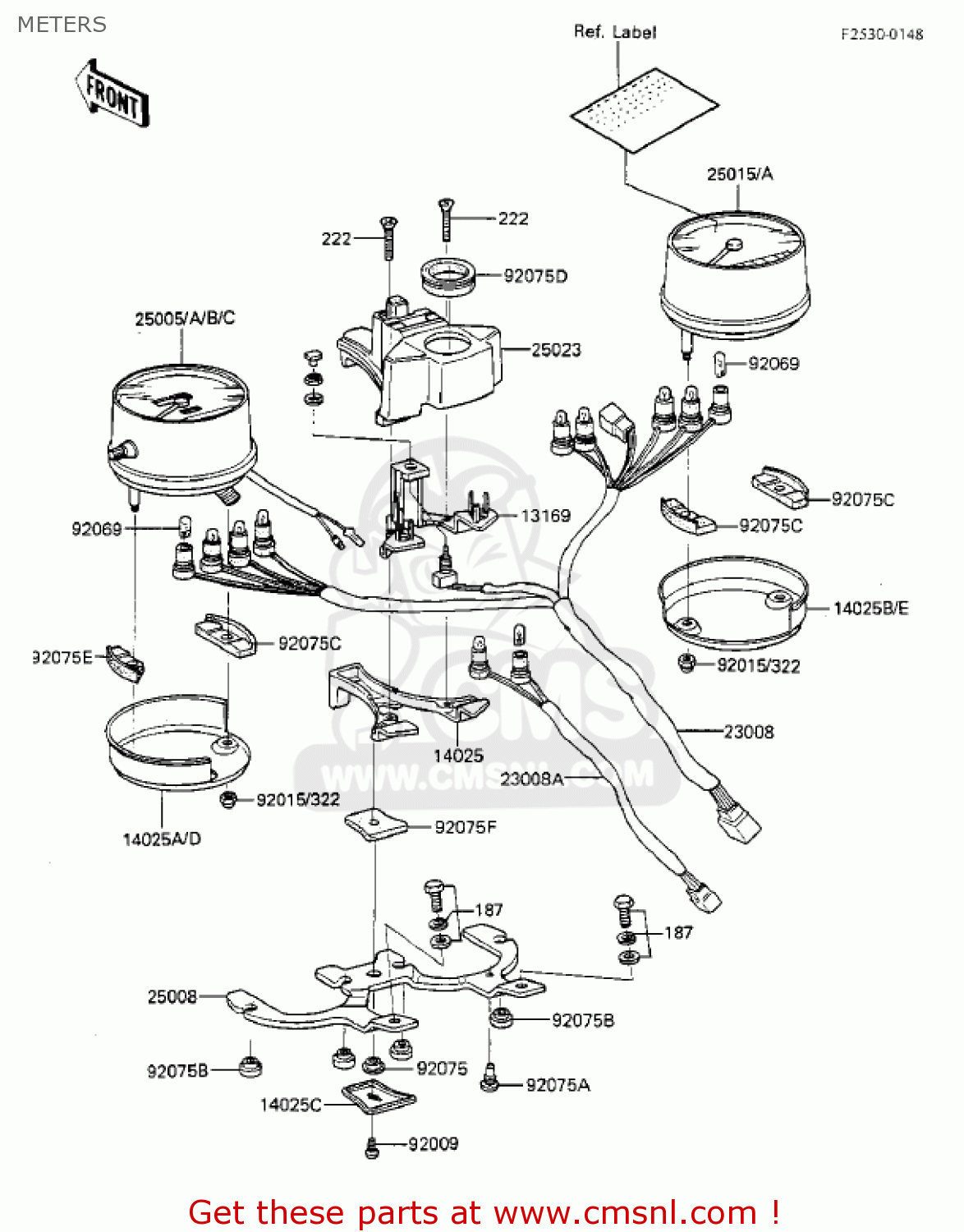

Meters diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
METERS KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13169
131691512
ref: 13169
SOCKET PLATE
€ 17.00
14025
140251474
ref: 14025
PILOT BOX COVER,LOWER
€ 28.00
14025A
140251475
ref: 14025A
SPEEDOMETER COVER
€ 68.50
14025B
140251476
ref: 14025B
TACHOMETER COVER
€ 81.00
14025C
140251477
ref: 14025C
METER BRACKET COVER
€ 2.50
14025D
140251562
ref: 14025D
COVER,SPEEDOMETER
€ 79.00
14025E
140251563
ref: 14025E
COVER,TACHOMETER
€ 81.00
23008
230081154
ref: 23008
SOCKET ASSEMBLY WITH SWITCH
€ 91.50
23008A
230081155
ref: 23008A
PILOT BOX SOCKET ASSEMBLY
€ 48.50
25005
250051184
ref: 25005
US
SPEEDOMETER,MPH
€ 418.00
25005A
250051190
ref: 25005A
CN
SPEEDOMETER,KPH (Canada)
€ 0.00
25005B
250051200
ref: 25005B
CN
SPEEDOMETER,KPH (Canada)
€ 0.00
25005C
250051271
ref: 25005C
CA,US
SPEEDOMETER,MPH
€ 221.50
25008
250081049
ref: 25008
METER BRACKET
€ 58.50
25015
250151145
ref: 25015
TACHOMETER,9X1000RPM
€ 291.50
25015A
250151214
ref: 25015A
TACHOMETER,X1000RPM
€ 289.00
25023
250231033
ref: 25023
COVER-METER CASE,UPP
€ 51.50
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
€ 2.50
92015
322C0500
ref: 92015
NUT-CAP
€ 2.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
25019023
ref: 92075
DAMPER RUBBER,METER
€ 2.50
92075A
920751149
ref: 92075A
US
DAMPER,METER
€ 4.50
92075B
920751150
ref: 92075B
DAMPER,METER FITTING
€ 4.50
92075C
920751192
ref: 92075C
DAMPER,METER
€ 12.50
92075D
920751256
ref: 92075D
DAMPER,PILOT BOX
€ 9.00
92075E
920751265
ref: 92075E
DAMPER RUBBER,METER
€ 13.50
92075F
920751386
ref: 92075F
PILOT BOX DAMPER
€ 5.00
187
187C0614
ref: 187
BOLT-UPSET-WSP
€ 2.50
222
222C0425
ref: 222
SCREW-CSK-RD-CROS
€ 1.50
322
322N0500
ref: 322
NUT-CAP,5MM
€ 2.00
