CRANKCASE

KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

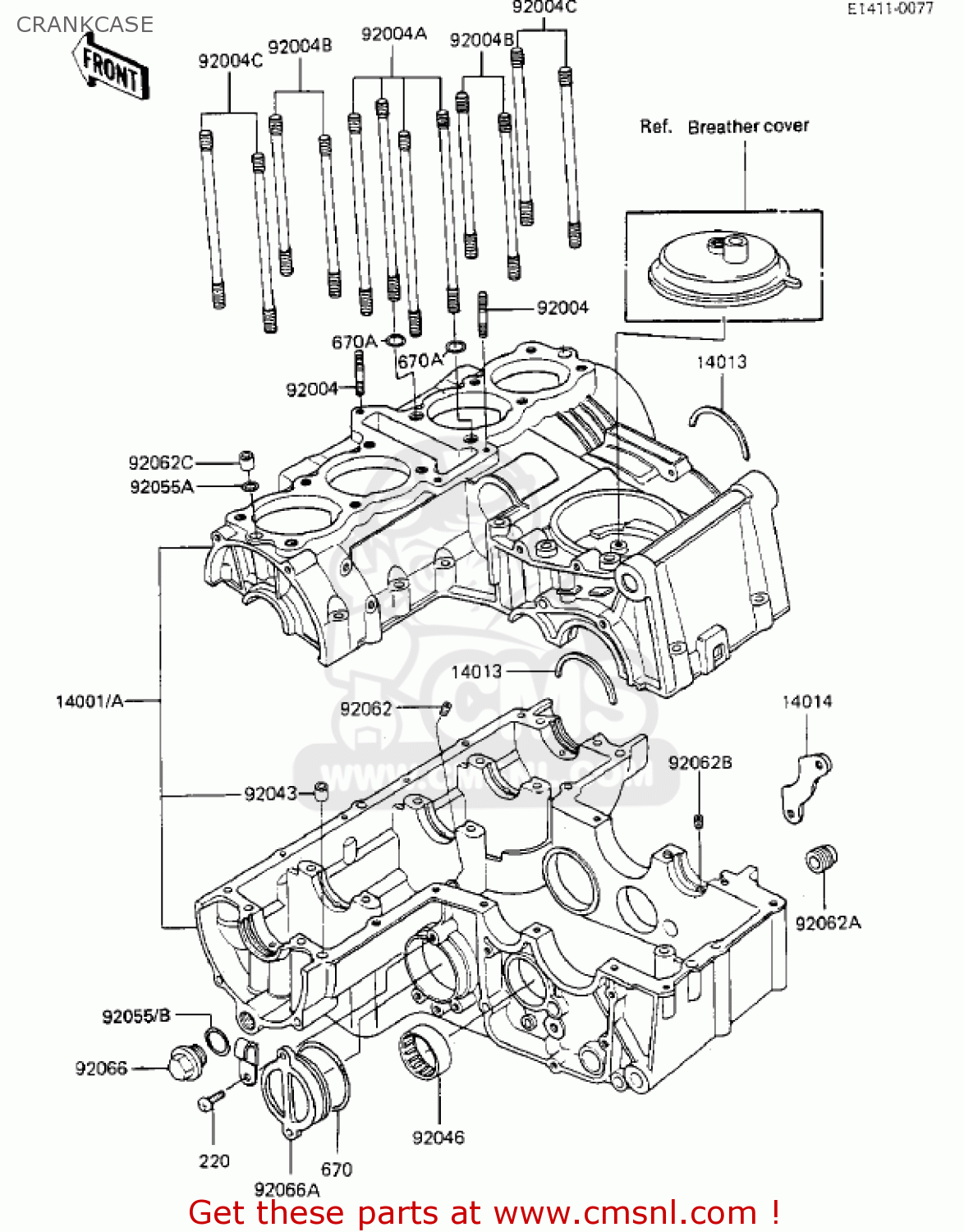

Crankcase diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

CRANKCASE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
CRANKCASE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
CRANKCASE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14001
140015145
ref: 14001
CRANKCASE SET,GOLD
€ 690.00
14001A
140015147
ref: 14001A
CRANKCASE SET,SILVER
€ 747.00
14013
14013004
ref: 14013
RING-BEARING SETTING
14013004
€ 7.00
14014
140141006
ref: 14014
PLATE-POSITION
140141006
€ 7.50
92004
92004059
ref: 92004
STUD
92004059
€ 4.00
92004A
920041016
ref: 92004A
STUD,8X146
920041016
€ 7.50
92004B
920041017
ref: 92004B
STUD,8X108.5
€ 8.00
92004C
920041018
ref: 92004C
STUD,8X128.5
€ 8.00
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
92046051
€ 23.00
92055
920551146
ref: 92055
RING-O
920551146
€ 5.50
92055A
670D2010
ref: 92055A
O RING,10MM
670D2010
€ 1.00
92055B
920551146
ref: 92055B
RING-O
920551146
€ 5.50
92062
92062011
ref: 92062
NOZZLE,OIL
92062011
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
92062014
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
92062015
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
92062016
€ 3.50
92066
92066066
ref: 92066
PLUG
92066066
€ 7.00
92066A
920661019
ref: 92066A
PLUG,SECONDARY SHAFT,
920661019
€ 12.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
670
670B3046
ref: 670
O RING,46MM
670B3046
€ 3.50
670A
670D1508
ref: 670A
O RING,8MM
670D1508
€ 2.50
