BRAKE PEDAL/TORQUE LINK

KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

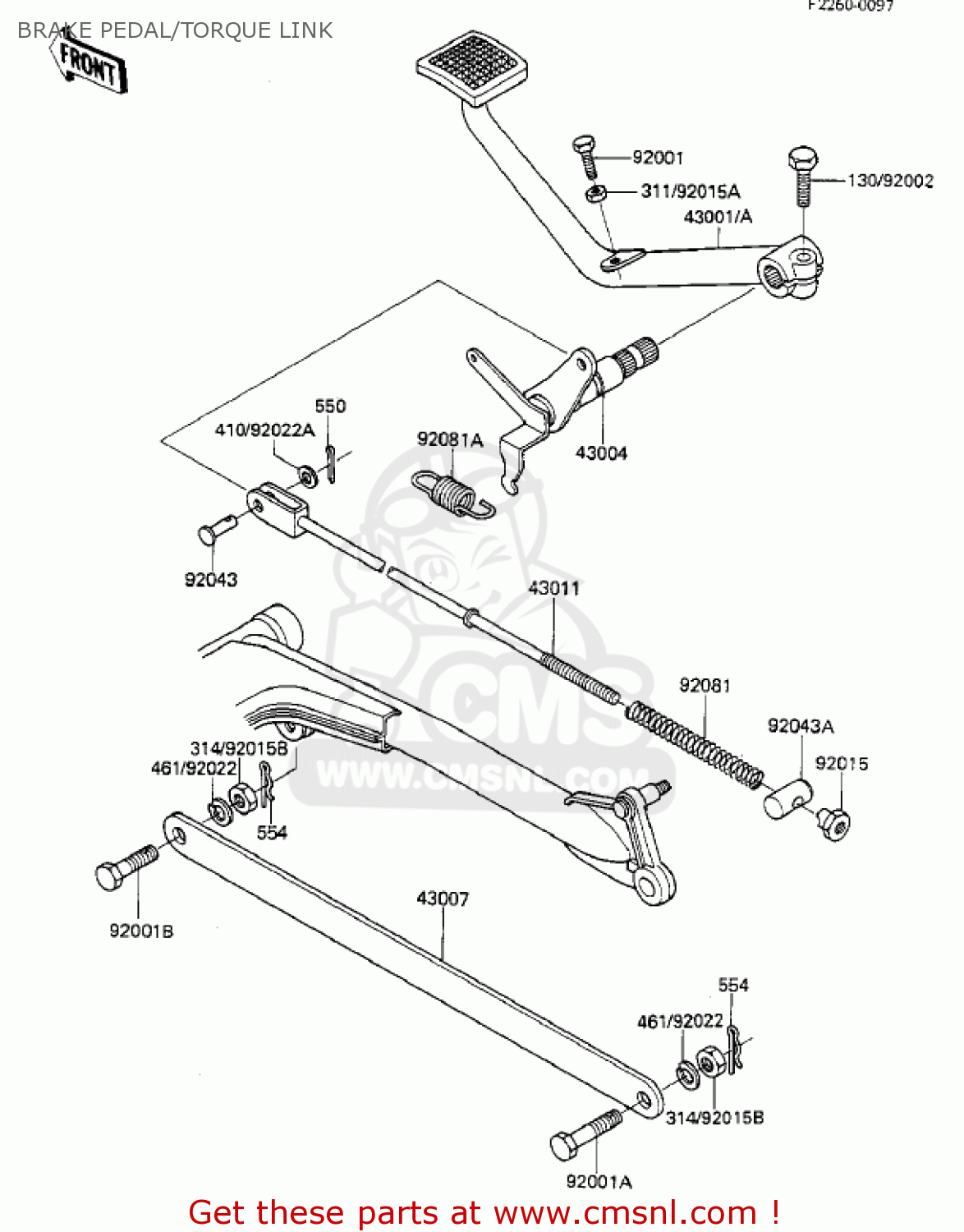

Brake pedal/torque link diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
43001
430011106
ref: 43001
BRAKE PEDAL LEVER
€ 69.50
43001A
430011107
ref: 43001A
BRAKE PEDAL LEVER
€ 77.50
43004
430041046
ref: 43004
BRAKE SHAFT
€ 27.50
43007
430071037
ref: 43007
ROD-TORQUE
430071037
€ 20.00
43011
430111060
ref: 43011
ROD-BRAKE
430111060
€ 14.50
92001
920011090
ref: 92001
BOLT,HEX HEAD,6X25
920011090
€ 2.50
92001A
920011519
ref: 92001A
BOLT,10X37
920011519
€ 4.50
92001B
92003096
ref: 92001B
BOLT-TRQ LINK 10X29
92003096
€ 7.00
92002
920021201
ref: 92002
BOLT,FLANGED,8X25
920021201
€ 3.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92015A
920151391
ref: 92015A
NUT,6MM
920151391
€ 2.00
92015B
920151416
ref: 92015B
NUT,10MM
920151416
€ 3.00
92022
920221540
ref: 92022
WASHER,SPRING,10MM
920221540
€ 2.50
92022A
410B0600
ref: 92022A
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
92043065
€ 3.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
43012001
€ 3.00
92081A
920811147
ref: 92081A
SPRING,BRAKE PEDAL
920811147
€ 8.00
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
130J0825
€ 2.00
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
314
314B1000
ref: 314
NUT,10MM
314B1000
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
461F1000
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
