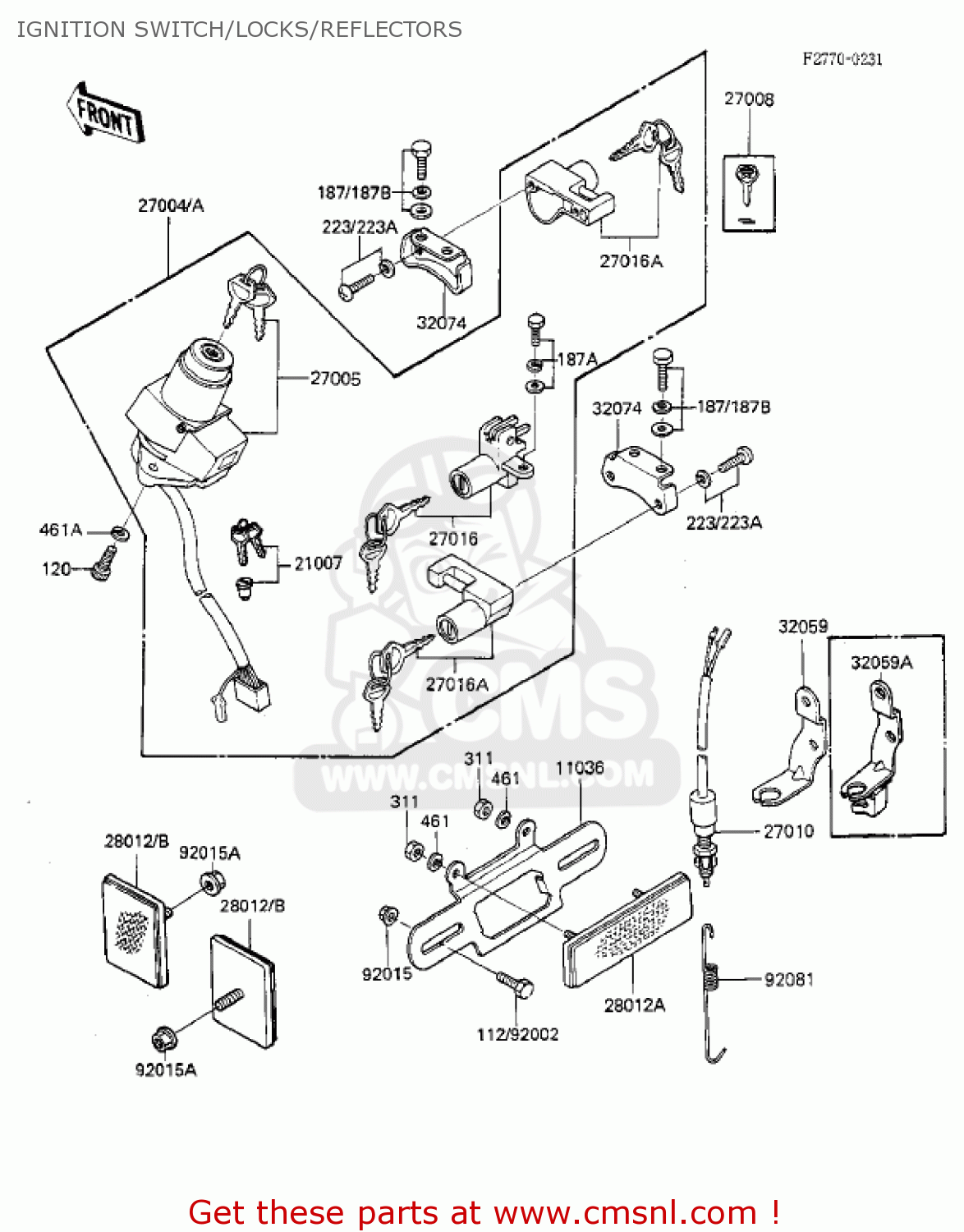

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

11036

110361150
ref: 11036

REFLECTOR BRACKET,REAR

€ 16.00

21007

210075005
ref: 21007

ROTOR,FUEL TANK

€ 71.00

27004

270045150
ref: 27004

SWITCH-ASSY

€ 339.50

27004A

270045237
ref: 27004A

SWITCH ASSEMBLY

€ 167.00

27005

270055024
ref: 27005

SWITCH ASSY IGNITION

€ 249.00

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101019
ref: 27010

SWITCH,REAR BRAKE

€ 23.00

27016

270165010
ref: 27016

LOCK-ASSY,SEAT

€ 72.50

27016A

270165038
ref: 27016A

LOCK-ASSY,HELMET

€ 67.50

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121005
ref: 28012A

REFLECTOR-REFLEX,RR

€ 16.50

28012B

280121009
ref: 28012B

REFLECTOR-REFLEX,FR

€ 16.00

32059

320591024
ref: 32059
CN,US

BRACKET-SWITCH

€ 8.00

32059A

320591054
ref: 32059A
CA

SWITCH BRACKET

€ 6.00

32074

320741041
ref: 32074

LOCK BRACKET

€ 4.50

92002

112G0612
ref: 92002

BOLT-UPSET

€ 2.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151259
ref: 92015A

NUT,FLANGED,5MM

€ 2.50

92081

27011004
ref: 92081

SPRING-BRAKE LAMP SW

€ 2.50

112

112G0612
ref: 112

BOLT-UPSET

€ 2.50

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

187A

187B0614
ref: 187A

BOLT-UPSET-WSP

€ 0.50

187B

187C0612
ref: 187B

BOLT-UPSET-WSP

€ 2.00

223

223B0508
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

223A

223C0508
ref: 223A

SCREW-PAN-WS-CROS

€ 2.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50
