REAR WHEEL/HUB/BRAKE

KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

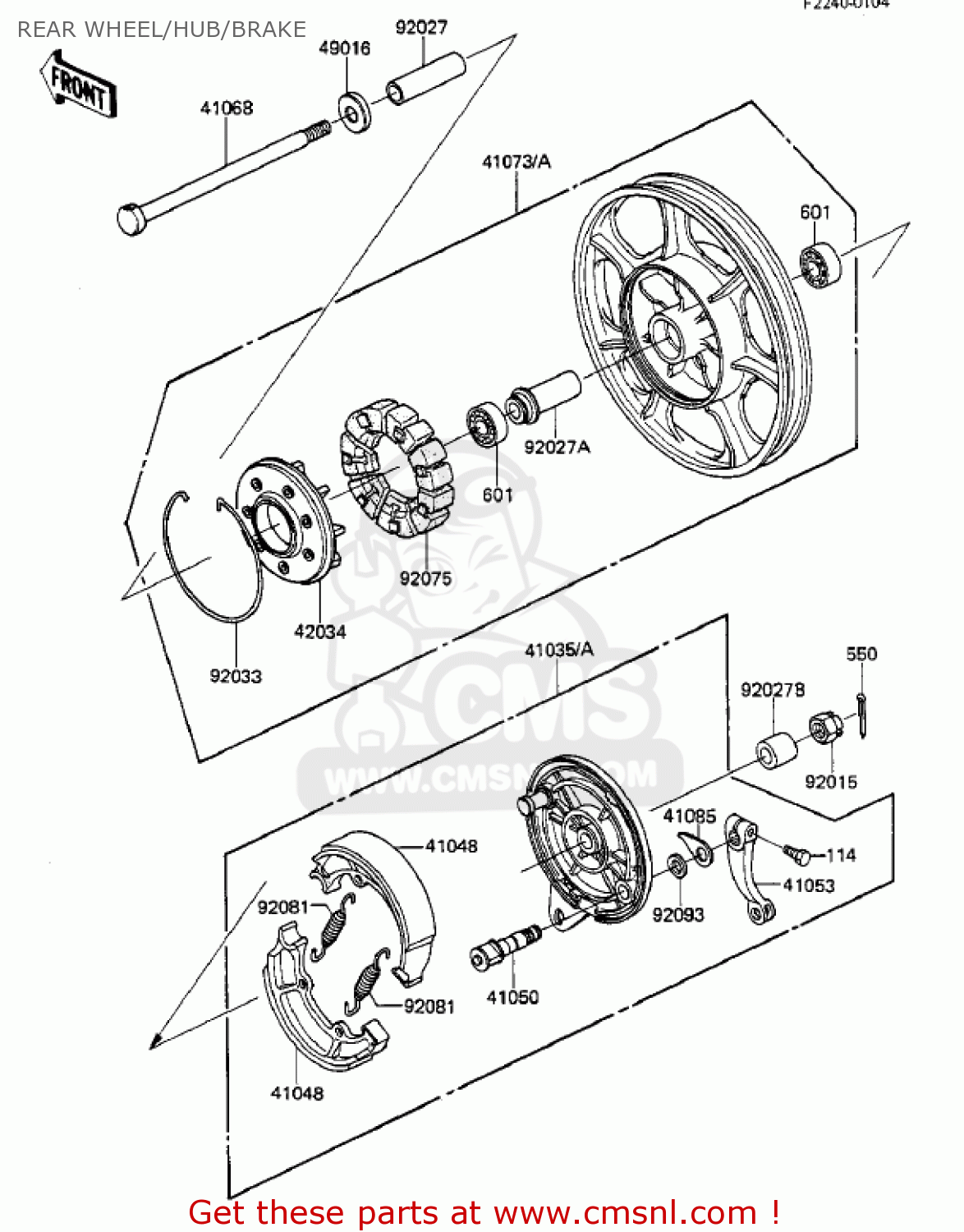

Rear wheel/hub/brake diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

REAR WHEEL/HUB/BRAKE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
REAR WHEEL/HUB/BRAKE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
REAR WHEEL/HUB/BRAKE KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
41035
410351110
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 472.00
41035A
410351111
ref: 41035A
PANEL-ASSY-BRAKE,RR
€ 224.00
41048
42019012
ref: 41048
SHOE, BRAKE (MCA)
42019012
€ 26.00
41050
41050017
ref: 41050
CAM-BRAKE
€ 25.50
41053
42029039
ref: 41053
LEVER REAR BRAKE CAM
42029039
€ 37.00
41068
410681086
ref: 41068
AXLE,RR
410681086
€ 49.00
41073
410731161F6
ref: 41073
WHEEL ASSEMBLY,REAR,GOLD #2
€ 404.00
41073A
410731161J9
ref: 41073A
WHEEL ASSEMBLY,REAR,GRAY
€ 340.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
41085004
€ 10.00
42034
420341029
ref: 42034
COUPLING,RR HUB
€ 154.50
49016
490161038
ref: 49016
COVER-SEAL,RR AXLE
€ 4.50
92015
92015055
ref: 92015
NUT,16MM
92015055
€ 8.00
92027
920271415
ref: 92027
COLLAR,17.2X25X79
920271415
€ 14.00
92027A
920271416
ref: 92027A
COLLAR,L=60
€ 12.50
92027B
920271466
ref: 92027B
COLLAR,AXLE,17.2X30X3
€ 13.50
92033
920331075
ref: 92033
RING-SNAP,194MM
920331075
€ 10.50
92075
920751372
ref: 92075
DAMPER,RR HUB SHOCK
920751372
€ 66.00
92081
41049012
ref: 92081
SPRING, BRKE SHOE
41049012
€ 6.00
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6303Z
ref: 601
BEARING-BALL,#6303ZC3
601B6303Z
€ 17.50
