Genuine KZ Kawasaki Parts delivered quickly!


CYLINDER/PISTONS

KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

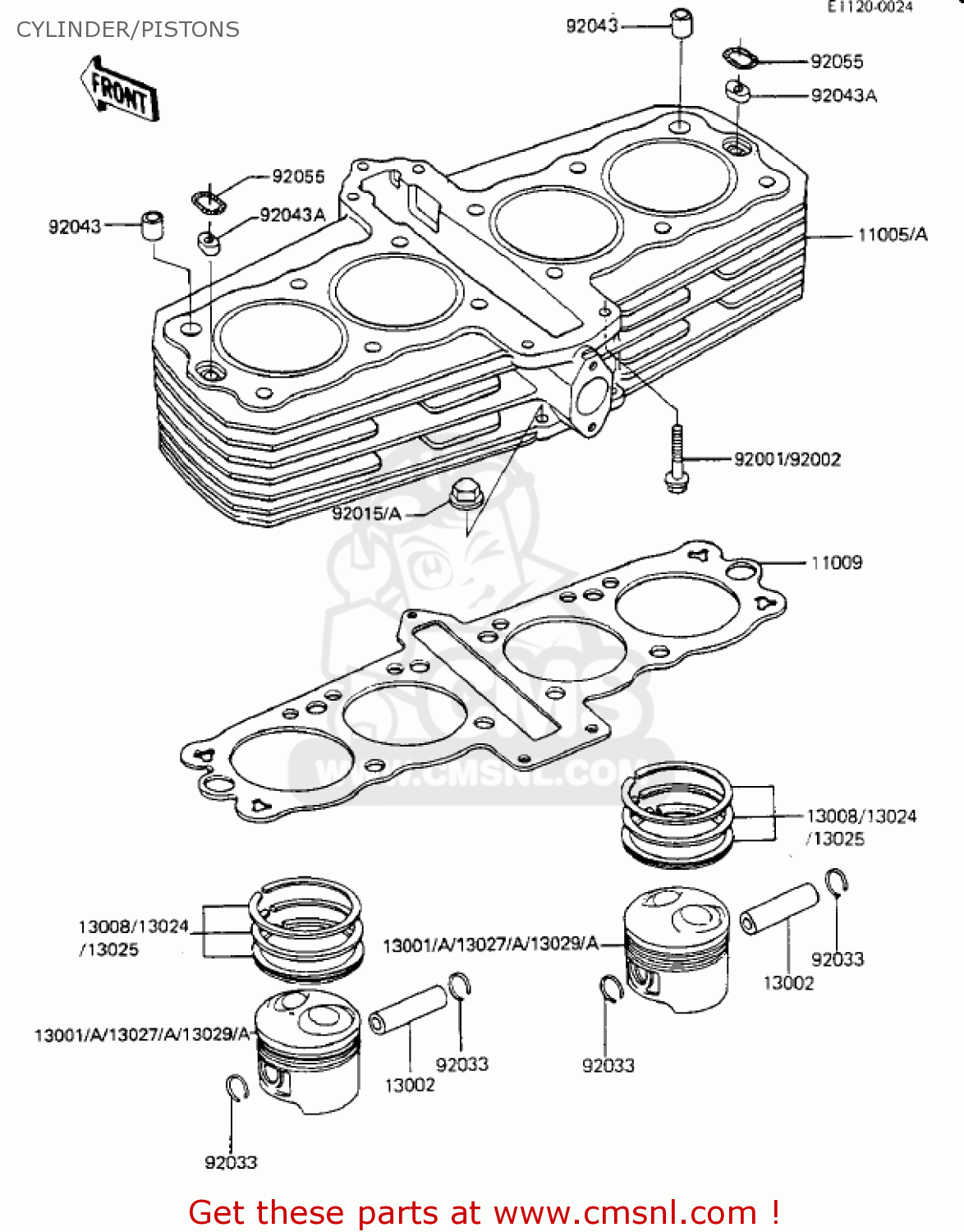

Cylinder/pistons diagram KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA

CYLINDER/PISTONS KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
CYLINDER/PISTONS KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
CYLINDER/PISTONS KZ550F1 SPECTRE 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11005
110051313
ref: 11005
CYLINDER-ENGINE
110051313
€ 971.00
11005A
110051311
ref: 11005A
ENGINE CYLINDER,SILVER
€ 682.00
11009
110091932
ref: 11009
GASKET,CYLINDER BASE (NAS)
110091932
€ 26.50
13001
130011121
ref: 13001
PISTON-ENGINE,STD
130011121
€ 33.50
13001A
130011121
ref: 13001A
PISTON-ENGINE,STD
130011121
€ 33.50
13002
130021012
ref: 13002
PIN-PISTON
130021012
€ 15.50
13008
130081009
ref: 13008
RING-SET-PISTON,STD
130081009
€ 54.50
13024
130241010
ref: 13024
RING-SET-PISTON LL,O/
130241010
€ 61.50
13025
130251010
ref: 13025
RING-SET-PISTON L,O/S
130251010
€ 64.50
13027
130271053
ref: 13027
PISTON-ENGINE LL,O/S
130271053
€ 31.50
13027A
130271053
ref: 13027A
PISTON-ENGINE LL,O/S
130271053
€ 31.50
13029
130291055
ref: 13029
PISTON-ENGINE L,O/S 0
130291055
€ 52.50
13029A
130291055
ref: 13029A
PISTON-ENGINE L,O/S 0
130291055
€ 52.50
92001
920011531
ref: 92001
BOLT,BLACK,6X28
€ 3.50
92002
920021105
ref: 92002
BOLT, 6X28
920021105
€ 3.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151385
ref: 92015A
NUT,CAP,6MM
920151385
€ 2.50
92033
92042031
ref: 92033
PIN,DOWEL,12X14
92042031
€ 4.50
92043A
920431210
ref: 92043A
PIN,OIL LINE
920431210
€ 4.50
92055
920551147
ref: 92055
RING-O,CYLINDER OIL L
920551147
€ 6.00
