TURN SIGNALS ('80-'81 C1/C2)
KZ550C4 LTD 1983 USA CANADA

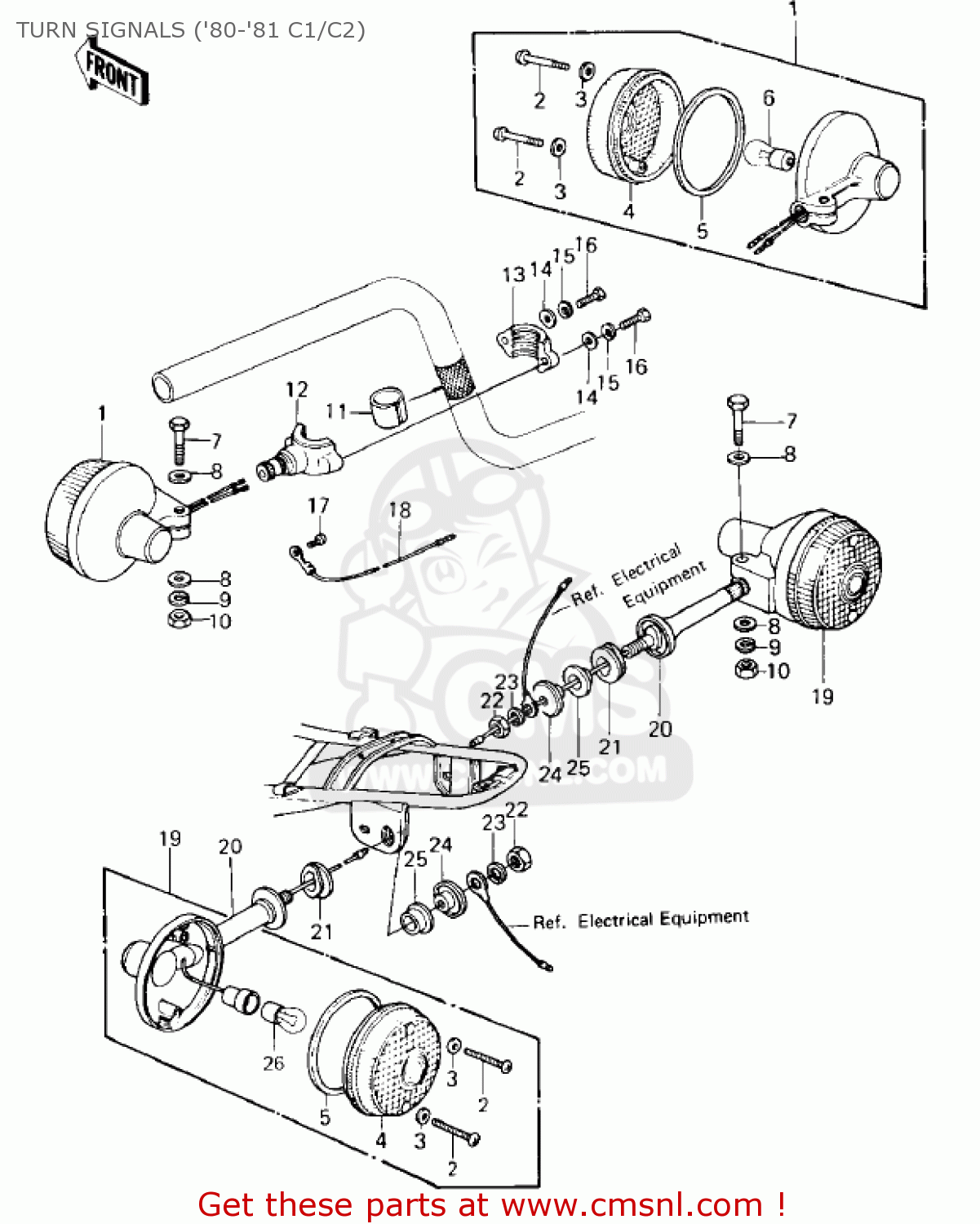

Turn signals ('80-'81 c1/c2) diagram KZ550C4 LTD 1983 USA CANADA
TURN SIGNALS ('80-'81 C1/C2) KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
230401024
ref: 1
KZ550-C1
LAMP-SIGNAL
€ 59.00
1
230401004
ref: 1
KZ550-C2
LAMP-SIGNAL
€ 64.00
2
220E0420A
ref: 2
SCREW-PAN HEAD,4X20
€ 2.50
3
23058002
ref: 3
WASHER,PLAIN,4MM
€ 2.00
4
230481001
ref: 4
LENS-SIGNAL LAMP,045-
€ 10.50
5
23050003
ref: 5
GASKET,SIGNAL LAMP (NAS)
€ 3.50
6
92069055
ref: 6
USE FOR 23040-1024
BULB 12V 32CP
€ 4.50
6
92069060
ref: 6
USE FOR 23040-1004
BULB.12V 23/8W
€ 5.00
7
112G0630
ref: 7
BOLT-UPSET
€ 1.00
8
411B0600
ref: 8
WASHER-PLAIN,6MM
€ 0.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
311B0600
ref: 10
NUT,6MM
€ 0.50
11
23066003
ref: 11
DAMPER
€ 3.50
12
230511004
ref: 12
BRACKET-SIGNAL LAMP,F
€ 23.00
13
230511013
ref: 13
BRACKET-SIGNAL LAMP,F
€ 11.50
14
410D0500
ref: 14
WASHER-PLAIN,5MM
€ 1.50
15
461F0500
ref: 15
WASHER-SPRING,5MM
€ 0.50
16
110N0516
ref: 16
BOLT,5X16
€ 2.00
17
220B0305A
ref: 17
SCREW-PAN HEAD,3X5
€ 1.00
18
26011061
ref: 18
WIRE-LEAD,SIGNAL LAMP
€ 2.50
19
23040054
ref: 19
LAMP-SIGNAL
€ 59.00
20
23051053
ref: 20
BRACKET-SIGNAL LAMP
€ 38.50
21
92075128
ref: 21
DAMPER,LAMP
€ 3.50
22
315B1000
ref: 22
NUT,10MM
€ 0.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
92027147
ref: 24
COLLAR
€ 9.00
25
92075158
ref: 25
DAMPER
€ 3.50
26
92069055
ref: 26
USE FOR 23040-054
BULB 12V 32CP
€ 4.50
