IGNITION SWITCH/LOCKS/REFLECTORS
KZ550C4 LTD 1983 USA CANADA

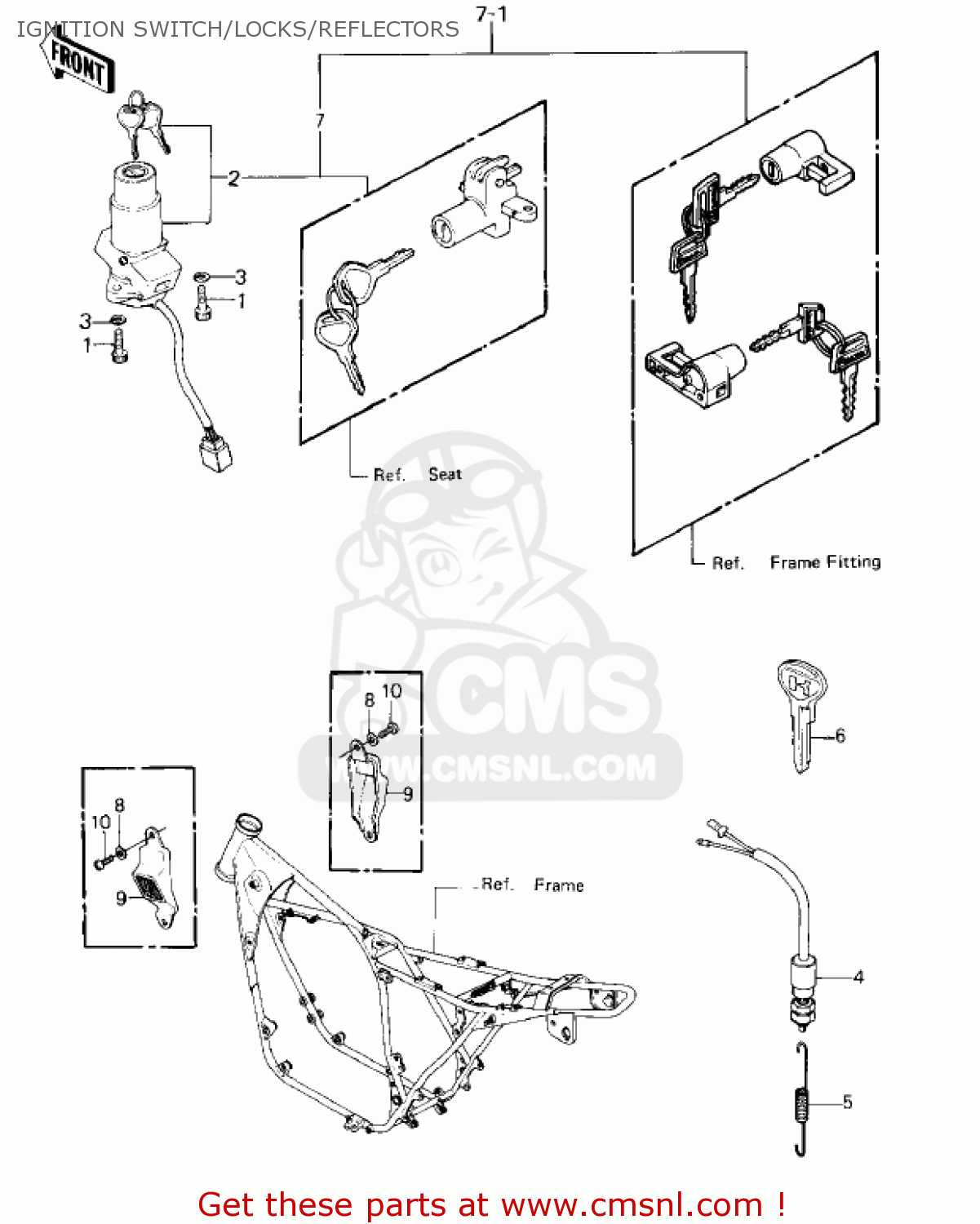

Ignition switch/locks/reflectors diagram KZ550C4 LTD 1983 USA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
120S0616
ref: 1
BOLT-SOCKET,6X16
€ 1.00
2
270055014
ref: 2
SWITCH ASSY,IGNITION
€ 224.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
27010017
ref: 4
SWITCH,BRAKE LAMP
€ 23.50
5
27011017
ref: 5
SPRING,BRK LIGHT SW
€ 6.50
6
270081103
ref: 6
KEY-LOCK,BLANK
€ 13.50
7
270045016
ref: 7
KZ550-C1
LOCK ASSY,Z500-B1
€ 317.50
7-1
270045099
ref: 7-1
KZ550-C2
LOCK ASSY,Z550-C2
€ 375.50
8
25009004
ref: 8
WASHER,5.2X16X1.2T
€ 2.50
9
280011015
ref: 9
REFLECTOR-ASSY-REFLEX
€ 31.50
10
920091099
ref: 10
SCREW,PAN HEAD,5X16
€ 2.50
