FRONT BRAKE ('80-'81 C1/C2)
KZ550C4 LTD 1983 USA CANADA

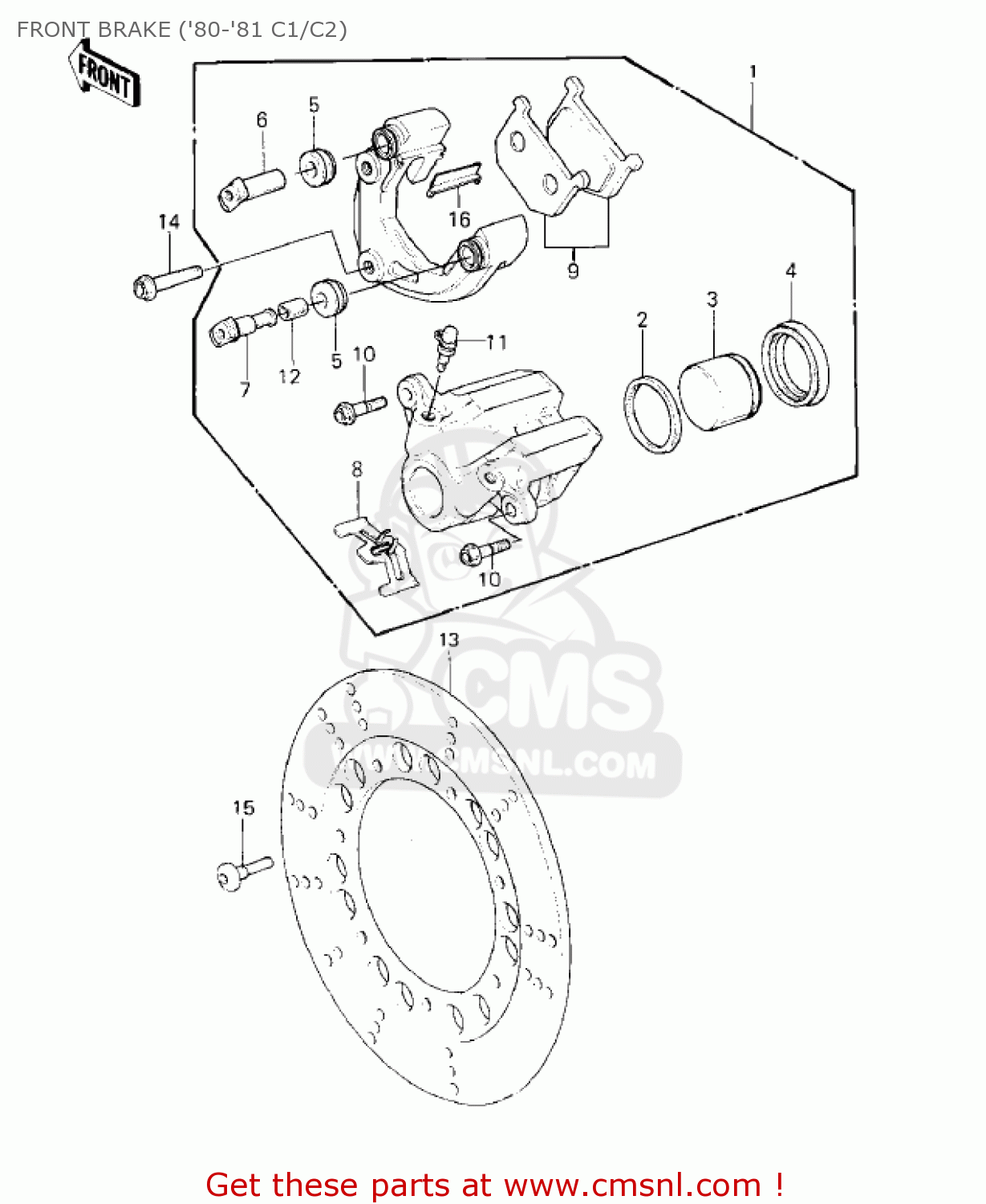

Front brake ('80-'81 c1/c2) diagram KZ550C4 LTD 1983 USA CANADA
FRONT BRAKE ('80-'81 C1/C2) KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430411113
ref: 1
CALIPER ASSY,FR BRAKE
€ 583.50
2
43049002A
ref: 2
PISTON SEAL RING
€ 9.00
3
430201096
ref: 3
PISTON-COMP-BRAKE
€ 45.00
4
490061043A
ref: 4
DUST SEAL,PISTON
€ 9.00
5
490061044
ref: 5
BOOT,SHAFT
€ 5.00
6
430451007
ref: 6
SHAFT-CALIPER
€ 15.00
7
430451008
ref: 7
SHAFT-CALIPER
€ 15.00
8
920811229
ref: 8
SPRING,PAD
€ 13.50
9
430821025
ref: 9
PAD-ASSY,BRAKE (NAS)
€ 42.50
10
920011510
ref: 10
BOLT,FLANGED,8X25,BLA
€ 5.00
11
43085001
ref: 11
BREEDER SET
€ 16.50
12
920281090
ref: 12
BUSHING,7.8X11X15.7
€ 5.00
13
410801127
ref: 13
DISC,FR,SILVER
€ 365.00
14
920011293
ref: 14
BOLT,HEX HEAD,10X38
€ 6.50
15
920011951
ref: 15
BOLT,SOCKET,8X30
€ 3.00
16
130701026
ref: 16
GUIDE,PAD
€ 6.50
