CABLES ('80-81 C1/C2)

KZ550C4 LTD 1983 USA CANADA

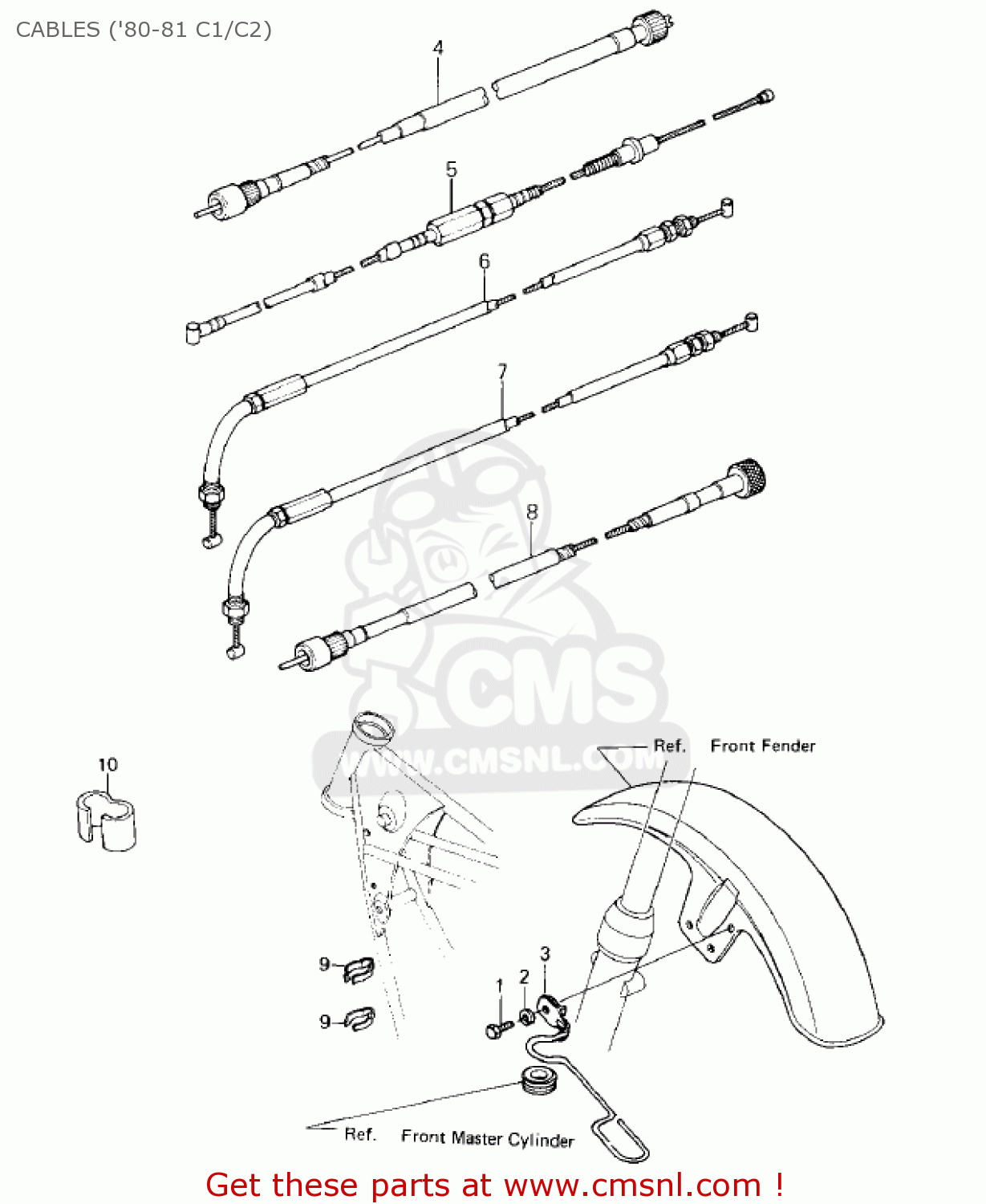

Cables ('80-81 c1/c2) diagram KZ550C4 LTD 1983 USA CANADA

CABLES ('80-81 C1/C2) KZ550C4 LTD 1983 USA CANADA

CABLES ('80-81 C1/C2) KZ550C4 LTD 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

112G0612
ref: 1

BOLT-UPSET

€ 2.50

2

461F0600
ref: 2

WASHER-SPRING,6MM

€ 0.50

3

920371116
ref: 3

CLAMP,CABLE

€ 12.50

4

540011029
ref: 4

CABLE-SPEEDOMETER

€ 23.50

5

540111047
ref: 5

CABLE-CLUTCH

€ 31.50

6

540121012
ref: 6

CABLE-THROTTLE,OPEN

€ 40.50

7

540121013
ref: 7

CABLE-THROTTLE,CLOSE

€ 40.50

8

540181008
ref: 8

CABLE-TACHOMETER

€ 35.00

9

920371086
ref: 9

CLAMP,CLUTCH CABLE

€ 4.00

10

92037069
ref: 10

CLAMP,CABLE

€ 2.50
