REAR WHEEL/HUB/BRAKE/CHAIN ('80-
KZ550C4 LTD 1983 USA CANADA

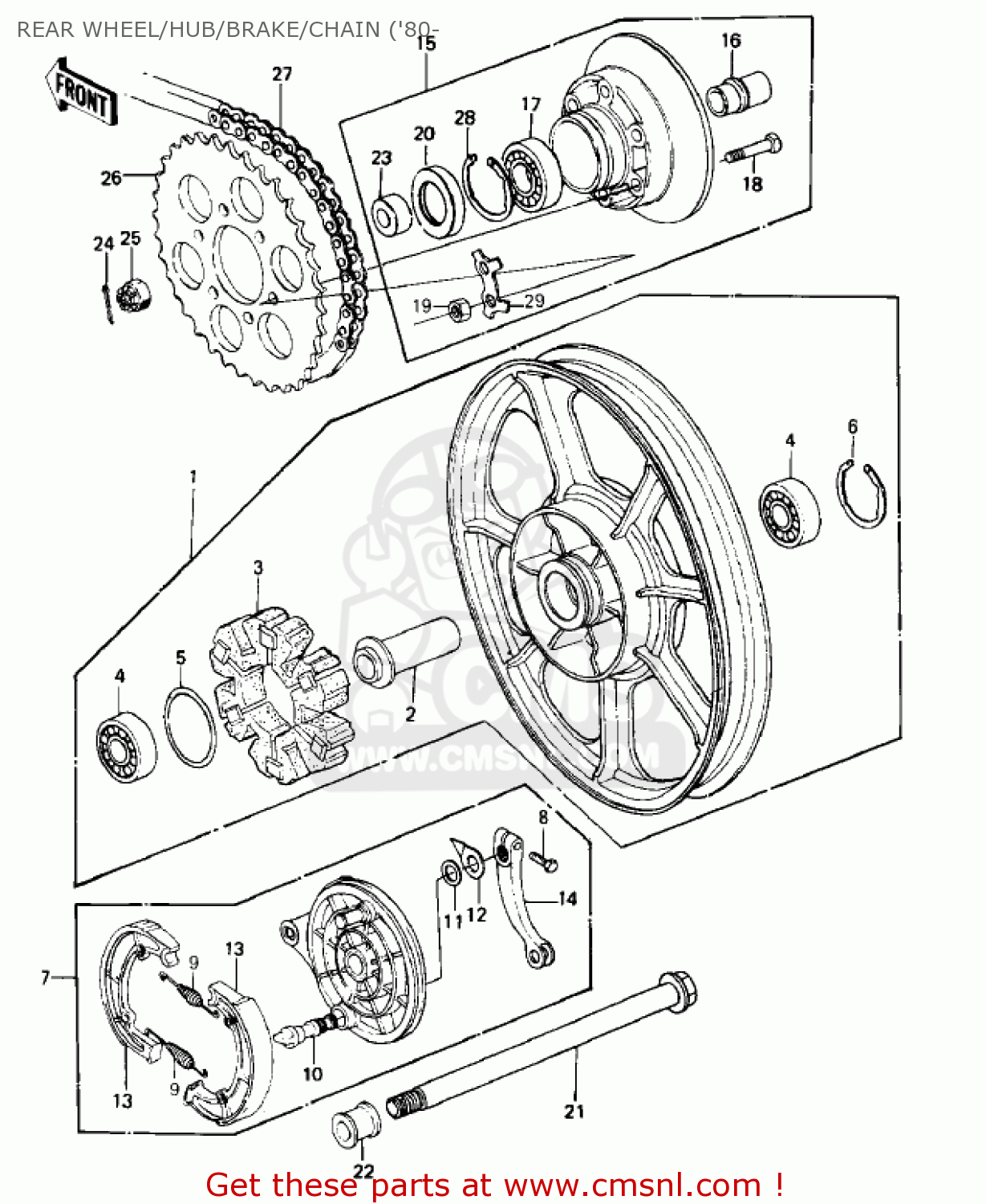

Rear wheel/hub/brake/chain ('80- diagram KZ550C4 LTD 1983 USA CANADA
REAR WHEEL/HUB/BRAKE/CHAIN ('80- KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410731081
ref: 1
SOLID WHEEL ASSY,REAR
€ 358.00
2
920271267
ref: 2
COLLAR,RR HUB,L=76
€ 10.00
3
42014033
ref: 3
DAMPER,RR HUB SHOCK,1
€ 85.50
4
601B6303ZZ
ref: 4
BEARING-BALL,#6303ZZC
€ 32.50
5
671B2565
ref: 5
O RING,65MM
€ 6.00
6
920331042
ref: 6
CIRCLIP,47M/M
€ 4.00
7
410351055
ref: 7
KZ550-C1
PANEL ASY,RR BRK,BLCK
€ 335.50
7
410351055
ref: 7
KZ550-C2
PANEL ASY,RR BRK,BLCK
€ 335.50
8
114G0828
ref: 8
BOLT-SMALL,8X28
€ 2.50
9
41049012
ref: 9
SPRING, BRKE SHOE
€ 6.00
10
41050017
ref: 10
CAM-BRAKE
€ 25.50
11
41051003
ref: 11
DUST SHIELD-BRAKE CAM
€ 2.50
12
41085004
ref: 12
INDICATOR,BRAKE SHOE
€ 10.00
13
42019012
ref: 13
SHOE, BRAKE (MCA)
€ 26.00
14
42029039
ref: 14
LEVER REAR BRAKE CAM
€ 37.00
15
420331021
ref: 15
COUPLING ASSY,RR HUB
€ 196.50
16
420361036
ref: 16
SLEEVE,RR HUB COUPLIN
€ 20.50
17
601B6206
ref: 17
BEARING-BALL,#6206C3
€ 19.50
18
92001161
ref: 18
BOLT,10X41
€ 3.00
19
42045005
ref: 19
NUT,10MM
€ 5.00
20
92050027
ref: 20
OIL SEAL
€ 13.50
21
410681086
ref: 21
AXLE,RR
€ 49.00
22
920271226
ref: 22
COLLAR,AXLE,RR,RH,L=2
€ 19.50
23
920271262
ref: 23
COLLAR,AXLE,RR,LH,L=1
€ 16.50
24
550D4035
ref: 24
PIN-COTTER,4.0X35
€ 1.00
25
92015055
ref: 25
NUT,16MM
€ 8.00
26
420411054
ref: 26
SPROCKET,REAR,38T
€ 43.00
27
920571050
ref: 27
CHAIN ASSY,DRIVE,100L
€ 82.50
28
920331044
ref: 28
CIRCLIP 62 M/M
€ 7.50
29
920221212
ref: 29
WASHER,LOCK
€ 4.00
up
