REAR WHEEL/HUB/BRAKE/CHAIN ('82-
KZ550C4 LTD 1983 USA CANADA

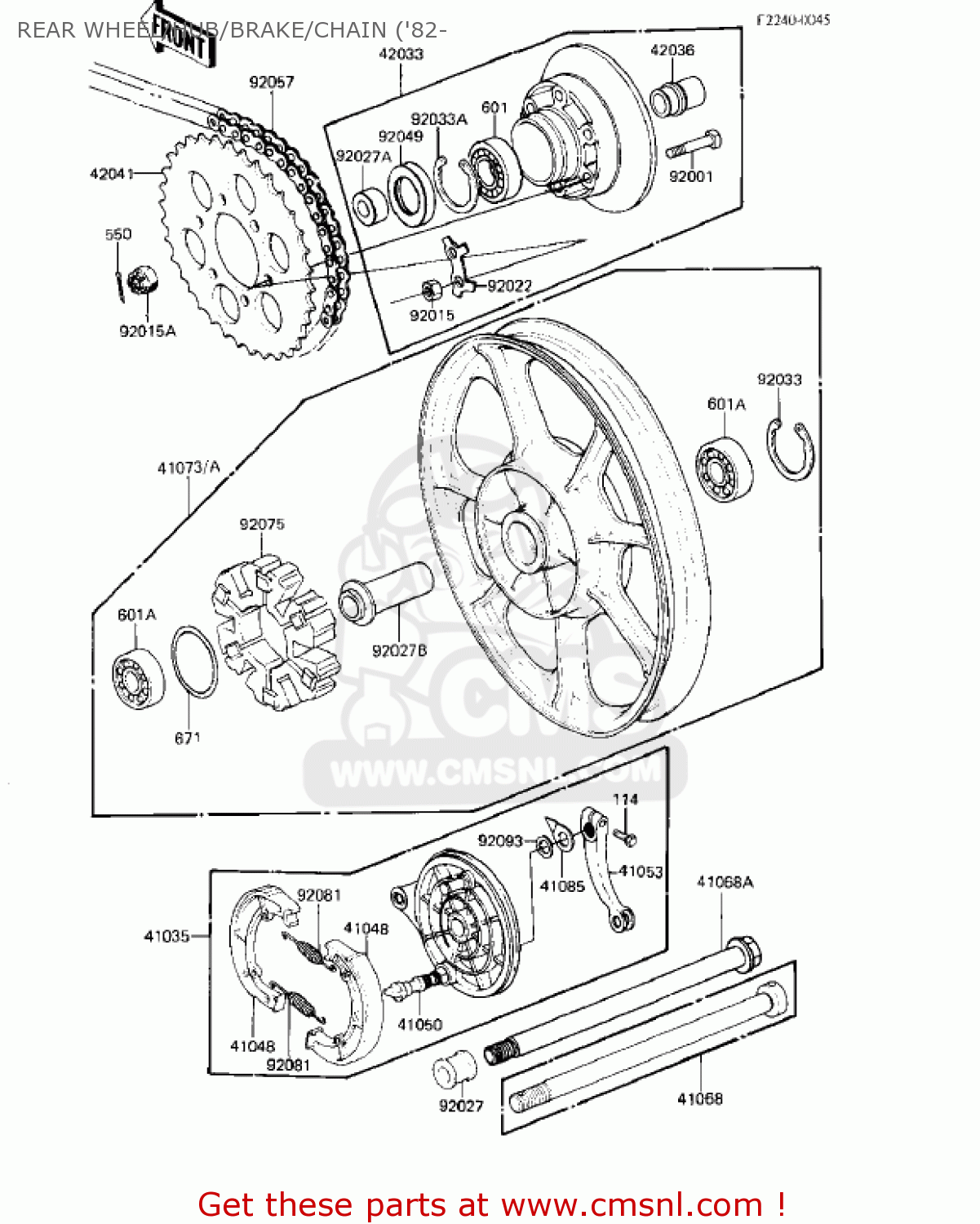

Rear wheel/hub/brake/chain ('82- diagram KZ550C4 LTD 1983 USA CANADA
REAR WHEEL/HUB/BRAKE/CHAIN ('82- KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
41035
410351055
ref: 41035
PANEL ASY,RR BRK,BLCK
€ 335.50
41048
42019012
ref: 41048
SHOE, BRAKE (MCA)
€ 26.00
41050
41050017
ref: 41050
CAM-BRAKE
€ 25.50
41053
42029039
ref: 41053
LEVER REAR BRAKE CAM
€ 37.00
41068
410681086
ref: 41068
AXLE,RR
€ 49.00
41068A
410681086
ref: 41068A
AXLE,RR
€ 49.00
41073
410731081
ref: 41073
SOLID WHEEL ASSY,REAR
€ 358.00
41073A
41073119021
ref: 41073A
WHEEL ASSY,RR,F,BLACK
€ 310.50
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42033
420331021
ref: 42033
COUPLING ASSY,RR HUB
€ 196.50
42036
420361036
ref: 42036
SLEEVE,RR HUB COUPLIN
€ 20.50
42041
420411054
ref: 42041
SPROCKET,REAR,38T
€ 43.00
92001
92001161
ref: 92001
BOLT,10X41
€ 3.00
92015
42045005
ref: 92015
NUT,10MM
€ 5.00
92015A
92015055
ref: 92015A
NUT,16MM
€ 8.00
92022
920221212
ref: 92022
WASHER,LOCK
€ 4.00
92027
920271226
ref: 92027
COLLAR,AXLE,RR,RH,L=2
€ 19.50
92027A
920271262
ref: 92027A
COLLAR,AXLE,RR,LH,L=1
€ 16.50
92027B
920271267
ref: 92027B
COLLAR,RR HUB,L=76
€ 10.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
€ 7.50
92049
92050027
ref: 92049
OIL SEAL
€ 13.50
92057
920571050
ref: 92057
CHAIN ASSY,DRIVE,100L
€ 82.50
92075
42014033
ref: 92075
DAMPER,RR HUB SHOCK,1
€ 85.50
92081
41049012
ref: 92081
SPRING, BRKE SHOE
€ 6.00
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
€ 2.50
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6206
ref: 601
BEARING-BALL,#6206C3
€ 19.50
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
€ 32.50
671
671B2565
ref: 671
O RING,65MM
€ 6.00
