FRONT FORK ('80-'81 C1/C2)
KZ550C4 LTD 1983 USA CANADA

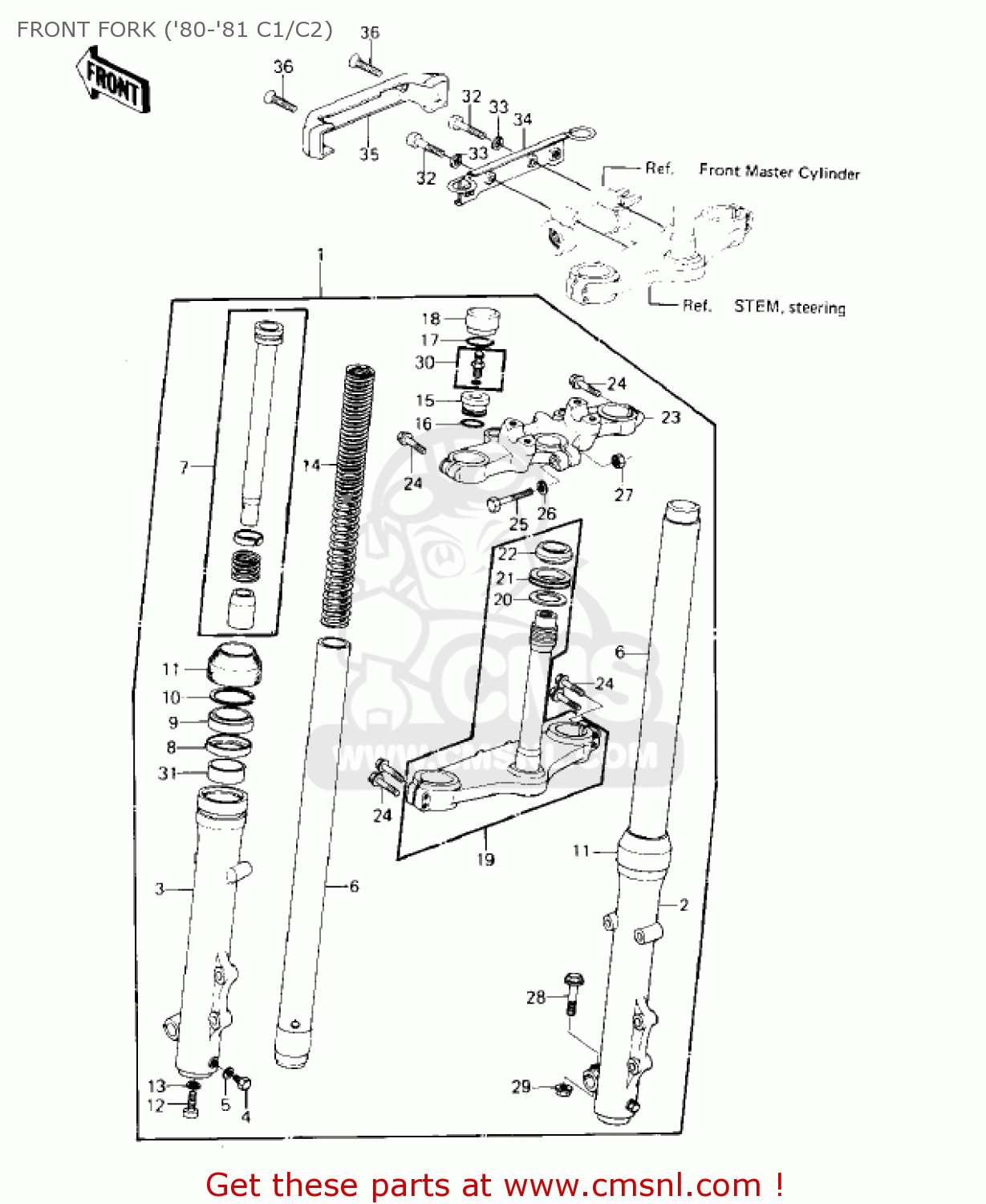

Front fork ('80-'81 c1/c2) diagram KZ550C4 LTD 1983 USA CANADA
FRONT FORK ('80-'81 C1/C2) KZ550C4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011152
ref: 1
FRONT FORK
€ 785.00
2
440061051
ref: 2
FORK OUTER TUBE,RH
€ 203.50
3
440051050
ref: 3
FORK OUTER TUBE,LH
€ 203.50
4
110B0608
ref: 4
BOLT-HEX HEAD,6X8
€ 0.50
5
44045047
ref: 5
GASKET,DRAIN PLUG (NAS)
€ 6.00
6
440131043
ref: 6
PIPE-FORK INNER
€ 159.00
7
440221024
ref: 7
CYLINDER,FORK
€ 87.50
8
920261038
ref: 8
SPACER,FORK
€ 6.50
9
920491063
ref: 9
KZ550-C1
SEAL-OIL,FORK
€ 14.50
9
920491063
ref: 9
KZ550-C2
SEAL-OIL,FORK
€ 14.50
10
920331055
ref: 10
RING,SNAP
€ 4.00
11
920931047
ref: 11
KZ550-C1
SEAL,DUST
€ 29.50
11
920931047
ref: 11
KZ550-C2
SEAL,DUST
€ 29.50
12
44041078
ref: 12
BOLT, FORK CYLINDER
€ 6.50
13
44045051
ref: 13
GASKET,FORK CYLINDER (NAS)
€ 4.00
14
440261060
ref: 14
SPRING,FORK INNER
€ 49.50
15
440291019
ref: 15
SEAT,FORK SPRING
€ 9.50
16
920551034
ref: 16
RING-O
€ 5.00
17
920331023
ref: 17
CIRCLIP
€ 3.00
18
110121136
ref: 18
CAP,FORK TOP
€ 4.50
19
440371013
ref: 19
HOLDER-FORK UNDER
€ 459.50
20
92022231
ref: 20
WASHER,PLAIN
€ 3.00
21
92056003
ref: 21
OIL SEAL,STEERING STM
€ 6.00
22
92047012
ref: 22
CONE-STRNG STM BRNG
€ 14.50
23
440391011
ref: 23
HOLDER-FORK UPPER
€ 232.50
24
920011149
ref: 24
BOLT,8X40
€ 7.50
25
920011064
ref: 25
BOLT,HEX HEAD,8X55
€ 6.00
26
461F0800
ref: 26
WASHER-SPRING,8MM
€ 0.50
27
920151124
ref: 27
NUT,LOCK,8MM
€ 3.50
28
920011136
ref: 28
BOLT,8X45
€ 7.00
29
920151055
ref: 29
NUT,8M/M
€ 3.00
30
161261025
ref: 30
VALVE,AIR
€ 19.00
31
440651011
ref: 31
BUSHING,FORK
€ 16.00
32
112G0640
ref: 32
BOLT-UPSET,6X40
€ 2.50
33
461F0600
ref: 33
WASHER-SPRING,6MM
€ 0.50
34
110341765
ref: 34
BRACKET,FR FORK COVER
€ 15.00
35
440331053
ref: 35
KZ550-C1
COVER-FORK
€ 36.00
35
440331054
ref: 35
KZ550-C2
COVER-FORK
€ 39.50
36
222C0518
ref: 36
SCREW-CSK-RD-CROS
€ 2.50
